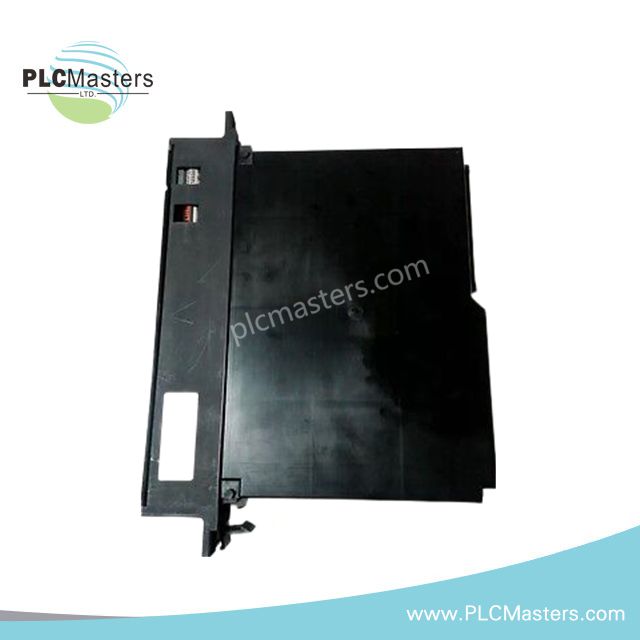

GE IC697CPX935-AA CPU Module

Overview

The GE IC697CPX935-AA is a high-performance CPU module from the Series 90-70 PLC family. It delivers reliable processing power for demanding automation and control tasks. This module supports flexible configuration and fast execution for industrial applications. It integrates easily with various I/O, networks, and VME systems.

Technical Specifications

Model Number: IC697CPX935-AA
Processor: Intel 80486DX4, 32-bit, 96 MHz
Memory:

• 1 MB battery-backed RAM for program and data

• 256 KB flash memory for configuration and storage

Performance:

• Boolean logic speed: 0.4 μs per function

• Supports up to 12,000 discrete I/O points

• Handles up to 8,000 analog I/O points

Communication:

• 3 serial ports (RS-232 and RS-485)

• Supports Ethernet, Modbus, and more

VME Compatibility:

• Supports VME standard C.1

Power Requirements:

• 5V bus: 3.1 Amps nominal

• Input Power: 24 V DC

Operating Temperature:

• 0°C to 60°C (with 70 CFM forced air)

• 0°C to 50°C (without forced air)

Clock Accuracy:

• Time-of-day: ±3.5 seconds/day

• Elapsed time: ±0.01%

Battery:

• Lithium (IC697ACC701 compatible)

• 5 years shelf life @ 20°C

• 6 months memory retention without power
