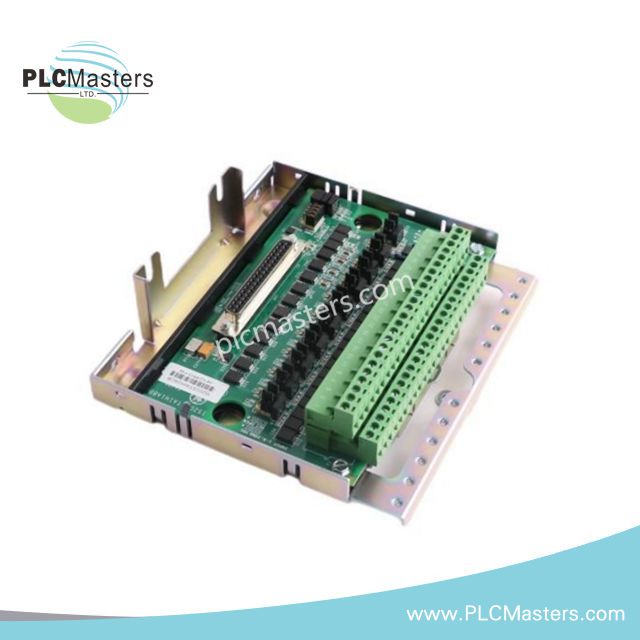

GE IS200STCIH2A Simplex Analog Input Terminal Board

Overview

The GE IS200STCIH2A is a Simplex Analog Input Terminal Board designed for Mark VIe and VIeS turbine control systems. It actively receives dry contact inputs from switches, relays, and sensors. Moreover, it supports simplex configurations and multiple excitation voltage levels, ensuring versatile industrial applications.

Technical Specifications

• System Compatibility: GE Mark VIe / VIeS control systems

• Input Channels: 24 dry contact inputs

• Input Current: First 21 channels: 2.5 mA; last 3 channels: 10 mA

• Excitation Voltage: Nominal 24 VDC (18.5–32 VDC); also supports 48 VDC and 125 VDC

• Input Filtering: Hardware filter with 4 ms response time

• Diagnostics: Detects excitation loss and non-responsive contacts

• Connector Type: 37-pin female D-type connector; 3-position female plug

• Mounting Style: DIN rail or flat panel mount

• Dimensions: 178 mm (H) × 101 mm (W) × 76 mm (D)

• Weight: 1.27 kg

• I/O Pack Compatibility: PAIC plug-in

• PCB Coating: Conformal coating (A-rated revision)

• Series: Mark VIe

• Technology: Surface-mount technology

• Number of Channels: 12

• Maximum Lead Resistance: 15 Ω

• Outputs: 24 VDC

• Operating Temperature: –30°C to +65°C
