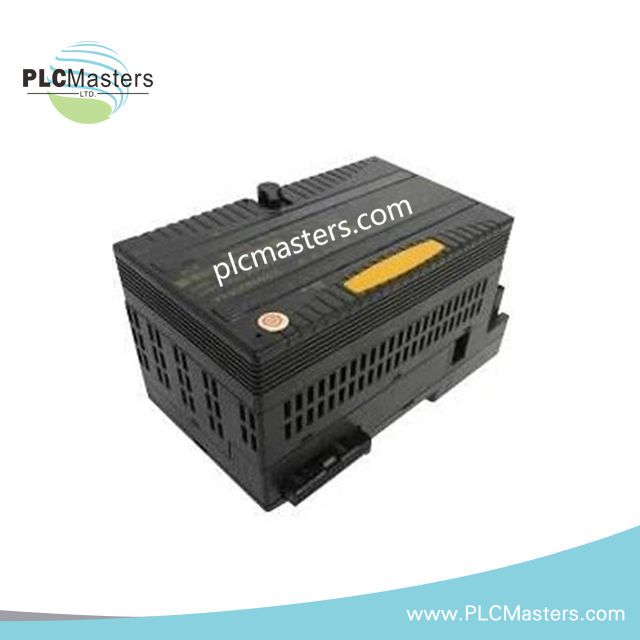

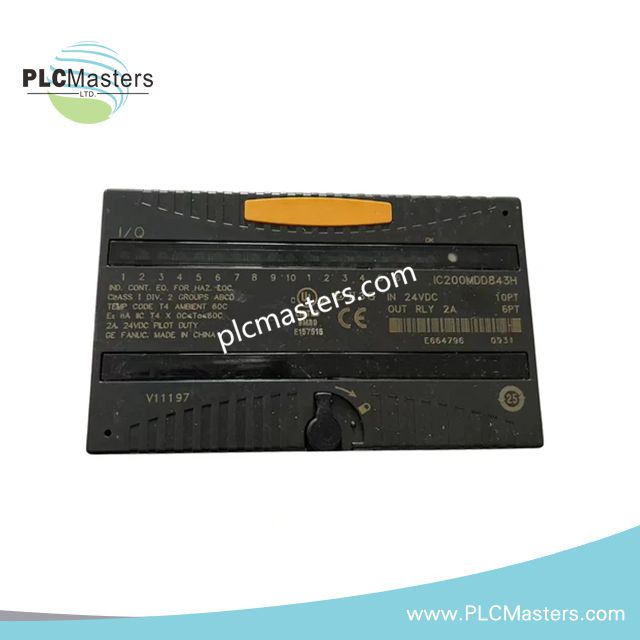

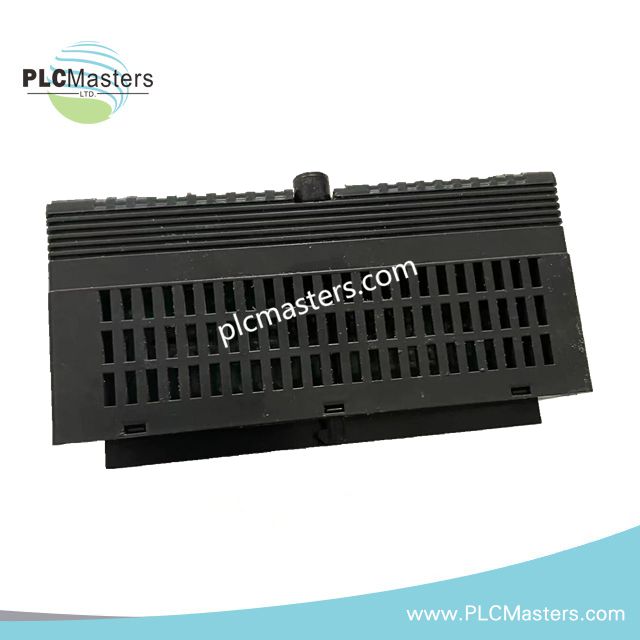

GE VersaMax IC200MDD843E Discrete Mixed I/O Module
$175.00
$565.00
Description
Product Description
The IC200MDD843E is a high-performance discrete mixed I/O module from the GE Fanuc VersaMax series. Designed for compact and flexible integration into VersaMax PLC systems, this module combines digital input and relay output channels into a single, space-saving device, ideal for precise control in manufacturing, process automation, and power systems.
Technical Features and Specifications
| Feature | Specification |
|---|---|
| Model Number | IC200MDD843E |
| Module Type | Discrete Mixed I/O |
| Total I/O Points | 16 (10 inputs + 6 relay outputs) |
| Digital Inputs | 10 sourcing-type, positive logic |
| Relay Outputs | 6 SPST relays, rated up to 8 A per point |
| Maximum Power Consumption | 190 mA (with active I/O points) via backplane |
| Switching Frequency | 20 cycles/min (for inductive loads) |
| Input Response Time | ≤10 ms |
| Relay Coil | Fixed with moving armature |
| Contact Material | Silver alloy |
| Terminals | 18 Type A + 1 Type B (shorting bar compatible) |
| Weight | 0.22 kg |
Key Advantages
-
Mixed I/O design consolidates inputs and outputs to reduce wiring and cabinet space.
-
High-capacity relay outputs suitable for medium to high-current loads.
-
Fast input response time ensures reliable control and real-time automation performance.
-
Industrial-grade silver alloy contacts guarantee long-term durability.
-
Seamless compatibility with GE Fanuc VersaMax PLC systems for scalable automation setups.
Application Scenarios
The IC200MDD843E module is widely used in:
-
Manufacturing lines with compact PLC racks
-
Process control systems requiring mixed I/O configurations
-
Power distribution or control panels with high-current relay loads
-
Automated machinery where space efficiency and reliable switching are critical
FAQ
Q: Can this module handle inductive loads on the relay outputs?
A: Yes, relay outputs support up to 20 cycles per minute for inductive loads.
Q: Does it require external power?
A: The module draws power directly from the backplane. External power is optional for extended output loads.
Q: How does this module differ from IC200MDD841E?
A: The IC200MDD843E provides 6 relay outputs instead of 4, allowing higher current switching and more flexibility in compact installations.
