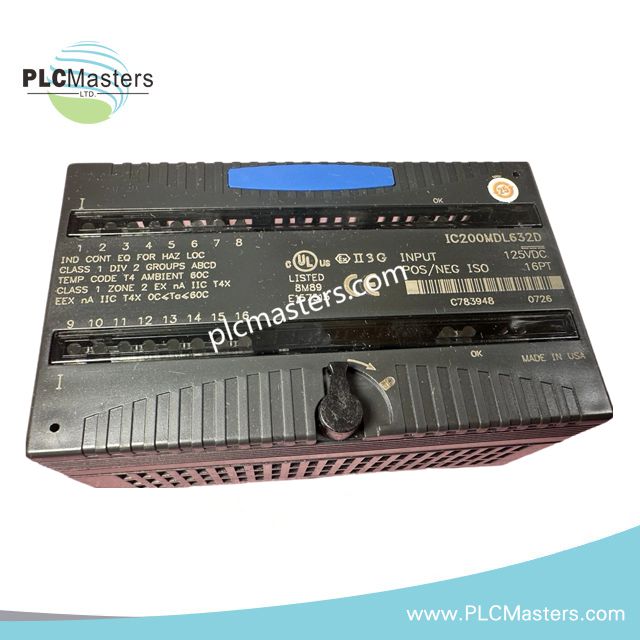

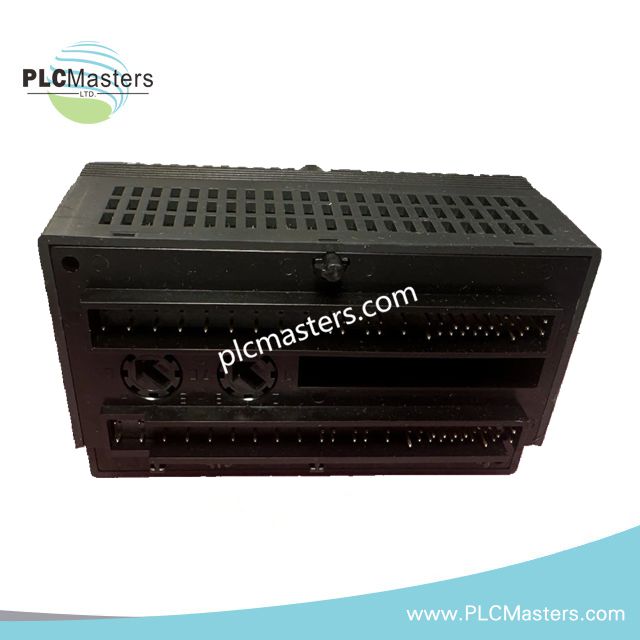

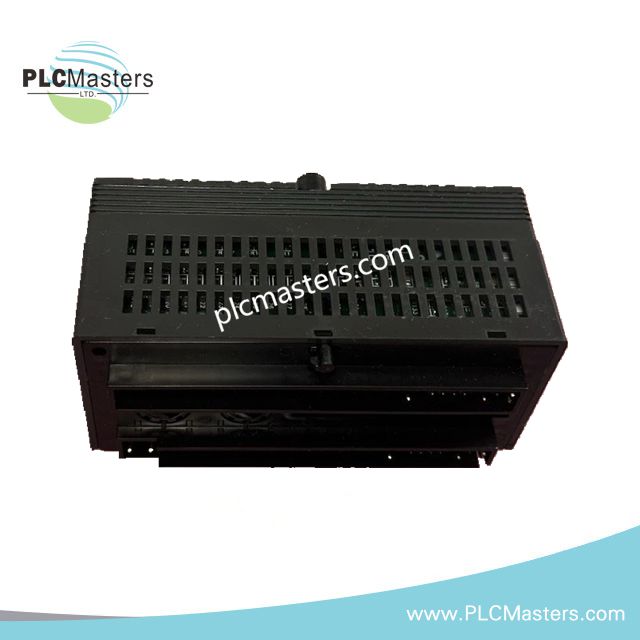

GE VersaMax IC200MDL632D Discrete Input Module
$175.00
$565.00
Description
Product Description
The IC200MDL632D is a high-density discrete input module from the GE Fanuc VersaMax series, engineered for reliable digital signal acquisition in industrial control systems. Designed with 16 isolated input channels, it supports 125 VDC positive and negative logic signals, making it suitable for applications with elevated DC voltage requirements.
Equipped with optical isolation, the module safeguards the PLC system from voltage spikes and electrical noise, ensuring long-term operational stability. Its compact design allows seamless integration into existing VersaMax racks, providing flexible I/O expansion for medium to large-scale automation setups.
Key Features and Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | IC200MDL632D |
| Module Type | Discrete Input Module |
| Input Channels | 16 isolated points |
| Nominal Voltage | 125 VDC |
| Input Voltage Range | 0–150 VDC |
| Input Current | 1.7 mA at 125 VDC, 2.2 mA at 150 VDC |
| Backplane Current Draw | Maximum 80 mA |
| Input Logic | Supports positive and negative logic |
| Isolation | Optical isolation per channel for system protection |
| Mounting | VersaMax rack compatible |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Response Time | 1–2 ms per channel |
Applications
The IC200MDL632D is ideal for acquiring digital input signals from devices such as push buttons, limit switches, and relay contacts. Typical use cases include power generation facilities, process control systems, manufacturing lines, and any industrial automation environment where high-voltage DC inputs are present.
FAQ
Q: Can this module handle AC inputs?
A: No, it is designed exclusively for DC input signals within the specified voltage range.
Q: Can it be used alongside other VersaMax I/O modules?
A: Yes, it integrates seamlessly with other VersaMax input and output modules for scalable system expansion.
Q: What protection features does it provide?
A: Each input channel is optically isolated to prevent voltage spikes and electrical interference from affecting the PLC.
