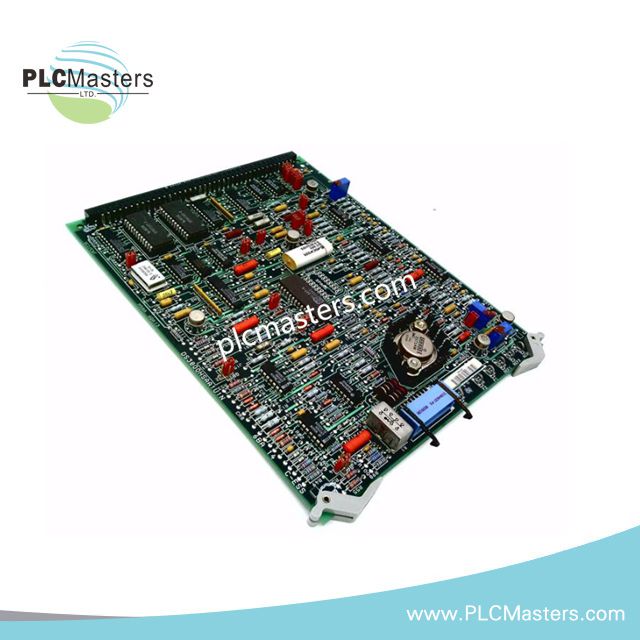

General Electric DS3800HSAA1U1N Servo Amplifier Board

The DS3800HSAA1U1N is a modular assembly associated with General Electric's Mark IV Speedtronic turbine control system. Identified as an HSAA functional assembly, the board includes an analog-to-digital converter, a 34-pin connector, three trimmer resistors, and a socket for an EEPROM module. The EEPROM socket is supplied empty according to the provided source, so firmware configuration and adjustment settings require attention during replacement.

Hardware Configuration

The board combines analog signal conversion and adjustable circuit elements in a modular assembly. Its documented hardware includes:

• One 34-pin connector for board connections.
• One socket for an electrically erasable programmable read-only memory (EEPROM) module.
• An analog-to-digital converter.
• Three trimmer resistors for circuit adjustment.
• A heat sink and a metal front faceplate.
• A modular connector at one end and retention levers at the other.

The source identifies the board as a servo amplifier board, but does not provide its electrical input range, output characteristics, or amplifier ratings. These values should be confirmed before selecting the assembly for a specific control circuit.

Technical Specifications

EEPROM and Replacement Configuration

The EEPROM socket is reported to be unpopulated on replacement boards. The required programming must therefore be addressed before the board is returned to service.

• Existing program: If the original board's EEPROM is serviceable and the application requires the same program, its use may preserve the existing configuration.
• Updated program: If a firmware issue is suspected, verify the appropriate replacement code and version before programming another EEPROM.
• Adjustment settings: Record the original trimmer resistor positions and follow the applicable calibration procedure. Do not assume that visual alignment alone establishes correct calibration.

The correct EEPROM type, programming procedure, and calibration tolerances are not specified in the supplied data. Confirm these details against documentation for the installed control system before commissioning.

Installation and Handling Considerations

The modular connector and retention levers are relevant when identifying the board's mechanical interface. The 34-pin connector also needs to match the installed cable and associated circuitry.

Before replacement, compare the complete part number, board layout, connector arrangement, EEPROM configuration, and trimmer settings with the removed assembly. Do not assume that another DS3800HSAA variant is interchangeable solely because it shares the same functional acronym.

Frequently Asked Questions

Q: Does the DS3800HSAA1U1N include a programmed EEPROM?

A: The supplied product information states that the EEPROM socket is empty on a replacement board. Confirm the delivered unit's actual configuration and obtain the correct program before installation.

Q: Can the DS3800HSAA1U1N replace another DS3800HSAA board variant?

A: Not on the basis of the shared HSAA designation alone. Verify the complete ordering number and the applicable hardware, firmware, and application requirements before substitution.

Q: What should be checked before commissioning the replacement board?

A: Verify the EEPROM program, connector and cable arrangement, and required trimmer settings. Perform calibration and functional checks according to the applicable Mark IV maintenance procedure; the available source does not specify numerical calibration tolerances.
