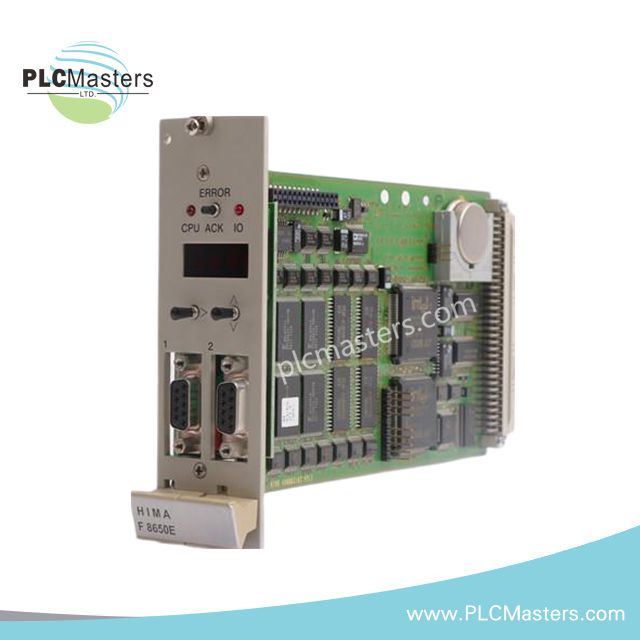

HIMA F8650E 98.4865065 Central Module

Overview

The HIMA F8650E is a central module designed for safety-critical industrial applications. It is engineered for high availability and reliability in demanding environments.

Technical Specifications

• Model Number: F8650E

• Serial Number: 98.4865065

• Type: Central Module

Processor

• Dual clock-synchronized microprocessors

• Intel 386EX with a 32-bit architecture

• Clock frequency: 25 MHz

Memory

• Flash-EPROM (Operating System): 1 MB

• Flash-EPROM (User Program): 512 KB

• SRAM (Data Store): 256 KB

Communication Interfaces

• Two RS-485 serial interfaces (electrically isolated)

• Ethernet, CAN, and USB interfaces (depending on configuration)

• Diagnostic display: 4-digit alphanumeric matrix for system monitoring

Safety Features

• Safety-related watchdog with output (24 V, loadable up to 500 mA, short-circuit proof)

• Compliant with SIL 3 according to IEC 61508

• Error Switch-off: Fail-safe watchdog ensures reliability

Environmental Specifications

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Humidity: Up to 95% non-condensing

Power Supply and Dimensions

• Operating Voltage: 24 VDC

• Operating Data: 5 V DC / 2000 mA

• Dimensions: 4.1 cm x 18.7 cm x 12.8 cm

• Weight: 0.34 kg
