Description

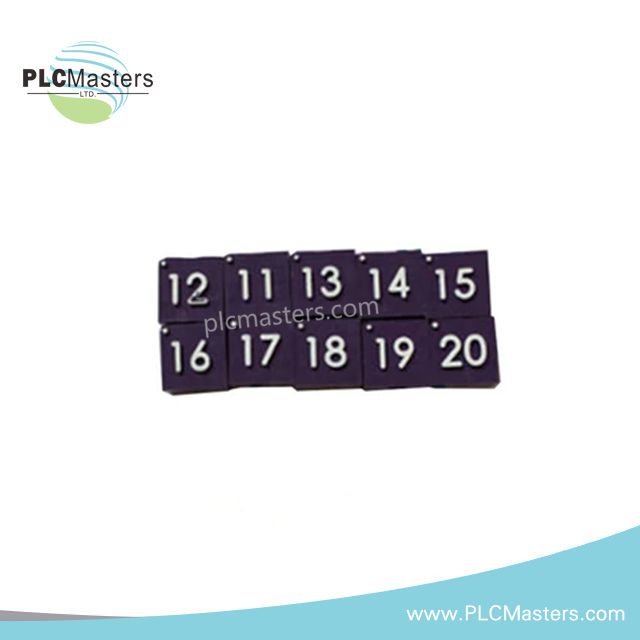

Configured for hardware configuration and circuit selection in Honeywell industrial automation equipment, the Honeywell 51153818-103 (51153818-103 Jumper Kit) provides removable electrical connections through violet jumper wires. The kit is used where jumper placement is specified for function selection, configuration, or communication setup.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51153818-103 |
| Brand | Honeywell |
| Type | Jumper Kit |
| Jumper Type | Violet jumpers |
| Function | Hardware configuration and circuit selection |
| Compatibility | Honeywell industrial automation equipment |
| Weight | 0.1 kg |
| Power Consumption | Passive jumper component; no separate power consumption specified |
Jumper Configuration and Electrical Selection
The 51153818-103 uses violet jumper wires to establish removable electrical connections at designated configuration points. Jumper placement can determine hardware configuration or activate specified circuit functions. The exact wire gauge, length, and supported jumper positions must be taken from the applicable Honeywell equipment documentation before installation.
For Honeywell control hardware, jumper wiring should remain separated from signal conductors unless the equipment documentation specifies a common routing arrangement. The jumper must be installed only across the designated terminals or header positions to prevent unintended circuit continuity.
Frequently Asked Questions (FAQ)
Q: Is the 51153818-103 an active electronic module?
A: No. It is a jumper kit consisting of violet jumper wires and does not contain an independent powered electronic circuit.
Q: Can the jumper positions be selected without consulting the equipment documentation?
A: No. Jumper positions are hardware-specific and should follow the configuration information for the Honeywell equipment in which the kit is installed.
Q: Are the wire gauge and jumper length specified by the supplied data?
A: No. The supplied information identifies the jumper color but does not provide exact wire gauge or length.
Field Installation Guidelines
- Verify the equipment model and applicable wiring or configuration drawing before installation.
- De-energize the relevant equipment when jumper installation requires access to exposed terminals, headers, or circuit boards.
- Install each jumper only at the designated connection points.
- Keep jumper wiring clear of terminals or conductors not identified in the configuration documentation.
- Maintain existing cable segregation and shielding practices where jumper wiring is routed near analog, communication, or low-level signal circuits.
- Inspect the jumper and connection points for loose contacts, damaged insulation, or incorrect placement before restoring power.
- Confirm the resulting hardware configuration against the equipment documentation after installation.
Features
We welcome bulk orders and have a minimum order quantity of just one unit.
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
