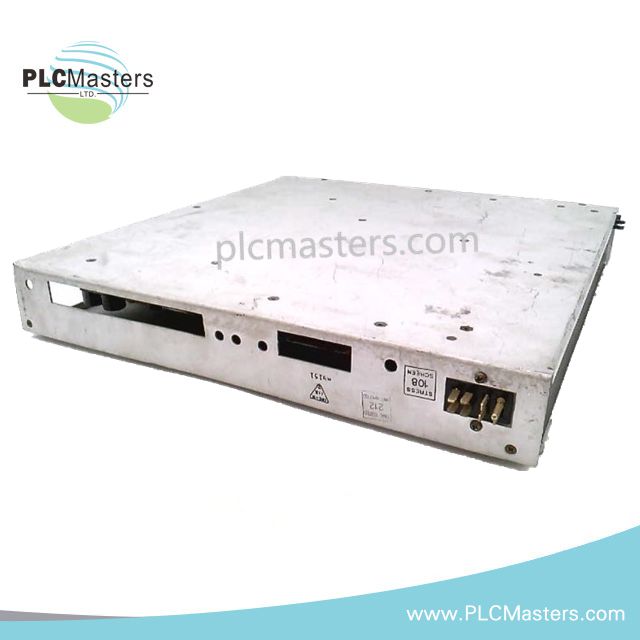

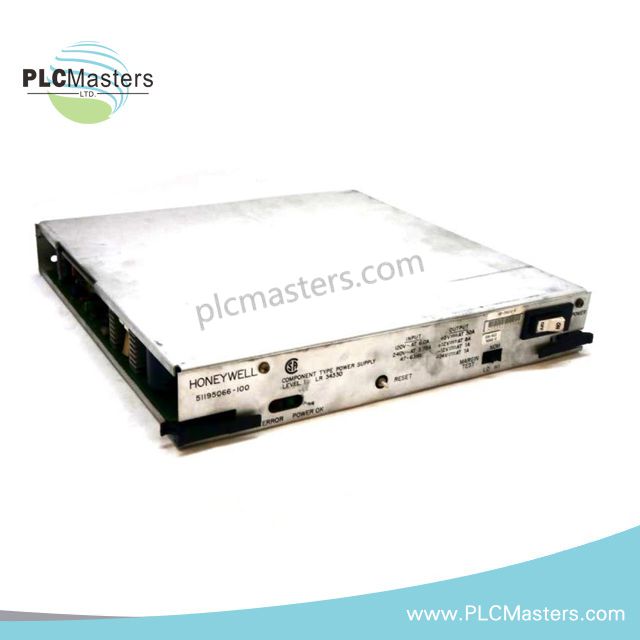

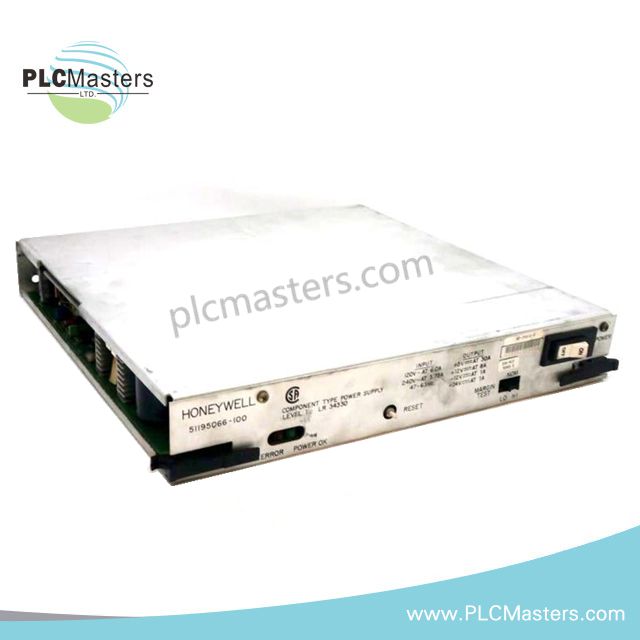

Honeywell 51195066-100 Five-Slot Power Supply
$209.00
$450.00
Description
Overview
The Honeywell 51195066‑100 Five‑Slot Power Supply provides stable, regulated DC power for Honeywell TDC 3000 and TPS/Experion distributed control systems. Designed for industrial-grade environments, it supports up to five modules in a single chassis, ensuring reliable operation for controllers, communication interfaces, and I/O electronics.
Built for mission-critical automation, it minimizes voltage ripple and features robust safeguards against overloads, thermal faults, and electrical disturbances, ensuring continuous operation in demanding process environments.
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Input Voltage | 120/240 V AC (model-dependent) |
| Input Frequency | 47–63 Hz |
| Input Current | 6.0 A (120 V), 3.75 A (240 V) |
| Output Voltages | +5 V DC @ 30 A (logic) +12 V DC @ 8 A (auxiliary) –12 V DC @ 1 A (signal reference) +24 V DC @ 1 A (optional subsystem power) |
| Regulation | ±1 % typical, low-noise output |
| Protection Features | Over-voltage, over-current, thermal shutdown |
| Module Capacity | Supports up to five system modules simultaneously |
Mechanical Details
| Feature | Specification |
|---|---|
| Form Factor | Five-slot rack-mounted chassis |
| Cooling | Convection or fan-assisted (cabinet-dependent) |
| Connectors | Honeywell keyed power distribution |
| Weight | 8.53 lbs |
| Mounting | Standard Honeywell system rack installation |
Environmental Ratings
-
Operating Temperature: 0 °C to 55 °C (cabinet conditions)
-
Humidity: Non-condensing, industrial rated
-
EMI/RFI: Shielded to ensure signal integrity
Applications
-
Powering TDC 3000 / TPS controller nodes
-
Supplying communication interface modules
-
Providing auxiliary power to I/O and instrumentation modules
FAQ
Q: Is this compatible with both TDC 3000 and Experion modules?
A: Yes, Honeywell 51195066‑100 supports both TDC 3000 and legacy TPS/Experion modules designed for five-slot chassis.
Q: Does the unit require forced cooling?
A: Cooling depends on cabinet configuration; some rely on convection, while others may use fan-assisted airflow.
Q: What protections does this power supply include?
A: It features over-voltage, over-current, and thermal shutdown protections for connected modules.
