Description

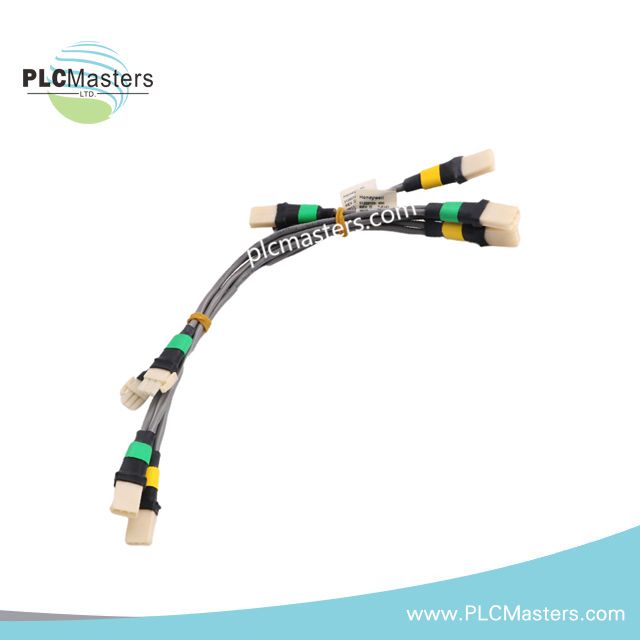

Configured for interconnection of I/O modules in Honeywell Series C automation systems, the Honeywell 51202329-615 (51202329-615 Series C I/O Link Cable) provides a 1 meter physical link with eight drops and a 120 VDC rating. The cable uses a 4-inch (102 mm) pitch for the specified I/O connection arrangement and has a listed weight of 0.2 kg.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-615 |
| Brand | Honeywell |
| Product Type | Series C I/O Link Cable |
| System | Honeywell Series C |
| Application | I/O module interconnection |
| Number of Drops | 8 |
| Pitch | 4 inch (102 mm) |
| Voltage Rating | 120 VDC |
| Cable Length | 1 m (39 inch) |
| Weight | 0.2 kg |
| Dimensions | 1 m cable length; 102 mm pitch |
Series C I/O Link Configuration
The 51202329-615 is a physical I/O link cable for connecting multiple I/O modules within a Honeywell automation system. The specified configuration supports eight drops with a 4-inch (102 mm) pitch. The 120 VDC rating defines the supplied electrical rating for the cable assembly.
The 1 meter cable length establishes the available interconnection distance for the specified assembly. Installation should maintain the intended drop sequence and avoid routing conditions that can introduce mechanical stress or interfere with adjacent wiring.
Frequently Asked Questions
Q: How many I/O drops does the 51202329-615 support?
A: The specified cable has 8 drops.
Q: What is the cable pitch?
A: The pitch is 4 inch (102 mm).
Q: Is the 51202329-615 an active electronic module?
A: No. It is specified as a Series C I/O Link Cable and does not have a separately stated power-consumption value.
Field Installation Guidelines
- Verify the cable part number before connection to the Series C I/O assembly.
- Confirm the required 8-drop arrangement and 4-inch (102 mm) pitch before mechanical installation.
- Keep the cable routed according to the equipment layout and avoid excessive bending, pulling, or twisting.
- Separate the I/O link cable from high-current power conductors where practical to reduce electrical interference.
- Maintain connector and termination areas free from contamination and mechanical strain.
- Confirm the specified 120 VDC electrical rating is consistent with the installed circuit.
- Use the system installation documentation for grounding, shielding, and termination requirements where these are defined by the specific Series C hardware configuration.
Features
We welcome bulk orders and have a minimum order quantity of just one unit.
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
