Description

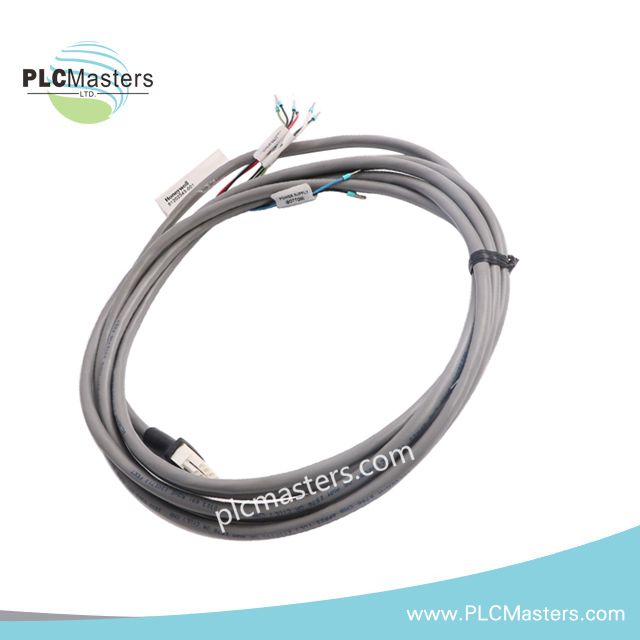

Configured for power supply status indication in Honeywell industrial automation systems, the Honeywell 51202343-001 (51202343-001 Power Supply Status Indication Cable) provides a dedicated physical signal path between the monitored power supply and its status indication circuit. The cable is specified with a 1 m length, machined brass gold-plated connectors, and a resistance below 0.1 ohms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202343-001 |
| Brand | Honeywell |
| Type | Power Supply Status Indication Cable |
| Dimensions | 1 m cable length; other dimensions not specified |
| Operating Temp | -40 deg C to +85 deg C |
| Conductor Material | Copper alloy |
| Connector Material | Machined brass |
| Connector Plating | Gold plated |
| Color | Silver |
| Resistance | Less than 0.1 ohms |
| Signal Function | Power supply status indication |
Power Supply Status Signal Path
The 51202343-001 is a passive cable assembly used to carry power supply status information between the associated hardware points. Its copper-alloy conductor provides the specified low-resistance path, while the machined brass connectors provide the mechanical termination interface.
The connector contacts are gold plated to define the contact surface of the mating interface. The specified resistance is less than 0.1 ohms. The cable is rated for operation from -40 deg C to +85 deg C.
Unlike a process instrumentation cable carrying a defined 4-20 mA HART loop, this part is identified in the supplied data specifically as a power supply status indication cable. No HART, FOUNDATION Fieldbus, Profibus PA, or channel-isolation function is specified for this model.
Frequently Asked Questions
Q: What is the primary function of the 51202343-001?
A: It provides the physical cable connection used for power supply status indication.
Q: What cable length is specified?
A: The supplied specification lists a length of 1 m.
Q: What environmental temperature range is specified?
A: The operating temperature range is -40 deg C to +85 deg C.
Field Installation Guidelines
- Verify the cable model and connector configuration against the mating power supply and status indication hardware before installation.
- Route the cable away from high-current power conductors where practical to reduce exposure to electrical interference.
- Avoid excessive bending, tensile loading, or mechanical stress at the connector transition points.
- Ensure both mating connectors are fully seated and mechanically secured before energizing the associated equipment.
- Keep connector contact surfaces clean and free from contamination during installation.
- Where shielded system wiring is installed adjacent to the cable, follow the grounding and segregation requirements specified by the associated Honeywell system documentation.
- Do not modify the cable length or connector termination unless the applicable system documentation explicitly permits field modification.
