Description

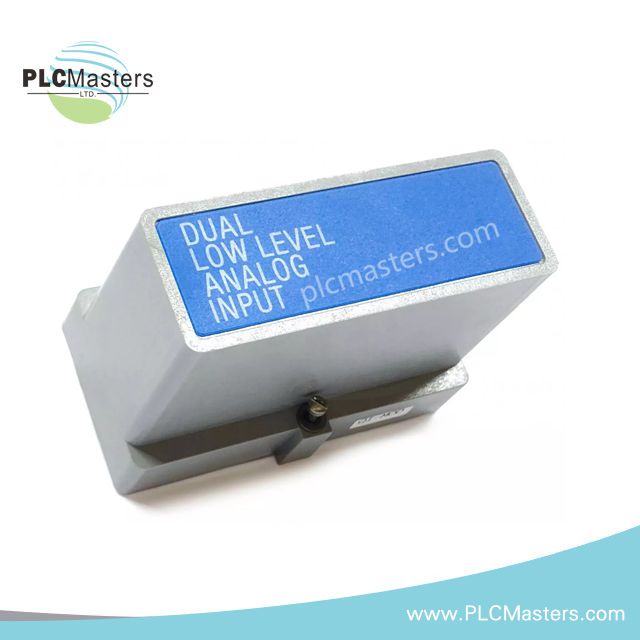

The Honeywell 51304085-100, also cataloged as the 51304085-100 Dual Low-Level Analog Input Module, acquires analog voltage signals for processing by an industrial control system. It supports a 0 to 10 VDC input range, 12-bit resolution, and a specified sampling rate of 100 Hz. The module operates from a 24 VDC power supply and has a stated full-scale accuracy of +/-0.1%.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51304085-100 |
| Brand | Honeywell |
| Product Type | Dual Low-Level Analog Input Module |
| Input Range | 0 to 10 VDC |
| Resolution | 12 bits |
| Accuracy | +/-0.1% of full scale |
| Sampling Rate | 100 Hz |
| Power Supply | 24 VDC |
| Weight | 0.27 lbs |
Analog Signal Acquisition and Resolution
The 51304085-100 converts incoming analog voltage measurements into digital values for control-system processing. Its 12-bit resolution provides 4,096 discrete quantization levels across the specified 0 to 10 VDC input range. The nominal voltage increment per quantization level is approximately 2.44 mV, excluding analog front-end effects and conversion errors.
The specified 100 Hz sampling rate corresponds to a nominal sampling interval of 10 ms. The stated +/-0.1% full-scale accuracy corresponds to +/-10 mV over a 10 V full-scale span, subject to the manufacturer's measurement conditions and accuracy definition.
Frequently Asked Questions (FAQ)
Q: What input signal range does the Honeywell 51304085-100 support?
A: The provided specifications state an analog voltage input range of 0 to 10 VDC. Confirm sensor output compatibility and signal common requirements before wiring.
Q: What is the module's nominal voltage resolution?
A: With 12-bit resolution over a 10 V span, the nominal quantization increment is approximately 2.44 mV per count. This value does not represent total measurement accuracy.
Q: What power supply does the module require?
A: The supplied data specifies 24 VDC. The current consumption, power dissipation, and terminal polarity are not provided and should be verified against the manufacturer's documentation.
Field Installation Guidelines
- Verify the module part number and compatibility with the installed Honeywell control-system hardware before mounting.
- Confirm the specified 24 VDC supply and observe the manufacturer's terminal assignments and polarity requirements.
- Check that each sensor's voltage output remains within the 0 to 10 VDC input range.
- Route analog signal wiring separately from motor, contactor, and other high-noise power wiring where practical.
- Apply cable shielding and shield grounding according to the system grounding design and manufacturer instructions. Avoid unintended ground loops.
- Verify signal common connections and check for ground-potential differences before connecting field instruments.
- Inspect terminal tightness, wiring insulation, and connector engagement before energizing the system.
- Validate channel readings against a known voltage source during commissioning. Confirm scaling and displayed engineering values in the control application.
- Obtain the manufacturer's installation documentation for operating temperature, mounting requirements, isolation characteristics, and any hot-swap restrictions before installation.
Features
We welcome bulk orders and have a minimum order quantity of just one unit.
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
