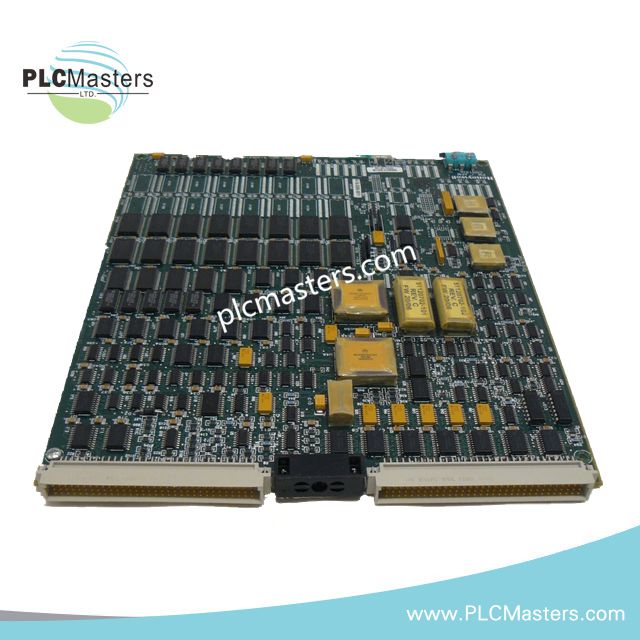

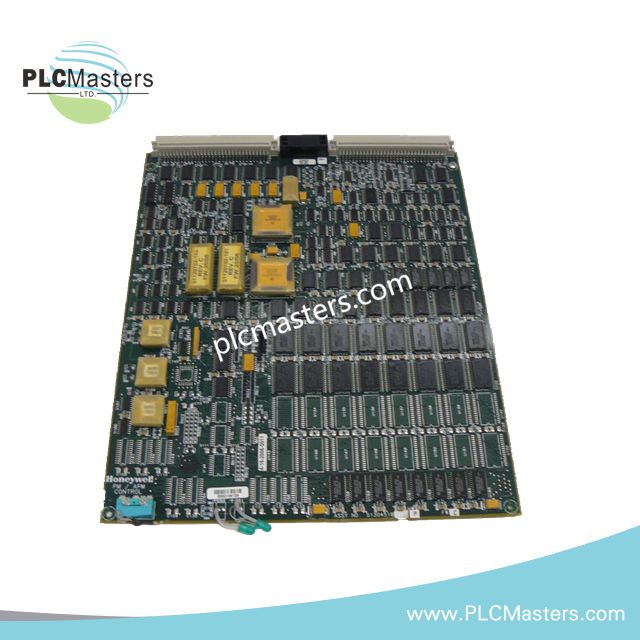

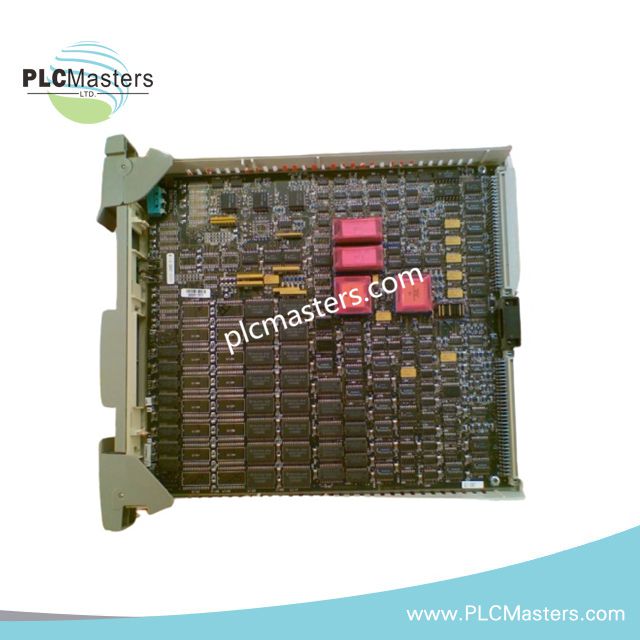

Honeywell 51304518-150 Control Module | TDC 3000 I/O Board
$209.00
$450.00
Description
Overview
The Honeywell 51304518‑150 is a high-performance control module designed for TDC 3000 distributed control systems. It features 16 channels and supports both HART and non-HART field devices. Providing stable 24 VDC input/output operation, the module is engineered for reliability in harsh industrial environments, including chemical processing, power generation, and advanced automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Control Module |
| Model | 51304518‑150 |
| System Compatibility | Honeywell TDC 3000 DCS |
| Channels | 16 channels, supports HART and non-HART devices |
| Input Voltage | 24 VDC (some versions: AC 85–264 V / DC 24 V) |
| Output Voltage | 24 VDC |
| Communication Interfaces | Ethernet, RS‑485 |
| Memory | 1 MB Flash, 8 KB RAM |
| Operating Temperature | 0 °C to 60 °C (some versions –40 °C to +85 °C) |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5%–95% non-condensing |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, ISO 9001 |
| Dimensions | 176 mm × 89 mm × 25 mm |
| Mounting | DIN rail |
| Weight | 1.33 lbs |
Applications
This module acts as an I/O extender, enhancing communication between FTAs and I/O processors. It is ideal for environments with high temperature, humidity, vibration, or other demanding conditions. Typical applications include chemical plant process control, power plant automation, complex industrial automation systems, and advanced monitoring networks.
FAQ
Q: Can this module support both HART and non-HART devices simultaneously?
A: Yes, 51304518‑150 fully supports mixed HART and non-HART device connections.
Q: What is the maximum operating temperature for the module?
A: Standard operating temperature is 0 °C–60 °C. High-end versions extend to –40 °C to +85 °C.
Q: Can this module directly replace older TDC 3000 I/O extender modules?
A: Yes, but verify channel count and interface compatibility before installation.
Comparison with Similar Models
Compared to the Honeywell 51304517 series, the 51304518‑150 offers larger memory capacity, wider temperature tolerance, and Ethernet communication support, making it suitable for complex system upgrades or expansions.
