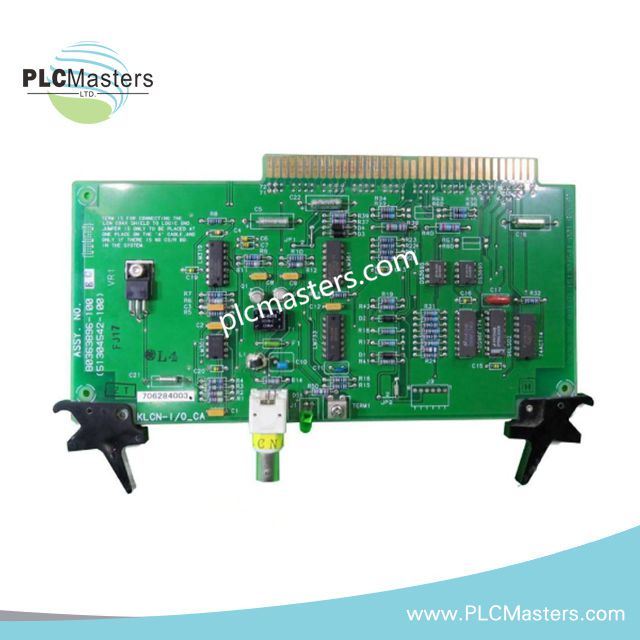

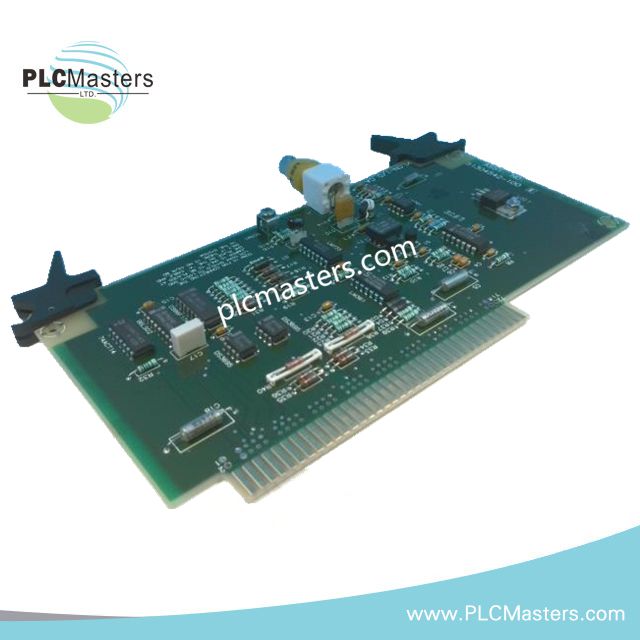

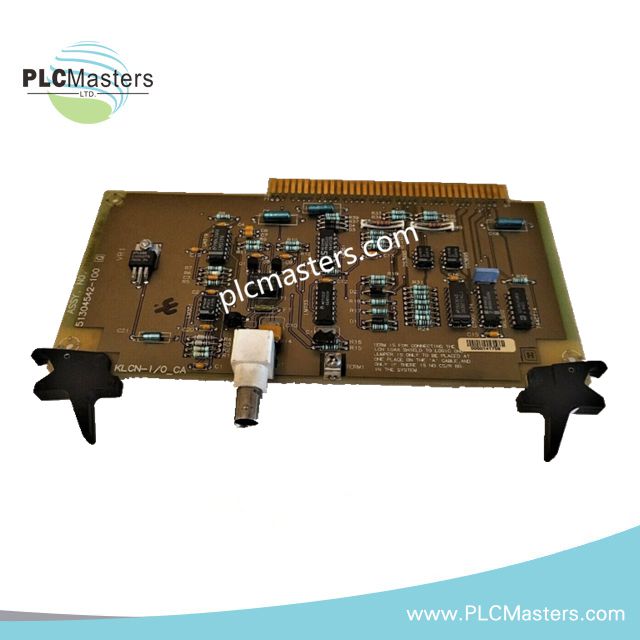

Honeywell 51304542-100 LCN A Cable Interface Converter Board

Configured for physical-layer signal interfacing between LCN A-cable connections and internal network components in the Honeywell TDC 3000 Distributed Control System (DCS), the Honeywell 51304542-100 (51304542 LCN A Cable Interface Converter Board) provides signal conversion for Local Control Network communication. The board operates as a network interface component rather than a controller or I/O processor and receives DC power through the system backplane.

Hardware Specifications

LCN Physical-Layer Signal Interface

The 51304542-100 provides the interface between LCN A-cable connections and compatible internal network components in the TDC 3000 architecture. Its function is limited to network signal interfacing and conversion; it does not execute application logic or process field I/O signals.

When integrating the board into an existing LCN network, verify cable termination, connector condition, board revision compatibility, and the designated backplane position. Network communication should be checked after installation to confirm correct connectivity with the associated system nodes.

Frequently Asked Questions

Q: Does the 51304542-100 execute controller logic or process I/O signals?

A: No. It is an LCN A-cable interface converter board. Controller logic execution and I/O processing are handled by their respective system components.

Q: What power source does the board use?

A: The board receives DC power through the system backplane. The specific supply voltage and current consumption are not provided in the available specifications.

Q: Can the board be installed in a non-LCN network architecture?

A: The specified application is the Honeywell TDC 3000 LCN A-cable network. Compatibility with other network architectures is not established by the available product data.

Field Installation Guidelines

• Confirm that the target chassis and backplane support the 51304542-100 board and its hardware revision.
• Isolate the applicable equipment from power in accordance with site procedures before handling or installing the PCB.
• Use appropriate electrostatic discharge (ESD) precautions when handling the board and its connectors.
• Inspect the PCB, connector contacts, and mating cable interfaces for physical damage, contamination, or loose connections.
• Route LCN communication cables separately from high-voltage and high-current conductors where practicable to reduce electrical interference.
• Maintain cable shielding and grounding arrangements according to the system installation documentation. Avoid introducing unintended ground paths.
• Seat the board securely in the designated position and verify connector engagement before restoring power.
• After installation, check network status and communication with connected system nodes. Investigate communication faults before returning the equipment to service.
