Description

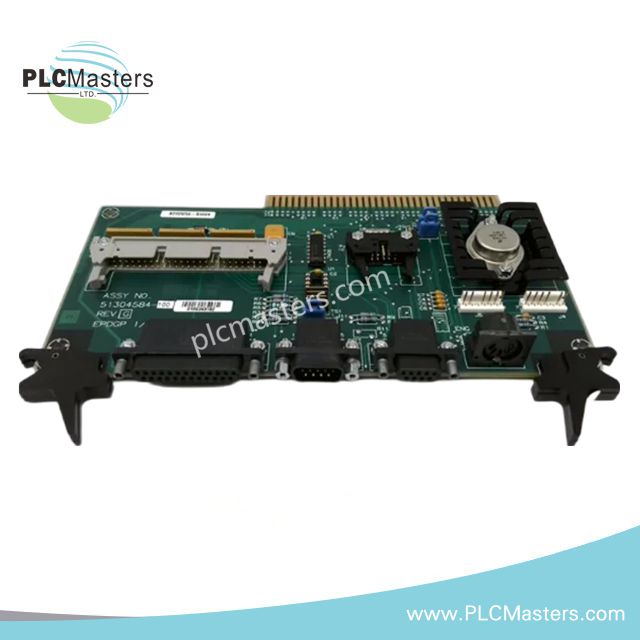

The Honeywell 51304584-200 is an I/O Control Board identified in the supplied product information for use with Honeywell EPDG and EPDG2 peripheral interface systems. It is specified for a 24 VDC power supply and panel mounting, with a multi-connector interface for electrical connections. Its environmental and mechanical specifications are relevant when checking replacement-board requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 51304584-200 |
| Brand | Honeywell |
| Product Type | I/O Control Board |
| Power Supply | 24 VDC |
| Mounting Type | Panel mount |
| Connector Type | Multi-connector interface |
| Dimensions | 17.8 x 7.8 x 10 cm |
| Weight | 0.72 kg |
| Operating Temperature | -40 to +85 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
Function and System Configuration
The 51304584-200 belongs to the EPDGP I/O board assembly family. It provides peripheral interface connections for the Honeywell Enhanced Micro TDC 3000 Universal Station. Its role is to connect station peripherals through the board's dedicated connectors rather than serve as a general-purpose process signal I/O module.
The board supports peripheral connections associated with the station, including keyboard, monitor, pointing-device and printer interfaces. Connector assignments and cable routing should be checked against the EPDGP board documentation before replacement.
Model Identification
The suffix configuration distinguishes this assembly from other EPDGP I/O boards:
| Model | Universal Station Configuration |
|---|---|
| 51304584-100 | Classic station with keyboard power supply |
| 51304584-200 | Classic station without keyboard power supply |
| 51304584-300 | Ergonomic furniture with 21-inch FST monitor |
These distinctions are documented in Honeywell's Enhanced Micro TDC 3000 service documentation. The -200 version should therefore be matched to the station's original hardware configuration.
Frequently Asked Questions
Q: What is the difference between 51304584-200 and 51304584-100?
A: Both are EPDGP I/O assemblies for Classic Universal Stations. The -100 version is specified for stations with a keyboard power supply, while the -200 version is for stations without one.
Q: Is the 51304584-200 a standard process I/O module?
A: No. It is a peripheral interface board for the Universal Station. It should not be confused with analog input, analog output or discrete process I/O modules.
Q: What should be checked before replacing this board?
A: Confirm the station configuration, board assembly number and connector arrangement. Also verify the original cable connections and jumper settings against the applicable EPDGP service documentation.
Features
We welcome bulk orders and have a minimum order quantity of just one unit.
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
