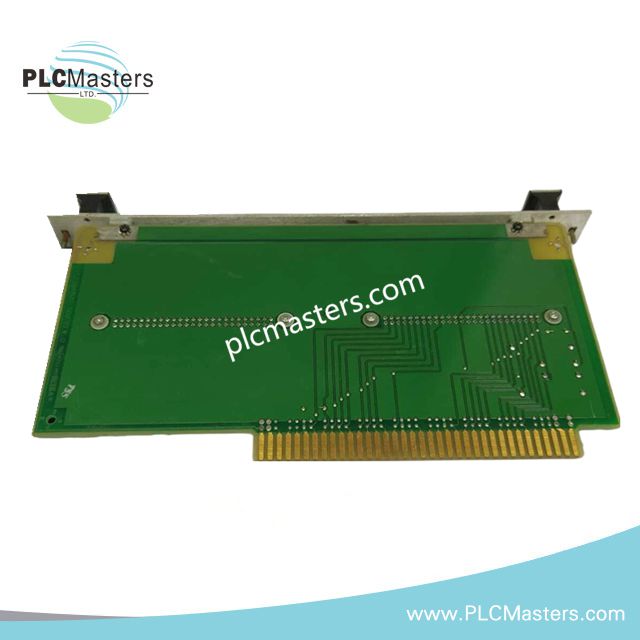

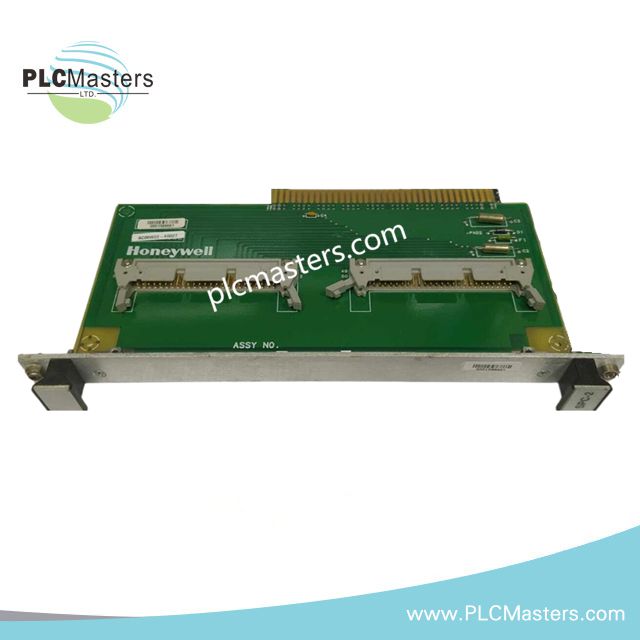

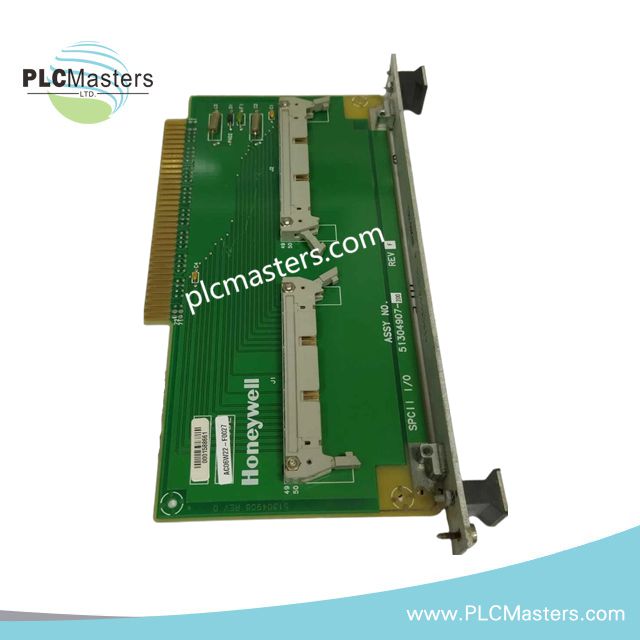

Honeywell 51304907-200 Printer Interface Board
$209.00
$450.00
Description
Overview
The Honeywell 51304907-200 Printer Interface Board is a dedicated I/O expansion card designed for seamless printer and peripheral integration within Honeywell TDC 3000 distributed control systems. Installed as part of the SPC II I/O architecture, this board enables dependable transmission of operational data, alarms, and system reports from the control system to external output devices.
Built for continuous operation in demanding industrial environments, the module emphasizes communication stability, signal integrity, and long-term reliability. Its hardware design supports straightforward installation into existing Honeywell cabinets without requiring system redesign.
Core Functions
The 51304907-200 serves as a communication bridge between the TDC 3000 system and connected printers or output peripherals. It ensures consistent data handling for tasks such as:
Real-time event and alarm printing
Operational and historical report output
System diagnostics and maintenance records
Peripheral data exchange through supported interfaces
The board is engineered to maintain deterministic performance even under fluctuating electrical and environmental conditions.
Technical Specifications
Manufacturer
Honeywell
Model / Part Number
51304907-200
Module Classification
Printer Interface Board
SPC II I/O Printed Circuit Board
System Compatibility
Honeywell TDC 3000 Distributed Control System
Power Requirements
Nominal 24 VDC supply
Current draw approximately 1 A
Communication Support
Serial and industrial communication interfaces
Protocol availability dependent on system configuration and host controller
Operating Temperature Range
−40 °C to +70 °C
Mechanical Characteristics
Compact PCB form factor suitable for TDC 3000 racks
Dimensions: 2 × 13 × 23.7 cm
Weight: 0.23 kg
Design and Reliability Features
The Honeywell 51304907-200 is constructed for long service life in critical control environments. Key design attributes include:
Stable data transmission for continuous printer operation
Resistance to electrical noise typical of control cabinets
Wide thermal tolerance for harsh plant conditions
Modular hardware layout enabling rapid replacement
These characteristics make the board suitable for plants requiring uninterrupted documentation and traceability.
Typical Application Scenarios
Control room printer interfaces for alarms and reports
Process event logging in refineries and chemical plants
Historical data output in power generation facilities
System documentation support in legacy TDC 3000 installations
Frequently Asked Questions
Q: Is this board compatible with all TDC 3000 systems?
A: The 51304907-200 is designed specifically for Honeywell TDC 3000 architectures that support SPC II I/O modules. System configuration should be verified prior to installation.
Q: Does the board require additional software configuration?
A: Configuration is typically handled through the host TDC 3000 system. No standalone firmware is required on the board itself.
Q: Can this module be used with non-Honeywell printers?
A: Compatibility depends on the communication interface and protocol configured within the control system. Printer specifications should be reviewed for alignment.
