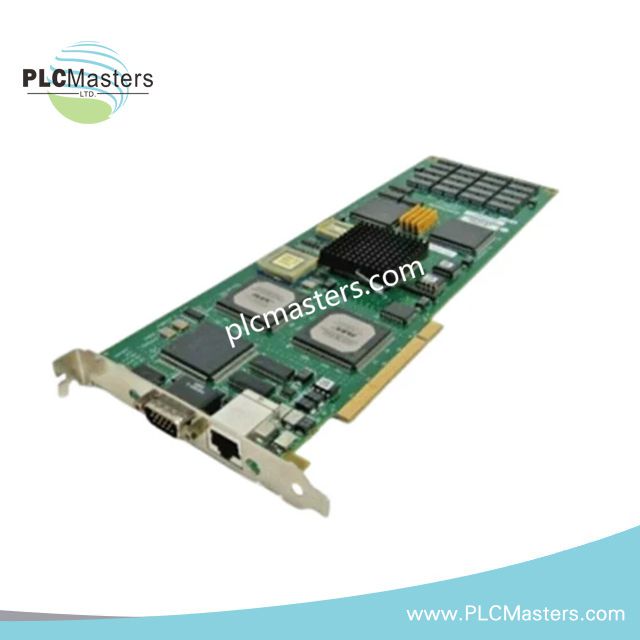

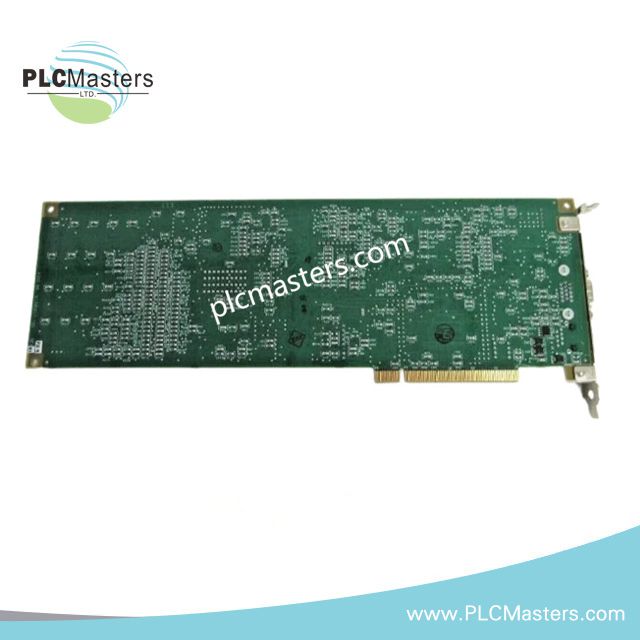

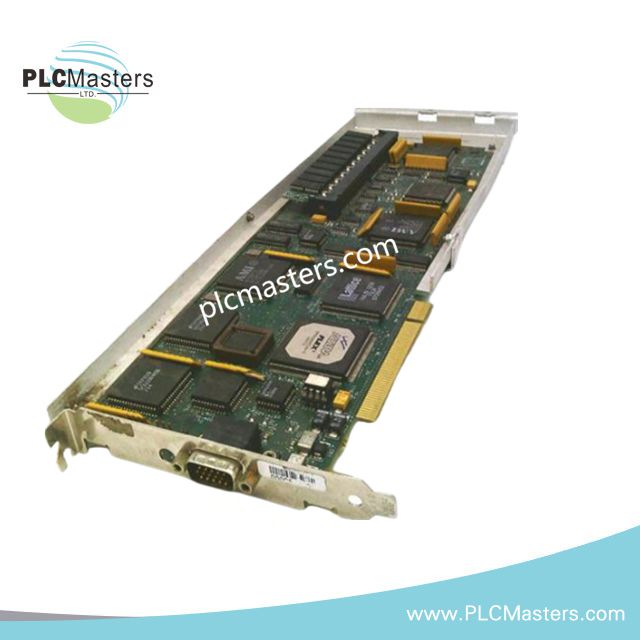

Honeywell 51402797-200 Analog Input Module

Product Description

The Honeywell 51402797-200 Analog Input Module delivers precise and reliable acquisition of analog signals from industrial sensors. It is engineered for seamless integration with Honeywell Distributed Control Systems (DCS), ensuring accurate monitoring of critical process parameters.

Moreover, this module supports a wide range of analog inputs, including 4–20 mA and 0–10 V signals, making it versatile for temperature, pressure, and flow measurements. Its robust design ensures consistent performance in demanding industrial environments, such as oil and gas, chemical processing, power generation, and water treatment plants.

The module provides 16-bit or higher resolution for superior signal accuracy, while minimizing signal noise for dependable data acquisition. Furthermore, it is compact, lightweight, and easy to install within standard system racks, reducing maintenance time and improving overall system reliability.

In addition, the 51402797-200 supports real-time data transmission to the control system, enabling timely decision-making and operational optimization. It also complies with industry standards, offering long-term stability and a 12-month vendor-backed warranty.

Key Features

• High-Precision Analog Signal Acquisition: Supports 16-bit resolution or higher for accurate process monitoring.

• Wide Input Compatibility: Accepts 4–20 mA, 0–10 V, and other standard analog signals.

• Industrial Reliability: Designed for harsh environments with 0–60°C operating temperature and 5–95% humidity.

• Compact & Lightweight: Dimensions 216 × 160 × 30 mm, weight 0.5 kg for easy integration.

• Seamless DCS Integration: Provides stable, real-time signal transmission to Honeywell control systems.

• Enhanced Data Accuracy: Minimizes signal noise and ensures consistent measurement performance.

Technical Specifications

• Model Number: 51402797-200

• Product Type: Analog Input Module

• Function: Acquires and processes analog signals for DCS

• Signal Type: Analog (4–20 mA, 0–10 V)

• Resolution: 16-bit or higher

• Dimensions: 216 × 160 × 30 mm (8.5 × 6.3 × 1.2 inches)

• Weight: 0.54 lbs

• Operating Temperature: 0–60°C

• Humidity: 5–95% non-condensing

• Power Consumption: Consult datasheet for system-specific values

Typical Applications

• Oil and gas process control systems for real-time monitoring

• Chemical plants for temperature, pressure, and flow measurement

• Power generation facilities requiring precise analog input acquisition

• Water treatment systems for continuous process monitoring

• Integration with Honeywell DCS for automated control and safety systems

FAQ

Q1: What analog signals does this module support?
A1: The module supports 4–20 mA, 0–10 V, and other standard analog signals from industrial sensors.

Q2: Can it operate in harsh industrial environments?
A2: Yes, it functions reliably between 0–60°C and 5–95% non-condensing humidity.

Q3: Is the module compatible with Honeywell DCS systems?
A3: Absolutely. It is designed for seamless integration with Honeywell Distributed Control Systems.

Q4: What is the resolution and accuracy of this module?
A4: It provides 16-bit or higher resolution and ±0.1% Full Scale accuracy for precise measurement.
