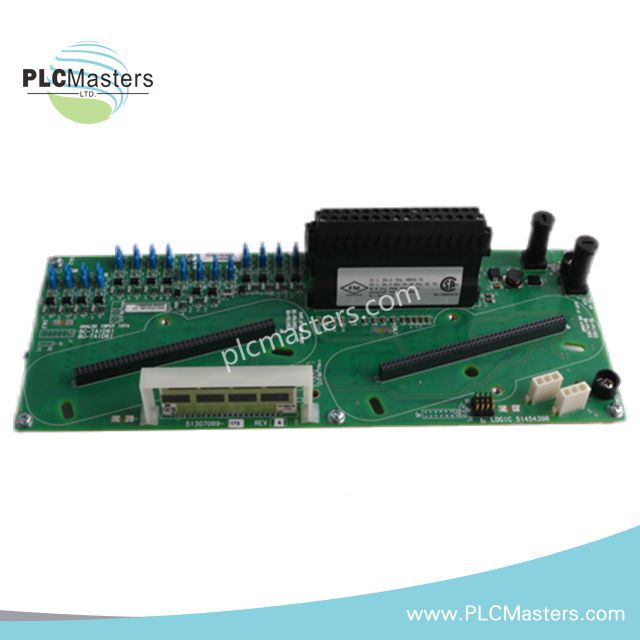

Honeywell 8C-TAID61 51307069-175 Analog Input Module

Overview

The Honeywell 8C-TAID61 is a high-performance analog input module engineered for Experion PKS C300 control systems. It accurately captures voltage and current signals across diverse applications. With RS-485 communication and compact dimensions, it suits process control, diagnostics, and monitoring in manufacturing, energy, and transportation sectors. Furthermore, its wide operating temperature range and DIN/panel mount flexibility support harsh industrial environments.

Technical Specifications

General Information

• Model Number: 8C-TAID61

• Part Number: 51307069-175

• Type: Analog Input Module

• Mounting Type: DIN rail or panel mount

• Weight: 0.5 kg

• Dimensions: 100 × 100 × 20 mm

Analog Input Characteristics

• Input Channels: 8

• Input Signal Ranges: 0–10 VDC, 0–20 mA, 4–20 mA

• Resolution: 12-bit

• Accuracy: ±0.5% Full Scale

• Sampling Rate: 100 Hz

Digital Input (Extended Functionality)

• Input Channels: 32 (if applicable)

• Nominal Voltage: 24 VDC

• Input Voltage Range: 18 to 30 VDC

• Module Current Rating: 95 mA (approximate)

Isolation and Protection

• Isolation Voltage: 1500 VAC RMS or ±1500 VDC

• Isolation Type: Optical

• Input Impedance: 4.2 KΩ

ON/OFF Detection Thresholds

• ON Sense Voltage: ≥13 VDC

• ON Sense Current: ≥3 mA

• OFF Sense Voltage: ≤5 VDC

• OFF Sense Current: ≤1.2 mA

• Field Resistance (ON): ≤300 Ω @ 15 VDC

• Field Resistance (OFF): ≥30 KΩ @ 30 VDC

Timing Performance

• Input Filter Delay: 5 ms ± 20%

• Normal Scan Time: 20 ms

• Fast Scan Time: 5 ms

• SOE Resolution: 1 ms

Environmental and Compliance

• Operating Temperature: –40°C to +85°C

• Power Supply: 24 VDC
