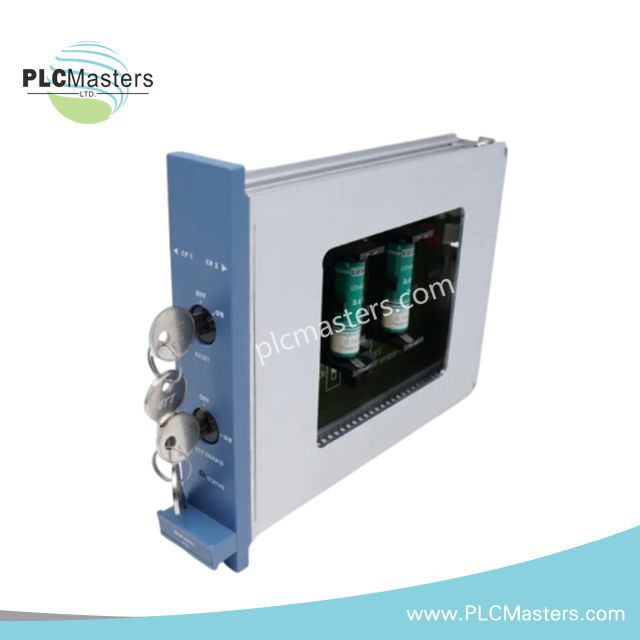

Honeywell Bkm-0001（ CCV1.1) Battery and Key Switch Module
    Honeywell Bkm-0001（ CCV1.1) Battery and Key Switch Module

    Honeywell Bkm-0001（ CCV1.1) Battery and Key Switch Module

    • 1000 In stock

    • Manufacturer: HoneyWell

    • Product No.: Bkm-0001（ CCV1.1)

    • Condition： In stock

    • Product Type: Battery and Key Switch Module

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 500g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":41910110519386,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"Bkm-0001（ CCV1.1)","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honeywell Bkm-0001（ CCV1.1) Battery and Key Switch Module","public_title":null,"options":["Default Title"],"price":21400,"weight":500,"compare_at_price":32500,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The Honeywell BKM-0001 (CCV1.1) is a Battery and Key Switch Module, designed for industrial automation and safety systems. It ensures reliable operation in critical environments by providing backup power and secure access control.

    Technical Specifications

    • Model Number: BKM-0001 (CCV1.1)

    • Type: Battery and Key Switch Module

    • Operating Temperature: –5°C to +70°C (+23°F to +158°F)

    • Storage Temperature: –40°C to +85°C (–40°F to +185°F)

    • Relative Humidity: 10–95% (non-condensing)

    • Approvals: CE, TÜV, UL, CSA, FM

    Power Supply

    • 24V Supply Voltage: 24 VDC (–15% to +30%)

    • 24V Supply Current: Max 20 mA, Typical 7 mA

    • 5V Supply Voltage: 5 VDC ± 10%

    • 5V Supply Current: Max 10 mA

    Battery

    • Make: SAFT

    • Type: LS14500CGFG (Recommended) / LS14500W (Alternative)

    • Material: Lithium Thionyl Chloride

    • Voltage: Nominal 3.6V

    • Capacity: >2Ah

    • Size: AA

    • Operating Temperature: –40°C to +85°C

    Physical Dimensions

    • Size: 176 × 35.2 × 212 mm (H × W × D)

    • Weight: 500 g
