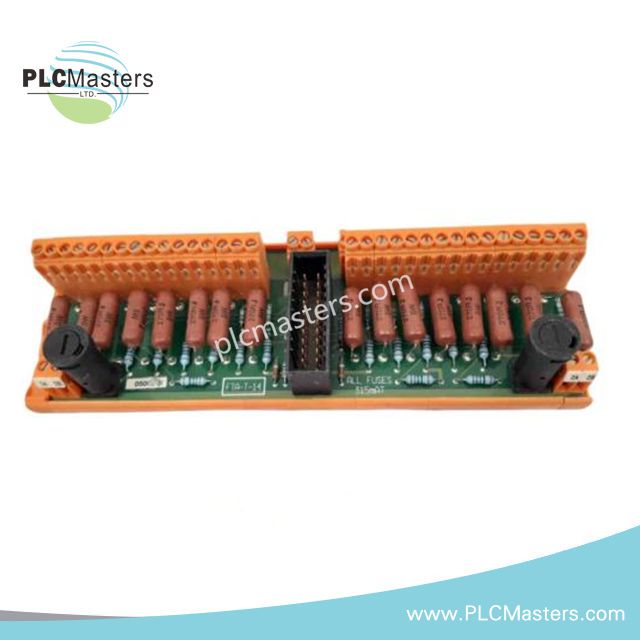

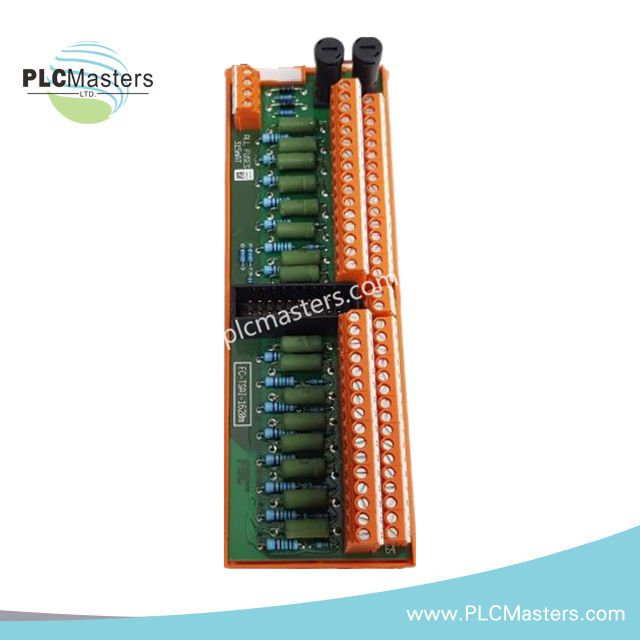

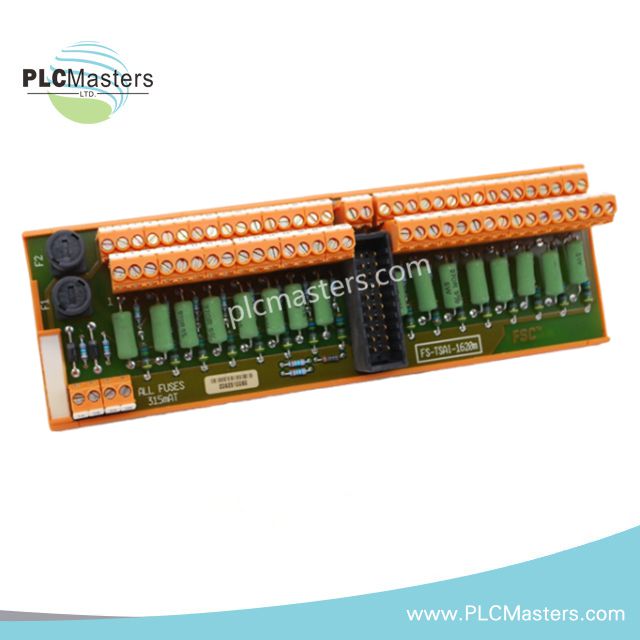

Honeywell FC-TSAL-1620M Analog Input Module

Overview

The Honeywell FC-TSAI-1620M is a rugged, high-precision analog input module built for the Safety Manager system within the Experion PKS platform. It delivers accurate signal acquisition from field transmitters and sensors, ensuring dependable performance in critical safety and process control environments. With support for multiple signal types and strict compliance with hazardous area standards, this module is engineered for reliability in demanding industrial applications.

Technical Specifications

• Model: FC-TSAI-1620M

• Manufacturer: Honeywell

• Module Type: Analog Input Module

• Number of Channels: 16 analog input channels

• Supported Input Types: 4–20 mA, 0–5 V, thermocouples

• Signal Range: 0–22 mA / 0–5.5 V

• Line Diagnosis Range: 4–22 mA / 1–5.5 V

• Input Resistance: ≥100 kΩ

• Internal Processing Voltage: 0–4 V DC

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Isolation: Channel-to-channel and channel-to-earth

• Fuse Rating: 315 mA

• Operating Temperature: –40°C to +70°C

• Humidity Range: 5% to 95% RH, non-condensing

• Mounting Options: DIN rail, chassis, or backplane

• Dimensions (set 1): 210 × 70 × 60 mm

• Dimensions (set 2): 137 × 40 × 147 mm

• Weight: 0.95 lbs

• Safety Compliance: Class I, Division 2 hazardous locations

• System Compatibility: Honeywell Experion PKS
