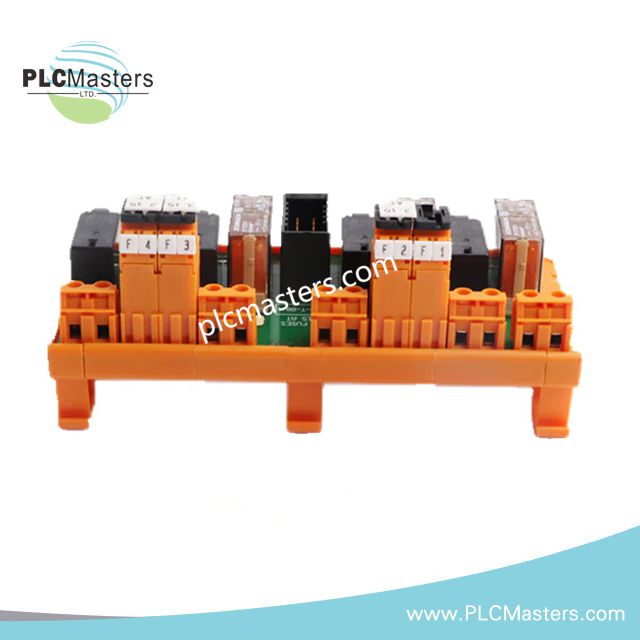

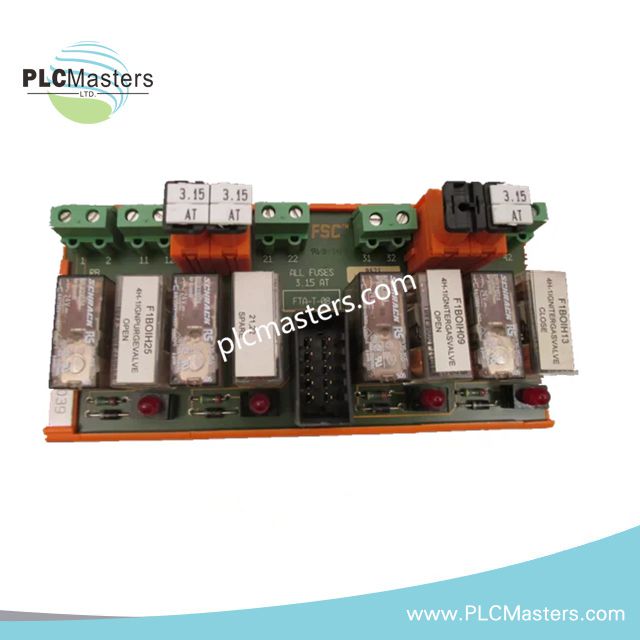

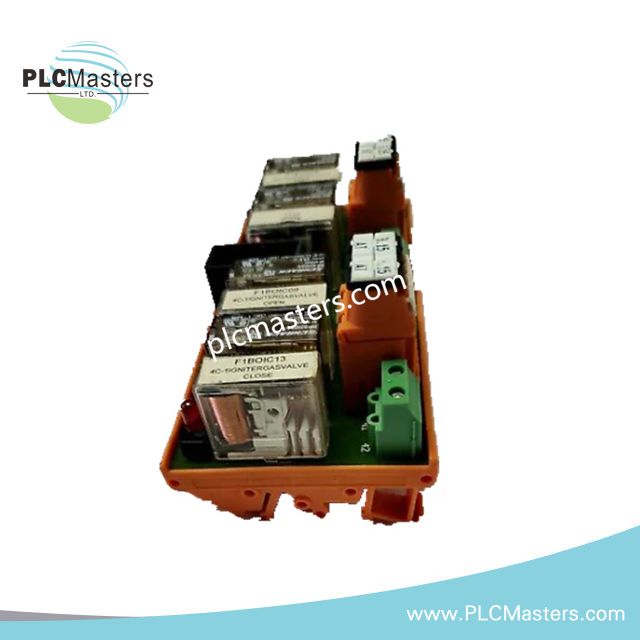

Honeywell FTA-T-04 Series 8 Field Terminal Assembly
$209.00
$450.00
Description
Overview
The FTA-T-04 is a Honeywell Series 8 Field Terminal Assembly engineered to provide a dependable interface between field devices and Honeywell distributed control system I/O modules. It is used extensively in TPS, TDC 3000, and Experion PKS architectures where stable signal termination and orderly cabinet wiring are critical.
Designed for long-term operation in industrial environments, this FTA supports multi-channel signal termination while maintaining consistent grounding practices and minimizing wiring errors. Its mechanical layout aligns with Honeywell’s classic I/O systems, making it suitable for both system upgrades and direct replacement in legacy installations.
Functional Description
The FTA-T-04 serves as the physical termination point for field wiring associated with compatible Honeywell I/O modules. Field signals are landed on the FTA, then routed through pre-defined connectors to the control system hardware.
Signal characteristics such as analog or digital handling, voltage levels, and isolation performance depend on the paired I/O module rather than the FTA itself. The assembly ensures that signal integrity is preserved through correct terminal spacing, shielding support, and grounding continuity.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Model | FTA-T-04 |
| Product Class | Field Terminal Assembly |
| Series | Series 8 / Classic Honeywell FTA |
| System Compatibility | TPS, TDC 3000, Experion PKS |
| Channel Capacity | 4 field signal channels |
| Supported Signals | Analog or digital (I/O module dependent) |
| Terminal Type | Screw or compression terminals |
| Electrical Isolation | Provided via associated isolated I/O modules |
| Mounting Method | Panel or control cabinet mounting |
| Operating Temperature | 0°C to 60°C |
| Construction | Industrial-grade PCB and terminal hardware |
| Form Factor | Standard Honeywell Series 8 FTA layout |
| Weight | 0.5 kg |
Key Characteristics
Supports four independent field signal channels
Provides structured and labeled wiring termination
Maintains consistent grounding and signal routing
Compatible with multiple Honeywell I/O families
Designed for extended service life in control cabinets
Commonly used as a direct replacement for legacy FTAs
Typical Applications
The FTA-T-04 is deployed in a wide range of continuous-process environments, including refinery control systems, chemical processing units, power generation facilities, and petrochemical plants. It is frequently used in marshalling panels and system cabinets where space efficiency and wiring clarity are required.
Related Models Comparison
Compared to higher-channel FTAs such as FTA-T-08 or FTA-T-16, the FTA-T-04 is optimized for low-density signal termination. This makes it suitable for localized field wiring or dedicated process loops where channel count must be controlled without sacrificing reliability.
FAQ
Q: Does the FTA-T-04 provide intrinsic signal isolation?
A: The FTA itself does not generate isolation. Isolation performance depends entirely on the connected Honeywell I/O module.
Q: Can this FTA be reused when upgrading to Experion PKS?
A: Yes. When paired with compatible Experion PKS I/O modules, the FTA-T-04 can remain in service, reducing rewiring effort.
Q: Is this unit suitable for hazardous environments?
A: Environmental suitability depends on cabinet design and associated I/O modules. The FTA meets standard industrial environmental requirements.
