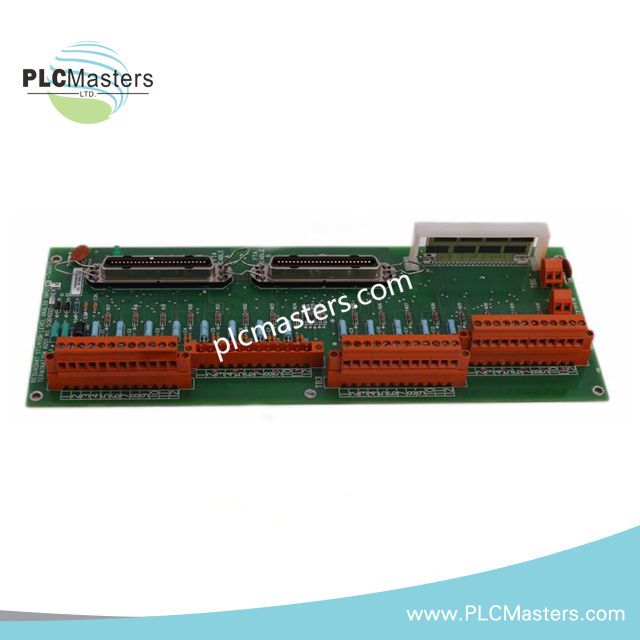

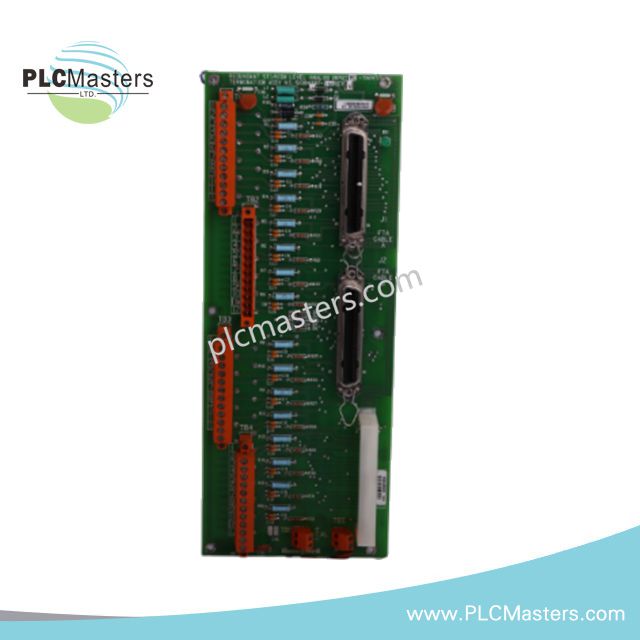

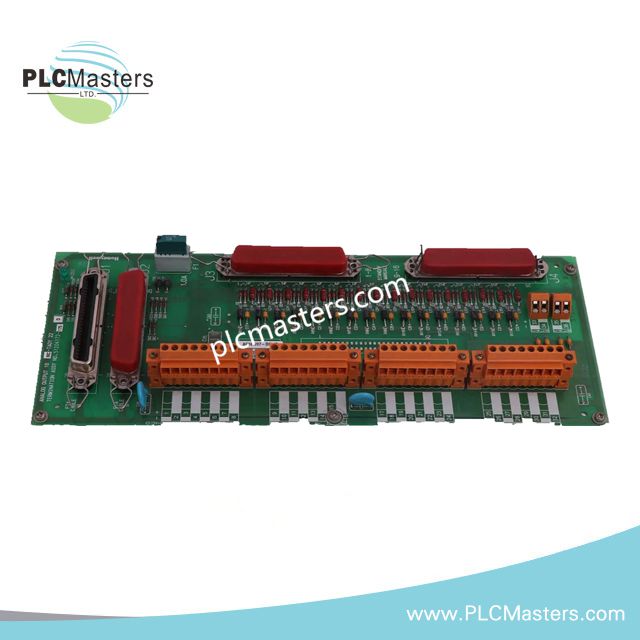

Honeywell MC-TAIH12 51304337-150 High-Level Analog Input Module
$209.00
$450.00
Description
Product Description
The Honeywell MC‑TAIH12 (51304337‑150) is a precision High-Level Analog Input (HLAI) module engineered for demanding process control applications. Designed for distributed control systems (DCS), this module delivers 16 isolated analog input channels, supporting both single-ended and differential signal configurations for maximum flexibility.
Constructed for reliability in harsh industrial environments, it features conformal coating, wide operating temperature tolerance, and redundancy support for mission-critical systems. The module is compatible with modern communication protocols such as HART and Modbus RTU, facilitating integration with a variety of control architectures.
This HLAI module ensures rapid response and accurate sampling at 20 Hz, making it ideal for real-time process monitoring and control applications in chemical processing, refining, power generation, and high-precision manufacturing.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | MC‑TAIH12 |
| Part Number / Order Number | 51304337‑150 |
| Module Type | High-Level Analog Input (HLAI) |
| Input Channels | 16 isolated analog inputs |
| Input Signal Types | 0–20 mA, 4–20 mA current |
| Input Configuration | Single-ended or differential |
| Input Impedance | 250 Ω |
| Sampling Rate | 20 Hz |
| Communication | HART (support), Modbus RTU (installation-dependent) |
| Redundancy | Supported |
| Conformal Coating | Yes |
| Operating Temperature | −40°C to +85°C |
| Power Consumption | 50 mA @ 24 VDC |
| Enclosure Rating | IP65 |
| Dimensions | 10.8 × 12 × 3.5 cm |
| Weight | 0.35 kg |
| Country of Origin | USA |
| Typical Applications | High-accuracy analog acquisition, DCS systems, industrial control |
Key Features
-
16-channel high-level analog input capability
-
Supports both single-ended and differential input
-
Conformal coating for harsh environmental conditions
-
Redundancy-ready for high-availability control systems
-
Wide operating temperature range (−40°C to +85°C)
-
Compatible with HART and Modbus RTU protocols
-
Fast sampling and real-time response for process monitoring
Applications
The MC‑TAIH12 (51304337‑150) is suitable for industries requiring precise analog measurement and robust system reliability:
-
Chemical and petrochemical plants
-
Power generation facilities
-
Oil & gas refining
-
High-precision manufacturing lines
-
Distributed control system (DCS) integration
FAQ
Q: Can this module handle differential inputs?
A: Yes, all 16 channels support both single-ended and differential input configurations.
Q: Does it support communication protocols for modern control systems?
A: The module is HART-enabled and Modbus RTU compatible, depending on the installation.
Q: What redundancy options are available?
A: The module supports system-level redundancy to ensure high-availability operation in critical environments.
Q: Is the module suitable for extreme temperature conditions?
A: Yes, it operates reliably from −40°C to +85°C and includes conformal coating for harsh conditions.
