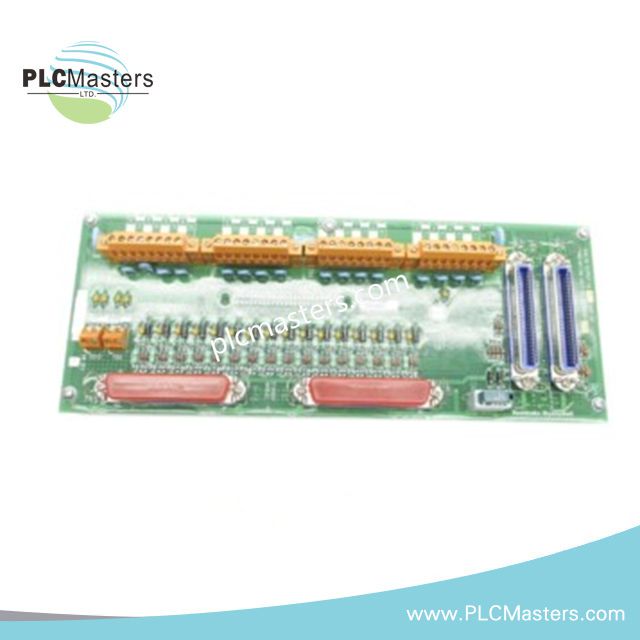

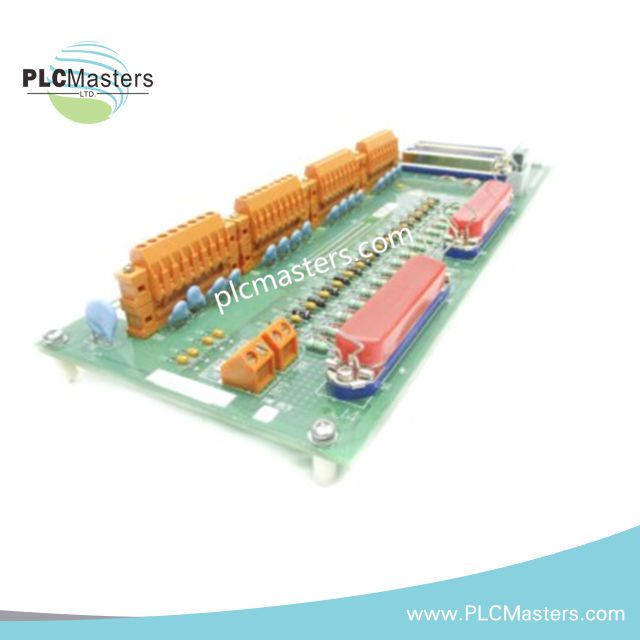

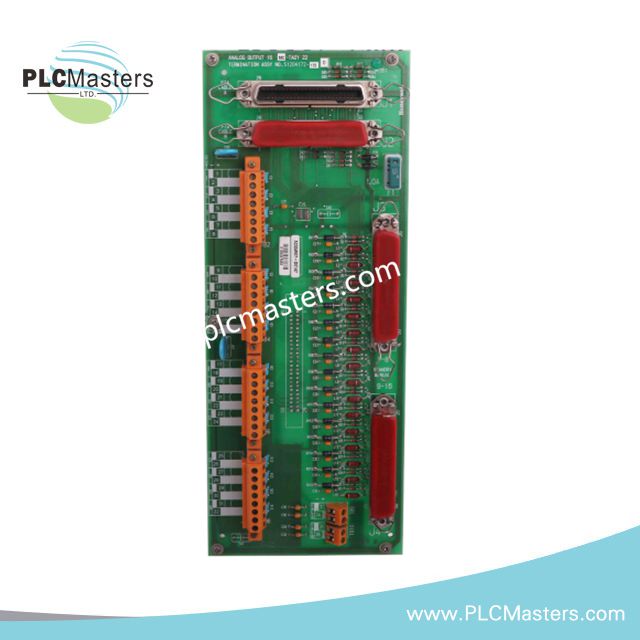

Honeywell MC-TAOY22 80366481-175 Analog Output Module
$209.00
$450.00
Description
Overview
The MC‑TAOY22 (80366481‑175) is a high-performance analog output module from Honeywell, designed for Experion PKS, TDC 3000, TPS, and TPN systems. It converts digital signals from the controller into precise analog outputs, controlling actuators, valves, and other field devices. Built for high-integrity process control, this module is ideal for safety-critical applications such as burner management and emergency shutdown (ESD) systems. Its rugged, compact design ensures reliable long-term operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Model | MC‑TAOY22 |
| Part Number / Order No. | 80366481‑175 |
| Product Type | Analog Output Module |
| System Compatibility | Experion PKS, TDC 3000, TPS, TPN systems |
| Output Channels | 4 channels standard, 16-channel FTA version available |
| Output Signal Types | 4–20 mA or 0–10 V analog output |
| Accuracy | ±0.35% at 25°C (FTA version) |
| Power Supply | 24 VDC |
| Terminals | Compression terminals for secure wiring |
| Dimensions | 125 × 80 × 60 mm |
| Weight | 0.95 lbs |
Key Features
-
Converts controller digital signals into precise analog outputs
-
Supports both 4–20 mA and 0–10 V output ranges
-
Compact and rugged design suitable for industrial environments
-
Compression terminals ensure secure and reliable field wiring
-
High accuracy and long-term stability for safety-critical applications
Applications
-
Gas or steam system valve control
-
Industrial boiler burner management
-
Emergency shutdown (ESD) systems
-
High-integrity process automation loops
FAQ
Q: What output signal types does the MC‑TAOY22 support?
A: It supports 4–20 mA current output and 0–10 V voltage output.
Q: Are there multi-channel versions available?
A: The standard module has 4 output channels; some suppliers offer a 16-channel FTA version.
Q: Which systems is this module compatible with?
A: It is compatible with Honeywell Experion PKS, TDC 3000, TPS, and TPN systems.
Q: Can this module be used in safety-critical applications?
A: Yes, it is commonly used in burner management and emergency shutdown systems.
