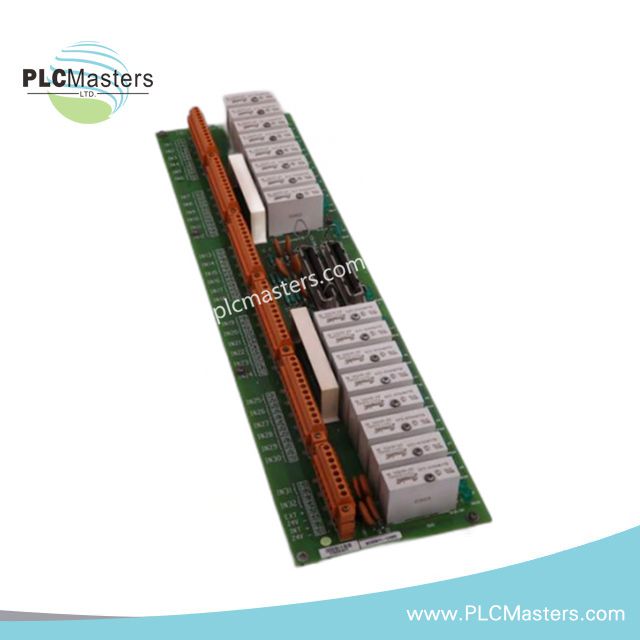

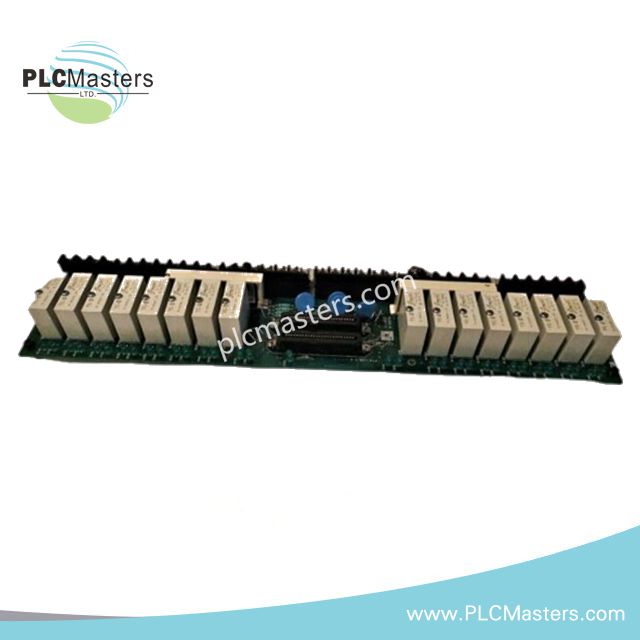

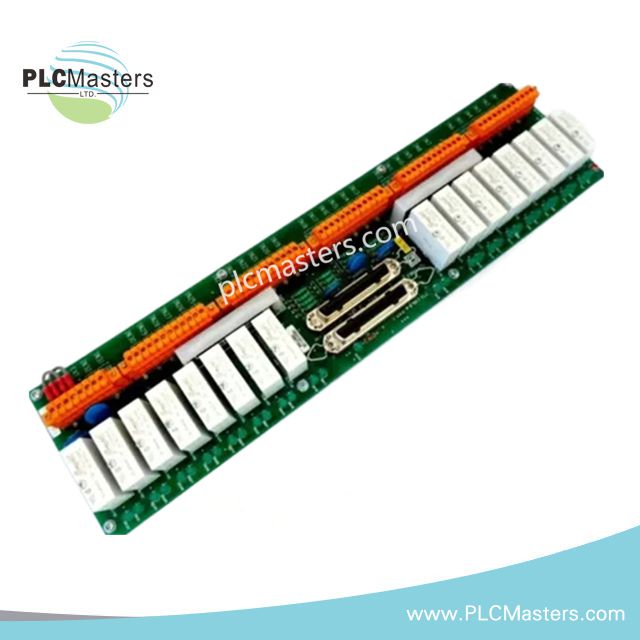

Honeywell MU-TDID12 51304441-125 Digital Input FTA Module
$209.00
$450.00
Description
Overview
The Honeywell MU-TDID12 51304441-125 is a Digital Input Field Termination Assembly (FTA) module. It connects field devices to I/O processors in Honeywell TPS Process Manager systems. The module reliably handles 24 VDC digital input signals. It ensures precise signal acquisition from multiple field instruments. Its compact form factor allows flexible installation in control cabinets. Users can extend cabling up to 50 meters without signal loss. The module supports both compression-type and optional screw-type terminals. It provides robust operation across industrial temperature ranges.
Technical Specifications
-
Manufacturer: Honeywell
-
Model Number: MU-TDID12
-
Part Number: 51304441-125
-
Function: Digital Input FTA Module
-
Signal Type: 24 VDC digital input
-
Number of Inputs: 32 channels
-
Input Impedance: 10 kΩ
-
Input Current: 2.4 mA per point at 24 VDC
-
Current Protection: Fuses for each channel
-
Termination Type: Compression-type blocks (up to 14 AWG / ~1.6 mm wire)
-
Optional Terminals: Screw-type
-
System Compatibility: Honeywell TPS Process Manager, Experion PKS, PlantScape
-
Mounting: DIN Rail
-
Operating Temperature: −20°C to +60°C
-
Storage Temperature: −40°C to +85°C
-
Humidity: 5% to 95% RH, non-condensing
-
Cable Length Support: Up to 50 meters between FTA and I/O processor
-
Dimensions: 2.8 cm x 37.8 cm x 27.8 cm
-
Weight: 0.62 kg
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
