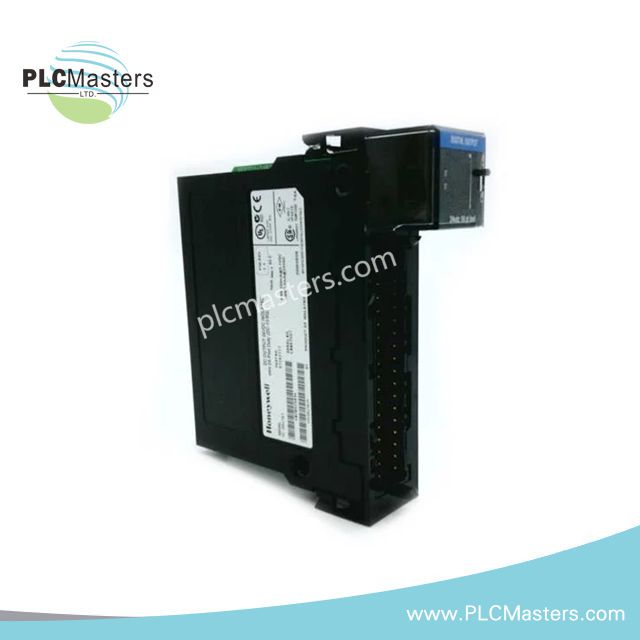

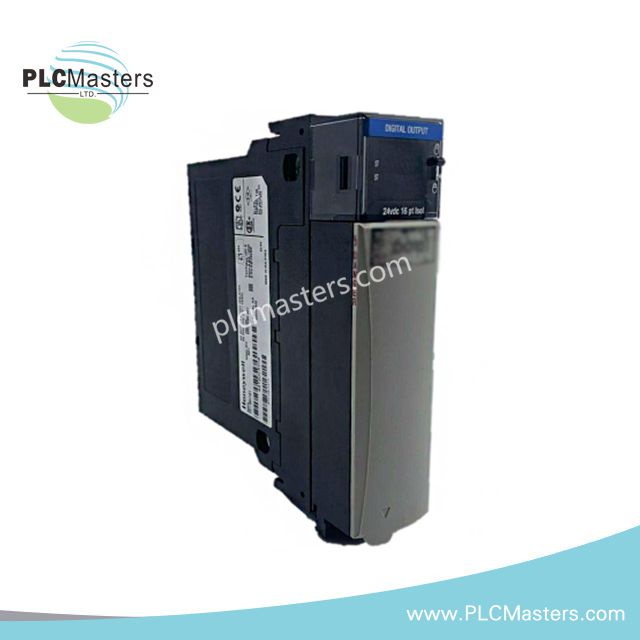

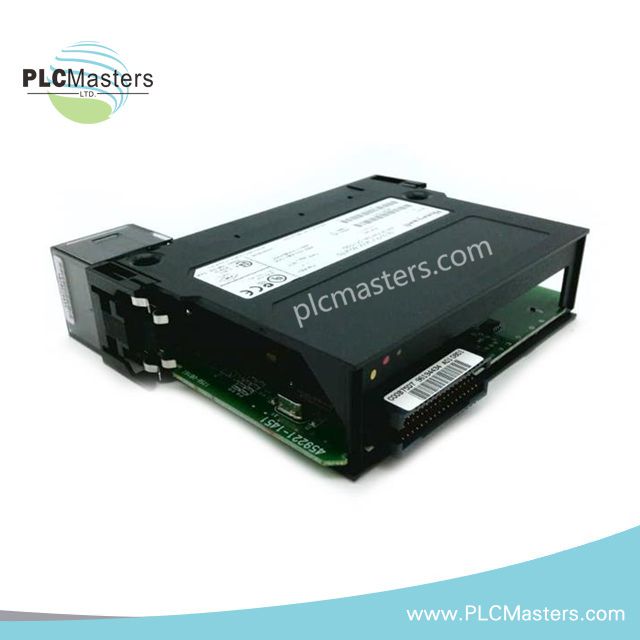

Honeywell TC-ODJ161 Digital Output Module

Overview

The Honeywell TC-ODJ161 is a 24 VDC isolated discrete output module. It is designed for use in Honeywell’s C200 and Experion PKS control systems. The module provides 16 individually isolated output channels. It ensures precise control and robust electrical protection. The TC-ODJ161 suits high-performance industrial automation applications. Its compact design supports reliable system integration in demanding environments.

Technical Specifications

• Model Number: TC-ODJ161

• Product Type: Digital Output Module 24 VDC

• Output Channels: 16 discrete outputs, individually isolated

• Nominal Output Voltage: 24 VDC

• Output Voltage Range: 10–30 VDC

• Maximum Output Current (Per Point): 2.0 A @ 30°C; 1.0 A @ 60°C

• Maximum Output Current (Per Module): 8.0 A @ 30°C; 4.0 A @ 60°C

• Surge Current Capacity: 4 A for 10 ms, repeatable every 2 seconds

• On-State Current (Minimum): 1.0 mA

• On-State Voltage Drop (Maximum): 1.2 VDC at 2.0 A

• Off-State Leakage Current: 0.5 mA max per point

• Signal Delay: Off to On ≤1.0 ms; On to Off ≤2.0 ms

• Isolation Voltage: 1500 VAC (RMS) output to backplane

• Power Dissipation: 4.7 W max

• Connection Type: TC-TBCH 36-position terminal block

• Dimensions: 51 × 178 × 356 mm

• Weight: 0.44 lbs
