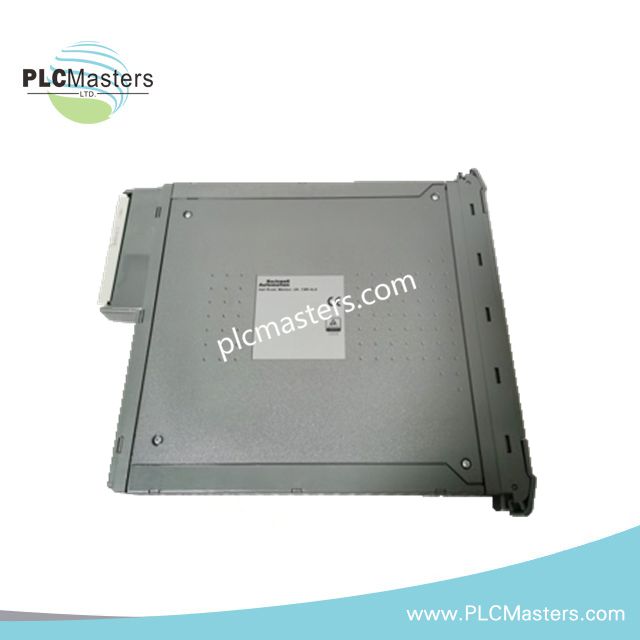

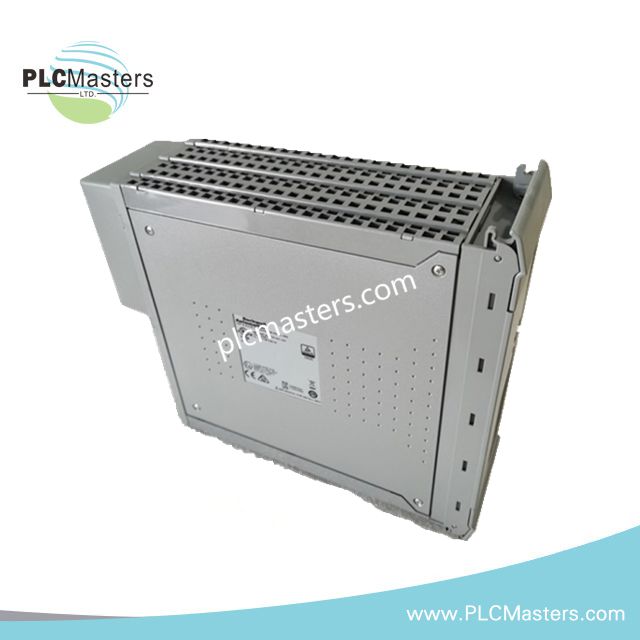

ICS Triplex T8122C Trusted TMR Processor Interface Adapter

The ICS Triplex T8122C, also cataloged as the T8122C Processor Interface Adapter, operates as a dedicated hardware component for serial communication interfacing and fault signal monitoring within Trusted Triple Modular Redundant (TMR) System chassis platforms.

Hardware Specifications

Triple Modular Redundancy & Safety Execution

Designed to maintain SIL 3 safety integrity, the adapter incorporates galvanically isolated signal paths to prevent field transient propagation to the internal system backplane. The physical interface provides dedicated hardware terminals to route active and standby processor fault signals directly, guaranteeing deterministic fail-safe state execution without reliance on software overhead. Inter-channel reinforced isolation up to 50 V continuous ensures that localized fault conditions on any serial port do not compromise adjacent functional channels within the 2oo3 voting architecture.

Frequently Asked Questions

Q: How is the T8122C adapter powered during operation?A: The adapter draws power directly from the active Trusted TMR processor module via the backplane assembly, requiring no external dedicated power wiring and operating within a 20-32 VDC window.

Q: What are the wiring requirements for Port 1 versus Ports 2 and 3?A: Port 1 is fixed strictly for 2-wire RS422/RS485 operation. Ports 2 and 3 feature software/hardware configurable modes allowing either 2-wire or 4-wire differential serial connections.

Q: How does the unit handle time synchronization signals across the interface?A: The board features dedicated signal conditioning for IRIG-B122 and IRIG-B002 timecode standards to synchronize process event logs directly to the master clock source.

Field Installation Guidelines

Mount the T8122C adapter directly to the rear position of the designated T8100 chassis slot. Ensure physical engagement of backplane connectors before torquing mechanical retention screws. All RS422/RS485 serial communication cabling must utilize individually shielded twisted pairs terminated to system earth at a single point to prevent ground loops. Cable drain wires must maintain continuity through terminal blocks without exposed conductor length exceeding 5 mm. Maintain a minimum clearance of 50 mm around chassis ventilation openings to ensure convective heat dissipation within specified thermal limits.
