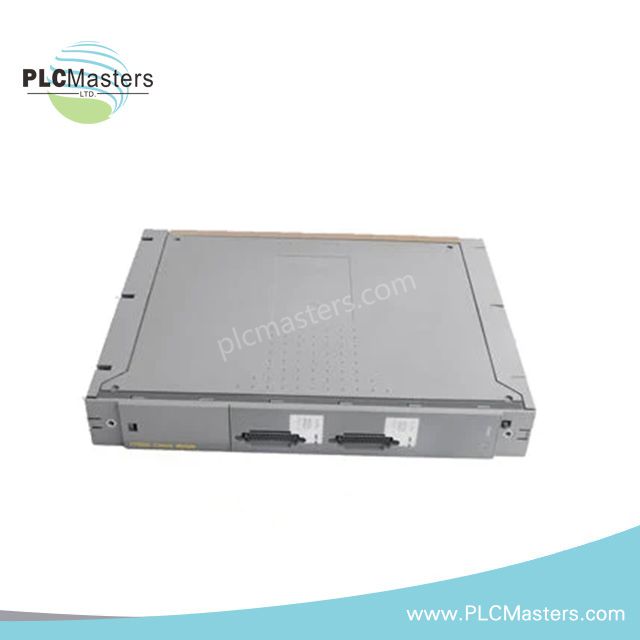

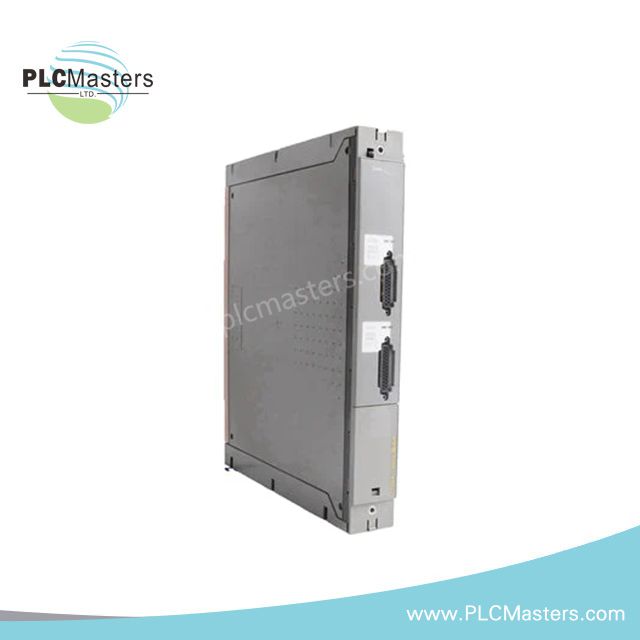

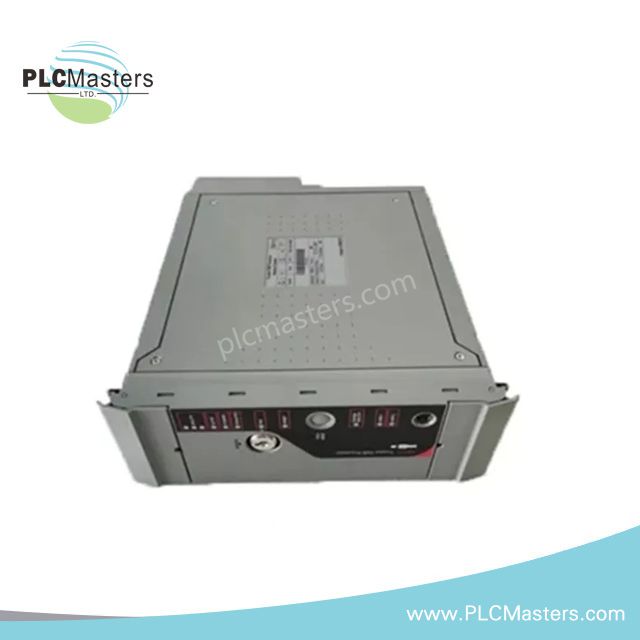

ICS Triplex T8123 Trusted TMR Processor Interface Adapter
$123.00
$320.00
Description
The ICS Triplex T8123, also cataloged as the T8123 Trusted Processor Interface Adapter, operates as a dedicated hardware component for fault-tolerant external communication and time synchronization execution within Trusted TMR system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T8123 |
| Brand | ICS Triplex |
| Origin | United Kingdom |
| Weight | 0.8 kg |
| Dimensions | 180 x 75 x 45 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 3.5 W typical |
| Supply Voltage | 20 to 32 VDC (24 VDC nominal) via backplane |
| Serial Interface | 3 x RS422/RS485 ports |
| Time Synchronization | IRIG-B002, IRIG-B122 |
| Protocol Support | MODBUS Master |
| Galvanic Isolation | 500 to 1500 VDC channel-to-chassis ground |
| Safety Certification | IEC 61508 SIL 3, TUV Certified |
Triple Modular Redundant Safety Features
Engineered specifically for SIL 3 rated applications, the unit integrates full triple modular redundancy (TMR) 2oo3 architecture integration interfacing. Galvanic isolation up to 1500 VDC prevents transient voltage propagation across communication channels. Dedicated internal logic monitors active and standby processor fault signals alongside chassis power supply shutdown lines, forcing the system into a deterministic fail-safe state execution upon critical error detection.
Frequently Asked Questions
Q: What is the mechanical installation requirement for the T8123 module?
A: The module requires direct rear-mounting onto the T8100 chassis backplane interface, receiving logic power and bus connectivity directly without external wiring harness requirement for internal logic.
Q: How does channel-to-channel isolation protect serial communication channels?
A: Integrated galvanic isolation between 500 VDC and 1500 VDC isolates external RS422/RS485 loops from internal system backplane ground, suppressing common-mode ground loops and surge spikes.
Field Installation Guidelines
Mount the unit directly to the rear connector plane of the T8100 Trusted chassis using standard industrial torque settings. Route RS422/RS485 serial cables separately from high-voltage AC lines to minimize electromagnetic noise pickup. Shielded twisted-pair cables must be grounded at a single point according to standard industrial earthing practice. Ensure ambient enclosure temperatures do not exceed the operating limit of +60 deg C through adequate passive or forced air convection.
