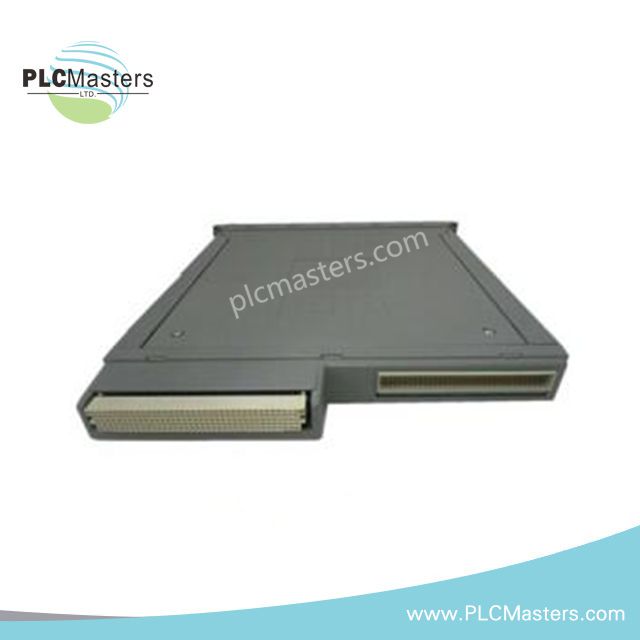

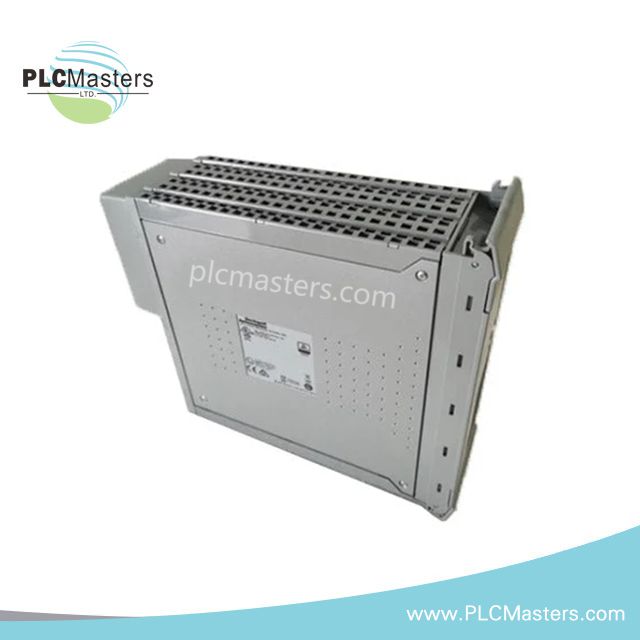

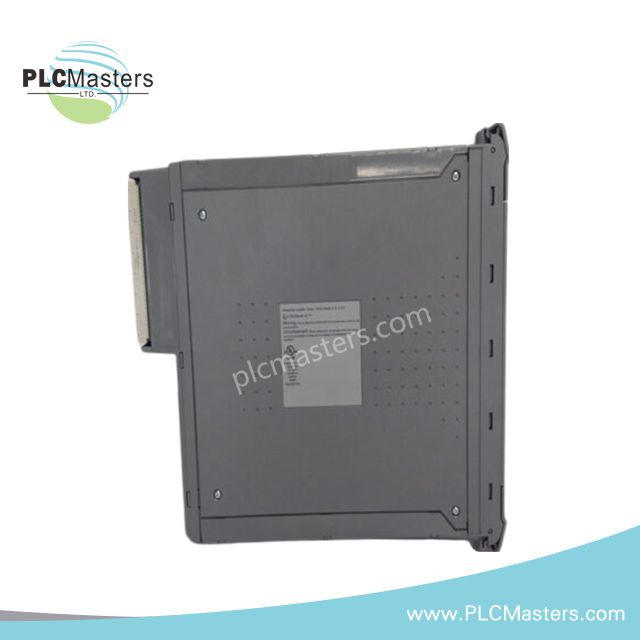

ICS Triplex T8160 Trusted TMR Module

Configured for high-reliability safety instrumented system execution in critical automation networks, the ICS Triplex T8160 (T8160 Safety Interface and Power Module) provides direct physical/electrical execution. The hardware operates in Triple Modular Redundant configurations, managing input voltage conversion and signal routing across dual redundant backplane paths. It executes fail-safe diagnostic cycles directly at the physical channel layer, maintaining constant health verification without disrupting active logic execution.

Hardware Specifications

Safety Instrumented System TMR Architecture

The module utilizes integrated Triple Modular Redundancy (TMR) featuring 2oo3 (two-out-of-three) majority voting across independent processing and hardware paths to guarantee SIL3 safety compliance. Complete galvanic isolation rated to 2500 VDC shields internal logic components from external power spikes and ground loops. In the event of an internal channel fault or power supply fluctuation, internal voting hardware forces the output state into a predefined fail-safe state without interrupting overall rack operations.

Frequently Asked Questions

Q: What are the primary installation requirements for live hot-swapping the module during operation?

A: Hot-swapping requires ensuring the adjacent power channel or redundant TMR bus is active and fully functional. The module can be unlatched and replaced without shutting down power to the rack, provided backplane status indicators verify stable redundant bus health.

Q: What mechanisms handle short-circuit faults on the 24 VDC output channels?

A: The module incorporates overcurrent protection set to trip at 6 A per channel along with overvoltage suppression at 28 VDC. Internal monitoring electronics log the fault to the backplane diagnostic stream while maintaining galvanic isolation across un-faulted paths.

Field Installation Guidelines

• Verify that the rack backplane power supply feeds match the required 20-32 VDC input voltage range before seating the module into its dual-slot position.
• Ensure all field wiring shields are grounded at a single point to prevent ground loops across the 1500 VDC channel-to-channel isolation barrier.
• Tighten physical retention screws to maintain solid mechanical ground contact against the rack chassis in high-vibration environments.
• Maintain a minimum clearance of 50 mm above and below the rack assembly to allow standard thermal convection dissipation across the module housing.
