ICS Triplex T8310 Trusted Expander Processor

ICS Triplex T8310 Trusted Expander Processor

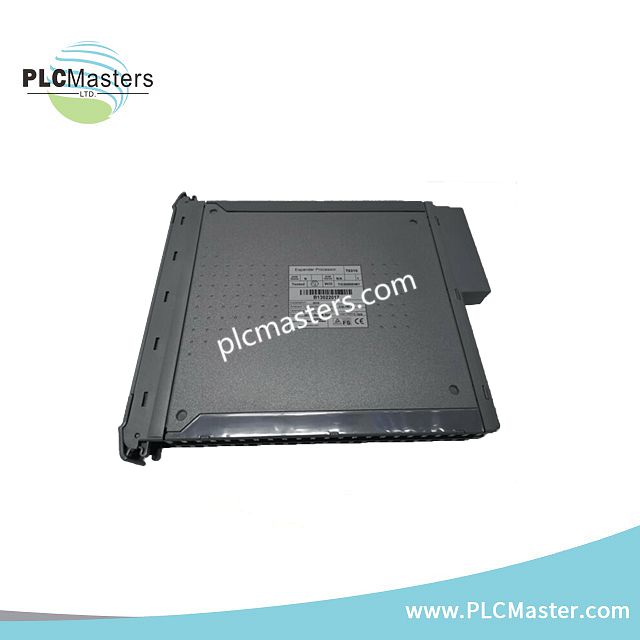

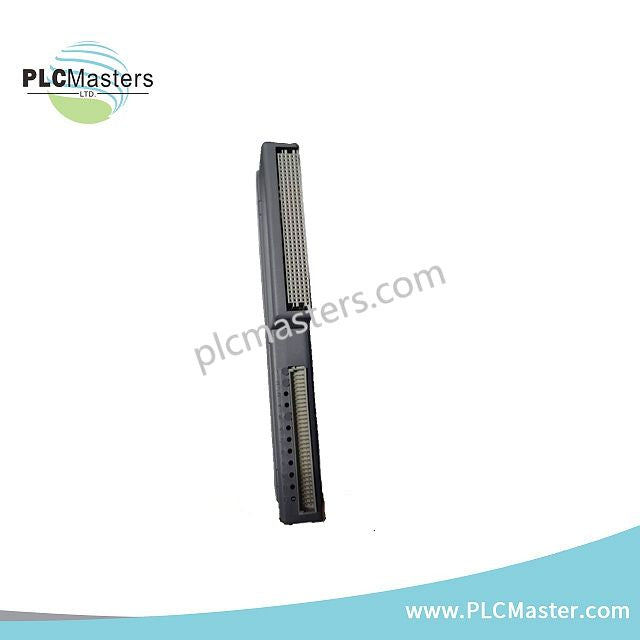

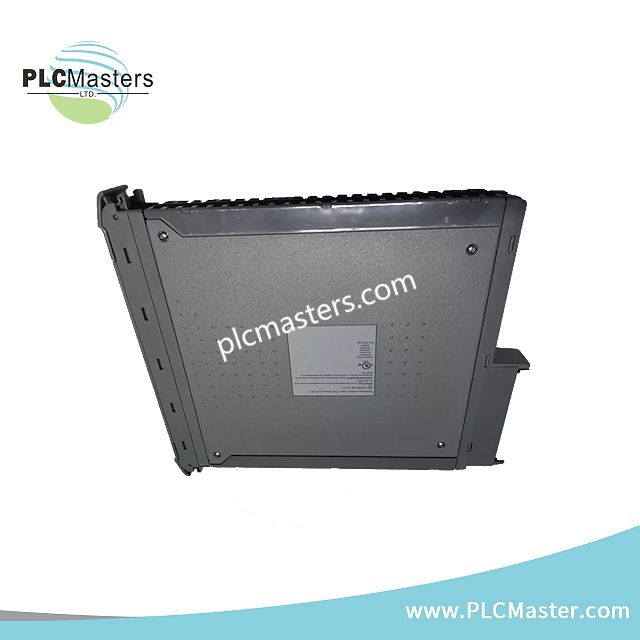

Configured for expander chassis bus interfacing and fault-tolerant processing in Trusted TMR platforms, the ICS Triplex T8310 (T8310 Trusted Expander Processor) provides direct physical/electrical execution. It establishes high-bandwidth synchronization between main controller chassis and remote expander chassis while maintaining lockstep execution across triple modular paths.

Hardware Specifications

Triple Modular Redundancy and Safety Integrity Features

The T8310 operates within a Triple Modular Redundant (TMR) 2oo3 voting architecture designed to ensure continuous availability and fault containment. Fault isolation circuits prevent localized electrical failures from propagating across adjacent processing channels or the expansion backplane bus.

Galvanic isolation rated at 500 VDC shields internal logic circuitry from external voltage transients and signal ground loops. In the event of a critical communication integrity loss across all three channels, the module executes a deterministic fail-safe state transition within 10 ms.

Frequently Asked Questions

Q: Can the T8310 processor be hot-swapped during active system operation?

A: Yes, the T8310 supports live removal and insertion in an energized expander chassis provided the redundant partner processor is fully operational and synchronized.

Q: What happens if one processing channel in the T8310 experiences a hardware fault?

A: The TMR 2oo3 voting logic isolates the degraded channel automatically and degrades gracefully to a 2oo2 operating mode without interrupting active process execution.

Q: What cable specification is required for the expander bus connection?

A: High-speed expander bus connections require factory-approved shielded twisted-pair cables with 360-degree ground shields terminated at the chassis connector frame.

Field Installation Guidelines

1. Verify that the expander chassis slot guide rails are clean and free of foreign particles prior to insertion.
2. Align the module circuit board with the upper and lower slot guides and push firmly until the rear backplane connectors seat completely.
3. Secure the upper and lower retaining thumbscrews to establish chassis ground continuity and prevent vibration displacement.
4. Maintain a minimum vertical ventilation gap of 50 mm above and below the chassis enclosure to ensure proper thermal dissipation profiles.
5. Ground all communication cable shields at the designated chassis grounding bar to eliminate common-mode noise interference.
