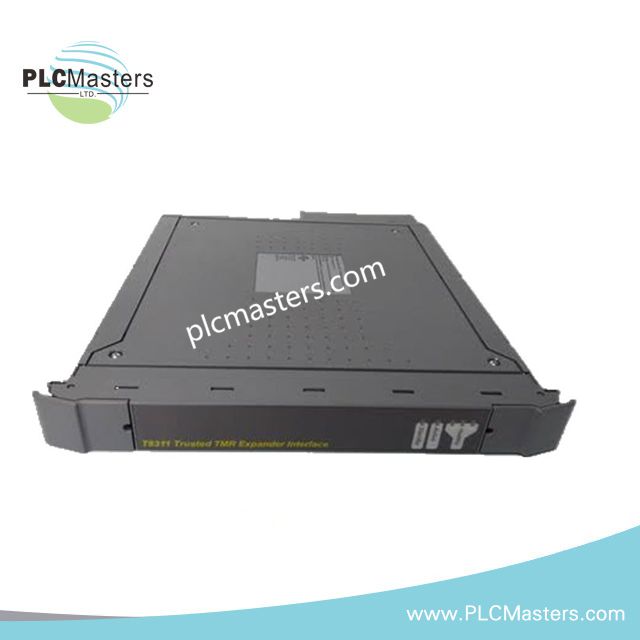

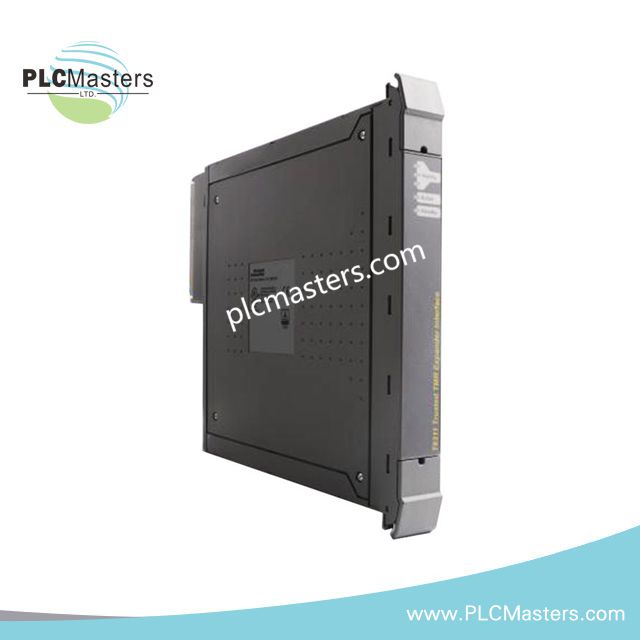

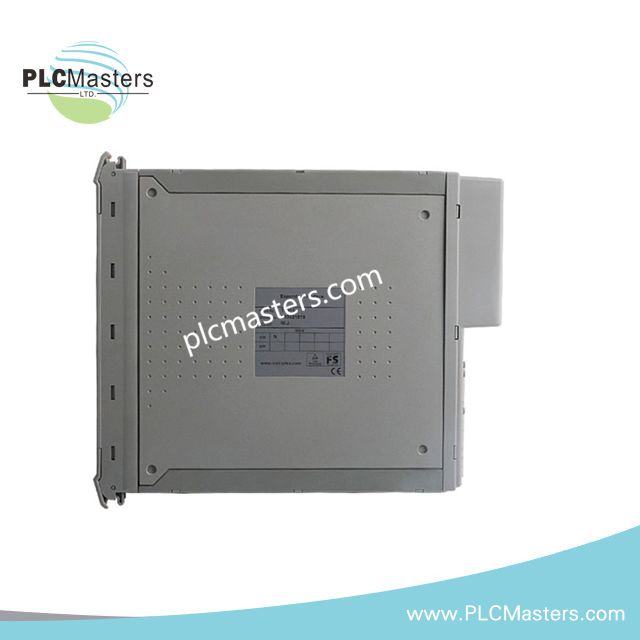

ICS Triplex T8311 Trusted TMR Expander Interface

ICS Triplex T8311 Trusted TMR Expander Interface

The ICS Triplex T8311, also cataloged as the T8311 Trusted TMR Expander Interface, operates as a dedicated hardware component for I/O expansion and bus communication execution within Trusted T8300 TMR chassis systems. It establishes high-bandwidth interconnectivity between the main processor chassis and auxiliary expander chassis. By facilitating high-speed data transmission across the expander bus backplane, the unit enables real-time signal transfer and deterministic execution without degrading overall system scan times.

Hardware Specifications

Safety Integrity & TMR Architecture

The T8311 module integrates directly into the fault-tolerant architecture of the Trusted system, supporting Triple Modular Redundancy (TMR) with 2oo3 voting mechanisms across fault domains. Physical and electrical galvanic isolation is implemented across channels and backplane interfaces to prevent fault propagation between chassis segments. Built-in hardware diagnostics constantly monitor module clock alignment at 50 MHz and bus data integrity at 250 Mbps. In the event of a bus fault or communication failure, the interface executes safe-state fail-over protocols, isolating the affected channel while maintaining continuous operation across remaining redundant pathways to uphold SIL3 safety requirements.

Frequently Asked Questions

Q: Can the T8311 interface module be hot-swapped during active system operation?

A: Yes, the T8311 supports live replacement within a powered T8300 chassis, provided the redundant expander bus pair is active and signal integrity checks are verified prior to module removal.

Q: What power bus considerations apply when installing the T8311 into a T8300 chassis?

A: The module draws power directly from the 20 to 32 VDC chassis backplane bus, dissipating up to 40 W of heat. Power distribution calculations for the chassis must account for this 40 W load to ensure thermal limits are maintained.

Field Installation Guidelines

1. Ensure the T8300 chassis power rails are stable within the 20 to 32 VDC operating range before inserting the module into its designated slot.
2. Align the module card edges with the chassis guide rails and push firmly until the backplane connectors fully engage.
3. Tighten the top and bottom retaining screws to hand tightness to secure mechanical retention and establish low-impedance ground bonding.
4. Route high-speed expander bus cables using standard industrial cable management brackets, maintaining minimal bend radii and strict physical separation from high-voltage AC power lines.
5. Verify that backplane bus shield connections meet single-point or low-impedance grounding specifications to prevent electromagnetic interference and signal degradation.
