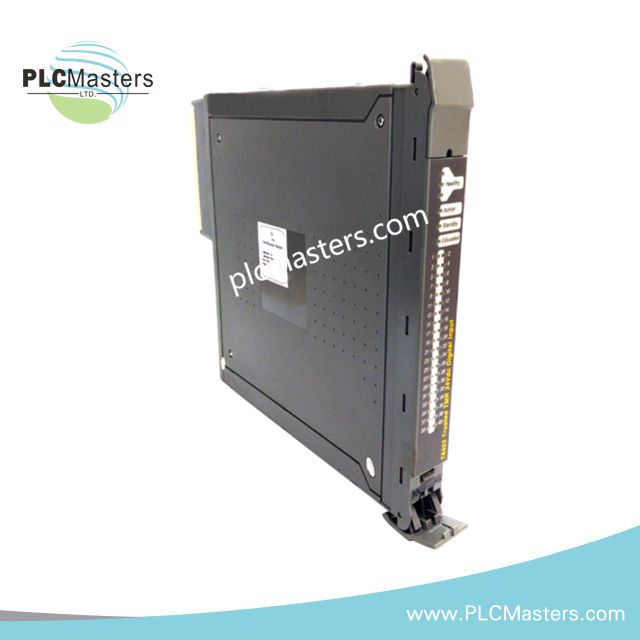

ICS Triplex T8451CX Trusted TMR Digital Output Module

Configured for 24 VDC discrete actuator control in Trusted TMR SIS platforms, the ICS Triplex T8451CX (T8451 Trusted TMR Digital Output Module) provides 40 fault-tolerant digital output channels. The module uses three isolated logic slices with 2oo3 hardware voting and five electrically isolated field power groups.

Hardware Specifications

Trusted TMR Architecture and Output Diagnostics

The T8451CX contains three isolated internal logic slices receiving output data from the Trusted TMR Processor. Each slice participates in a 2oo3 majority voting process through a six-element internal hardware voter array.

The 40 outputs are divided into five electrically isolated field power groups. Each group contains eight output channels, limiting electrical fault propagation between field supply sections.

Integrated diagnostics monitor output circuits and field wiring conditions. The module detects short circuits, open circuits, and related loop faults through automated testing and output current diagnostics.

The CX configuration uses conformal coating for additional protection against humid and corrosive industrial environments. The module also supports online replacement without system shutdown or process interruption.

Frequently Asked Questions

Q: How does the T8451CX maintain output fault tolerance?

A: Three isolated logic slices process the output data, while a 2oo3 voting structure determines the commanded output state.

Q: How are the 40 output channels electrically grouped?

A: The channels are divided into five isolated field power groups, with eight outputs assigned to each group.

Q: Can the T8451CX be replaced while the Trusted system remains energized?

A: The supplied specifications identify the module as hot-swappable, permitting online replacement without powering down the system.

Field Installation Guidelines

Install the T8451CX in the specified Trusted system carrier and verify mechanical engagement before wiring field circuits.

Confirm that the field supply remains within the specified 18 VDC to 32 VDC operating range before energizing outputs.

Keep field output wiring separated from high-voltage switching conductors and other sources of electromagnetic interference.

Route signal and power conductors according to the system installation design, maintaining appropriate separation between independent power groups.

Terminate cable shields according to the site grounding architecture and avoid creating unintended ground-current paths.

Verify actuator polarity, output load compatibility, field power grouping, and protective bonding before commissioning.

Check open-circuit, short-circuit, and loop diagnostic indications during functional testing before placing connected safety functions into service.

For hot-swap replacement, follow the Trusted system maintenance procedure and confirm module identification before removing or inserting the assembly.
