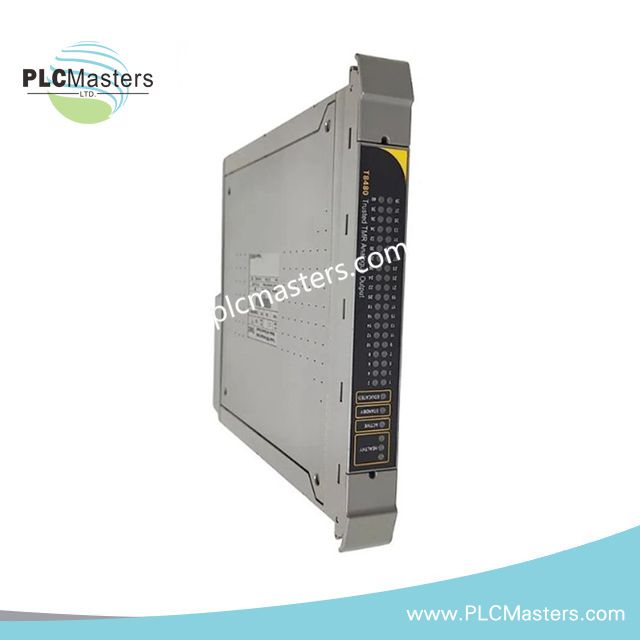

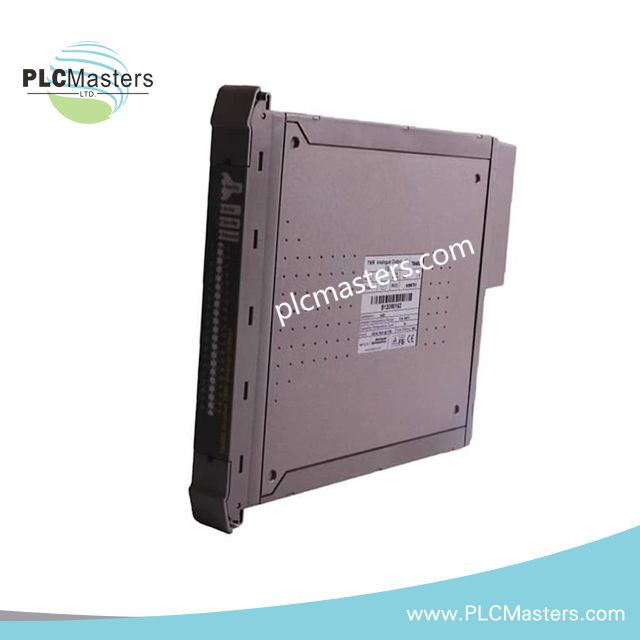

ICS Triplex T8480 Trusted TMR Analog Output Module

ICS Triplex T8480 Trusted TMR Analog Output Module

Configured for high-integrity loop control in Safety Instrumented Systems (SIS), the ICS Triplex T8480 (T8480 Analog Output Module) provides direct physical/electrical execution. It operates within the Trusted 2oo3 voting framework to output 4-20 mA command signals to end elements. The assembly implements hardware fault tolerance across all channel processing electronics to sustain system functionality during internal hardware faults.

Hardware Specifications

Triple Modular Redundant Architecture and SIL3 Execution

The T8480 incorporates a Triple Modular Redundant (TMR) architecture with 2oo3 (two-out-of-three) hardware voting across its 40 output channels to enforce a fail-safe state. Each individual channel path is independently executed by three distinct system processing legs. Integrated galvanic isolation separates the low-voltage backplane logic from field supply transients up to 32 VDC limit ceilings. Continuous internal diagnostic routines monitor output drive transistors and loop currents in real time, rapidly isolating detected leg failures to prevent loop disruption and ensure uninterrupted fault-tolerant operation in SIL 3 safety instrumented loops.

Frequently Asked Questions

Q: How does the module handle a single leg hardware failure during live operation?

A: The internal 2oo3 voting logic isolates the faulty channel leg while the remaining two legs maintain target output current (4-20 mA) without interruption to field actuators.

Q: What are the primary power requirements for the field side versus the backplane?

A: The module logic requires a 20 to 32 VDC backplane (IMB) supply, while the output loop circuits require a dedicated 18 to 32 VDC field supply with withstand protection up to 36 VDC.

Field Installation Guidelines

• Ensure the module slot backplane connectors are clear of debris prior to insertion into the Trusted chassis.
• Verify field supply voltage polarity and keep levels within the recommended 18 to 32 VDC operating range before energizing loops.
• Route analog signal wiring in shielded twisted-pair cables separate from high-voltage or AC power lines to prevent EMI coupling.
• Ground cable shields at a single designated terminal point on the enclosure side to eliminate ground loop currents.

Field Installation Guidelines

• Ensure all power source feeds are locked out before inserting or removing field terminal block connections.
• Maintain minimum bending radius guidelines for field signal lines entering the cabinet cable glands.
• Verify chassis earth ground conductivity using an approved milliohm meter prior to commissioning.
