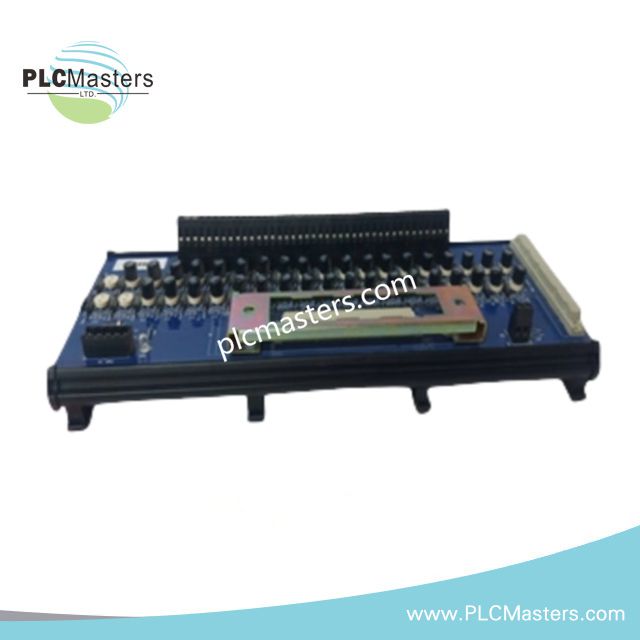

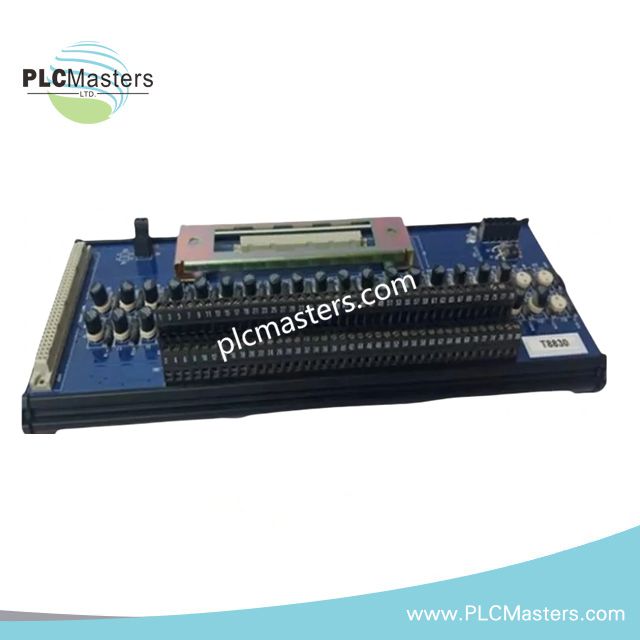

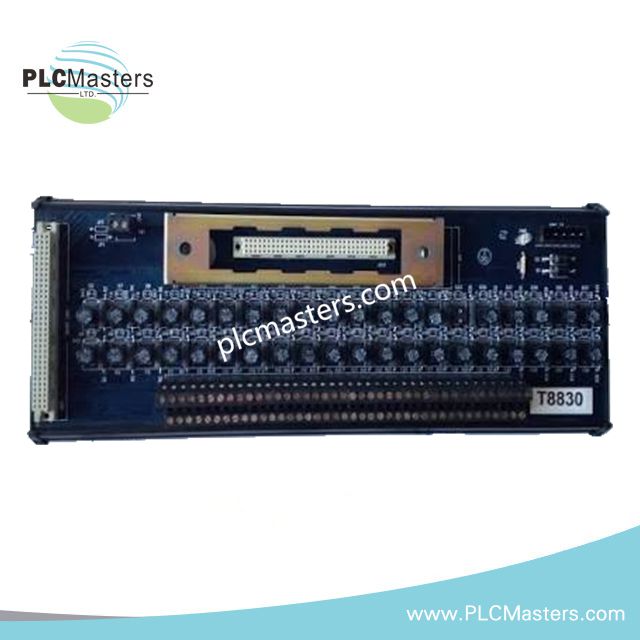

ICS Triplex T8830C Trusted Analogue Input Field Termination Assembly

Configured for 40-channel analogue field signal termination in the Trusted TMR System, the ICS Triplex T8830C (T8830 Field Termination Assembly) provides direct electrical interfacing between 2-wire field devices and compatible Trusted analogue input modules such as the T8431. Internal 250 ohm precision resistors convert 4-20 mA signals to 1-5 VDC for system processing.

Hardware Specifications

TMR Signal Isolation and Fail-Safe Interface

The T8830C provides the field-side termination interface for a Trusted Triple Modular Redundant analogue input architecture. Each channel incorporates a 250 ohm precision resistor for current-to-voltage conversion and an individual 50 mA fuse for channel-level protection. Field power is supplied through dual 24 VDC sources with diode commoning for redundant supply connection.

Channel-by-channel power isolation limits the effect of a field-side electrical fault on other terminated channels. The SmartSlot interface supports module replacement without requiring removal of the field wiring from the termination assembly.

Frequently Asked Questions

Q: What analogue signals can the T8830C terminate?
A: It accepts 0-20 mA and standard 4-20 mA analogue field signals. A 250 ohm resistor converts a 4-20 mA signal to a corresponding 1-5 VDC signal.

Q: Does the T8830C support hot swapping?
A: Yes. The assembly provides SmartSlot connector support for replacement of compatible modules while maintaining the field termination arrangement.

Q: How is channel-level protection implemented?
A: Each channel has an individual 50 mA fuse. The field power arrangement also uses dual 24 VDC sources with diode commoning for redundant supply connection.

Field Installation Guidelines

Mount the T8830C on a compatible TS32 or TS35 DIN rail in the specified horizontal or vertical orientation. Terminate field devices using the standard 2-wire screw terminal arrangement and maintain clear separation between analogue signal wiring and higher-energy conductors.

Verify the 24 VDC field supply connections before energizing the assembly. Check polarity, fuse continuity, and the field power status LED. The 250 ohm channel resistors should be treated as part of the signal conversion path when verifying loop measurements.

Use appropriate cable shielding and grounding practices for low-level analogue signals. Route analogue wiring to minimize coupling from AC power, switching outputs, and other high-noise circuits. During SmartSlot replacement, follow the applicable Trusted system maintenance procedure and avoid disturbing field termination wiring.
