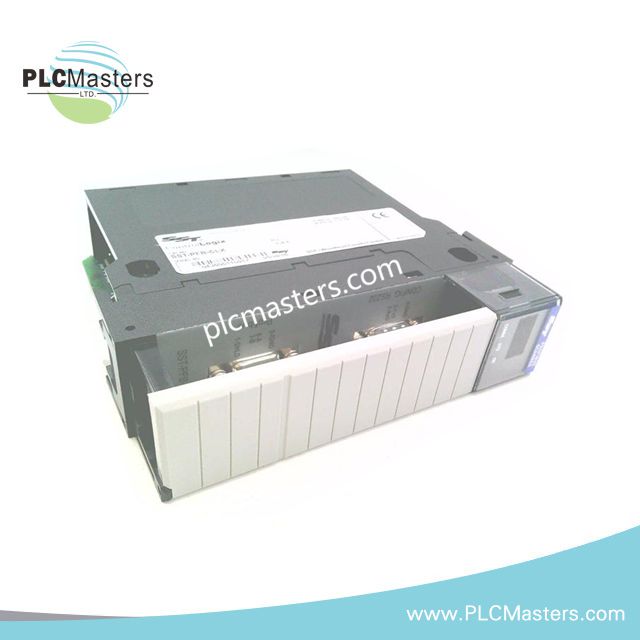

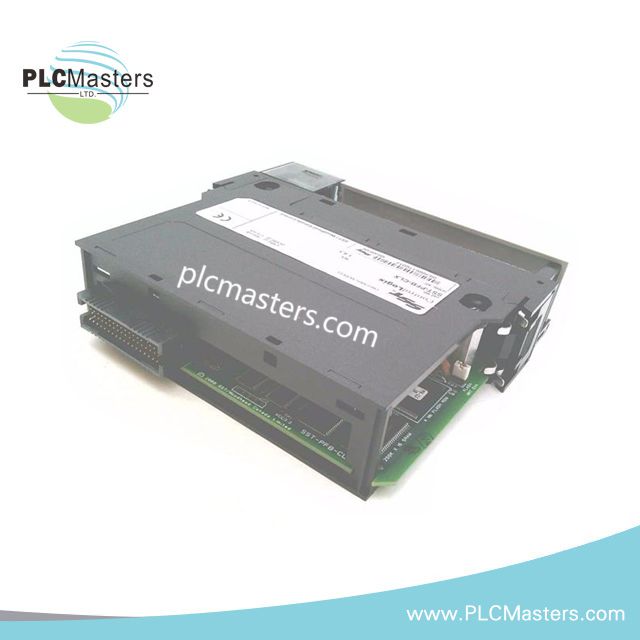

Molex SST-PFB-CLX PROFIBUS Communication Module
$123.00
$320.00
Description
Molex SST-PFB-CLX PROFIBUS Communication Module
Configured for PROFIBUS DP communication in an Allen-Bradley ControlLogix chassis, the Molex SST-PFB-CLX (SST-PFB-CLX PROFIBUS communication module) provides direct backplane-to-network data exchange.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SST-PFB-CLX |
| Brand | Molex / SST |
| Product Type | PROFIBUS Communication Module |
| Application Platform | Allen-Bradley ControlLogix 1756 chassis |
| Network Protocol | PROFIBUS DP-V0 / DP-V1 |
| Operating Modes | PROFIBUS DP Master Class 1, Class 2; DP Slave |
| Baud Rate | 9.6 kbps to 12 Mbps, configurable or auto-detected |
| PROFIBUS Interface | 1 x 9-pin D-Sub female connector |
| Additional Interface | 1 x RS-232 serial configuration port |
| Additional Network Interface | 1 x RS-485 interface port |
| Maximum Slave Devices | Up to 125 PROFIBUS DP slaves in Master mode |
| Input Data Capacity | Up to 4,000 bytes |
| Output Data Capacity | Up to 4,000 bytes |
| Configuration Software | SST Console / Molex PROFIBUS Configuration Tool |
| Status Indicators | SYS, COMM, OK, ERR LEDs |
| Backplane Current | Approximately 850 mA at 5 VDC |
| Auxiliary Current | Approximately 1.75 mA at 24 VDC |
| Operating Temperature | 0 deg C to 60 deg C |
| Storage Temperature | -40 deg C to 85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 3.6 cm x 14.7 cm x 13.7 cm |
| Weight | 0.49 lb |
| Certifications | CE, UL, cUL, RoHS |
PROFIBUS Communication and ControlLogix Integration
The SST-PFB-CLX uses the ControlLogix chassis backplane for controller-side data exchange and configuration access. PROFIBUS DP-V0 supports cyclic process data transfer, while DP-V1 provides acyclic communication for parameterization and diagnostics.
The module supports PROFIBUS DP Master Class 1, Master Class 2, and Slave operating modes. Baud-rate configuration covers 9.6 kbps through 12 Mbps, with automatic detection also specified.

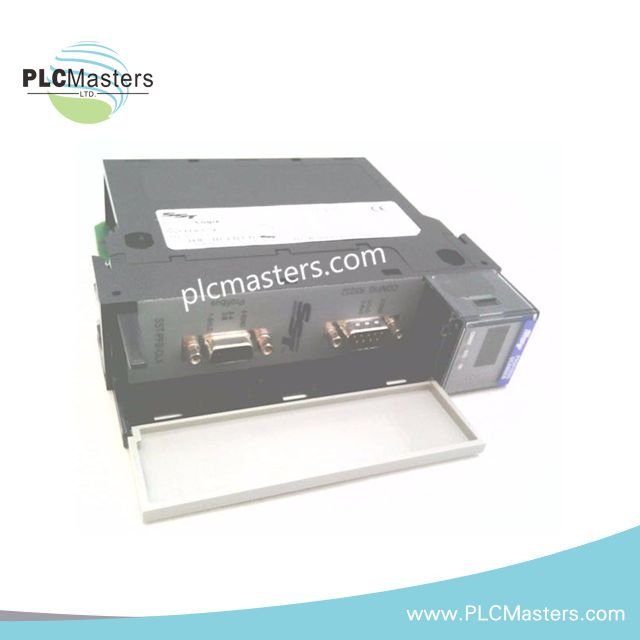

The PROFIBUS network connection uses a 9-pin D-Sub interface. The separate RS-232 configuration port provides serial access for module configuration, while the RS-485 interface is specified as an additional physical communication interface.
Frequently Asked Questions
Q: Can the SST-PFB-CLX operate as both a PROFIBUS Master and Slave?
A: The supplied specifications identify DP Master Class 1, Class 2, and DP Slave operating modes. Concurrent operation should follow the applicable configuration software and firmware documentation.
Q: What data capacity is specified for the module?
A: The module supports up to 4,000 bytes of input data and 4,000 bytes of output data.
Q: What should be checked before installing the module?
A: Verify the ControlLogix chassis slot, backplane power loading, PROFIBUS connector wiring, network termination, and configured baud rate before commissioning.
Field Installation Guidelines
- Install the module in a compatible Allen-Bradley ControlLogix 1756 chassis slot according to the chassis installation procedure.
- Confirm the chassis power budget before adding the module, using the specified 5 VDC and 24 VDC current requirements.
- Use PROFIBUS-compatible shielded cabling and maintain appropriate separation from high-voltage and high-current conductors.
- Terminate the PROFIBUS segment according to the network topology and PROFIBUS installation requirements.
- Bond cable shields according to the plant grounding scheme and avoid unintended ground-current paths through signal wiring.
- Secure the 9-pin D-Sub connector and verify pin assignments before applying network power.
- Keep RS-232 configuration wiring separated from high-energy switching circuits to reduce electromagnetic interference.
- Verify module status LEDs after startup, then confirm PROFIBUS network status before transferring process data.
- Do not change firmware or configuration parameters without verifying compatibility with the installed module revision and ControlLogix application.
