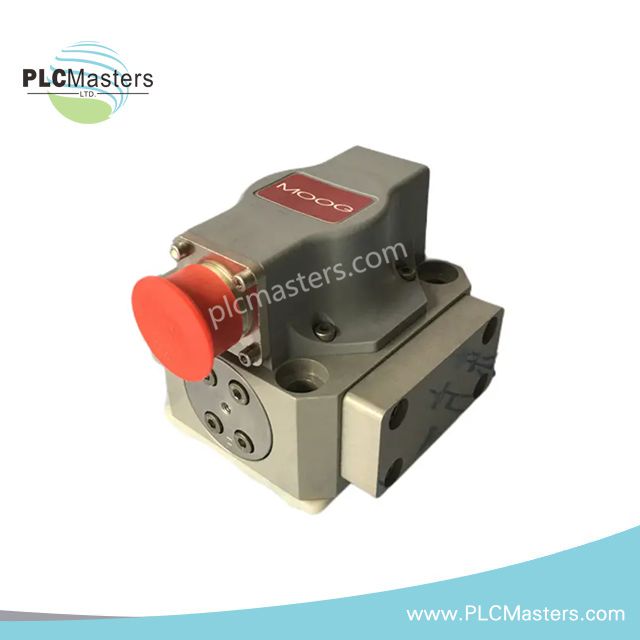

MOOG J761-003A Servo Valve
    MOOG J761-003A Servo Valve

    MOOG J761-003A Servo Valve

    • 1000 In stock

    • Manufacturer: MOOG

    • Product No.: J761-003A

    • Condition： In stock

    • Product Type: Servo Valve

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 2200g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":41989010882650,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"J761-003A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MOOG J761-003A Servo Valve","public_title":null,"options":["Default Title"],"price":21700,"weight":2200,"compare_at_price":36000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

    Description

    Overview

    The MOOG J761-003A is a high-performance, pilot-operated servo valve. Engineers use it in precision motion control for demanding hydraulic systems. Its two-stage design ensures fast response and accurate flow regulation. The valve integrates a nozzle-flapper pilot and a sliding spool output stage. As a result, it provides reliable control under high-pressure conditions.

    Technical Specifications

    • Manufacturer: MOOG Inc.

    • Model: J761-003A

    • Function: Pilot-operated servo valve for hydraulic flow control

    • Flow Rate: 0.5 to 75 L/min (0.125 to 19.5 GPM) at 35 bar (500 psi) drop

    • Operating Pressure: Supports up to 315 bar (4570 psi)

    • Pilot Stage: Nozzle-flapper torque motor for fast signal response

    • Output Stage: 4-land sliding spool, precision-ground for stability

    • Electrical Interface: Analog control input

    • Mounting: ISO 10372 Size 04 standard

    • Ambient Temperature Range: -29°C to 135°C (-20°F to 275°F)

    • Storage Temperature Range: -40°C to 60°C (-40°F to 140°F)

    • Vibration Resistance: 30 g, 3 axes, 10 Hz to 2 kHz

    • Shock Resistance: 30 g, 3 axes

    • Application: Industrial hydraulic systems requiring fine flow control

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
