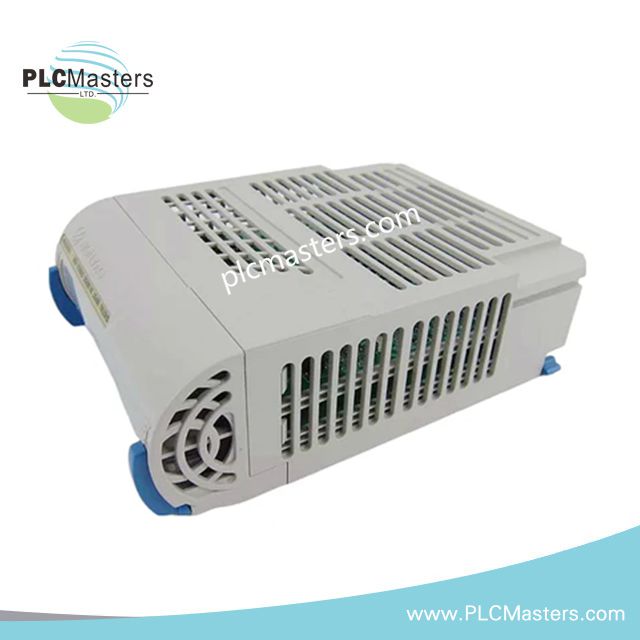

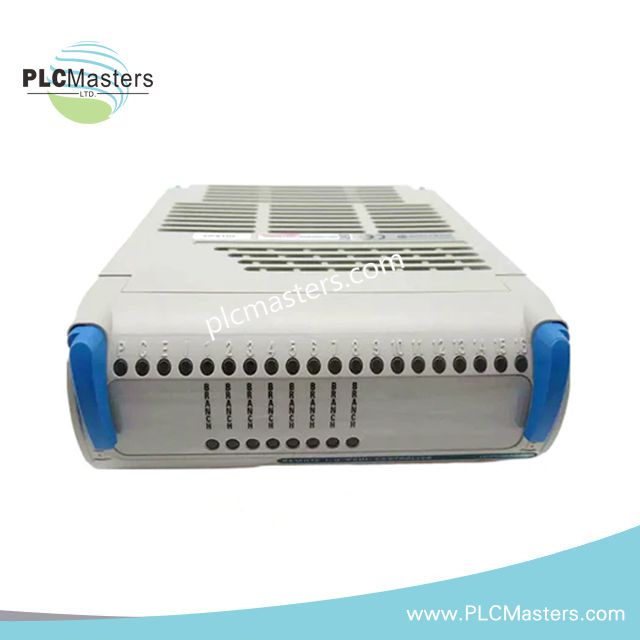

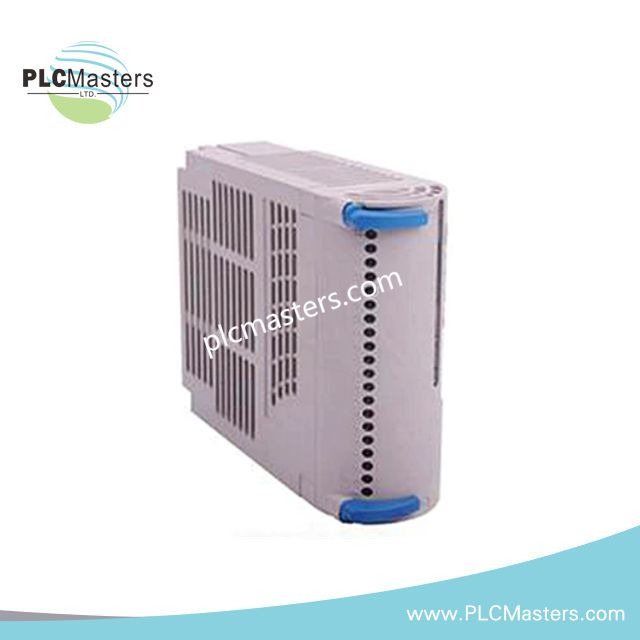

Ovation 5X00490G23 Analog Input Module

Overview

The 5X00490G23 is a high-performance analog input module for Emerson’s Ovation™ DCS. It acquires precise analog signals from transmitters, sensors, and control devices. Advanced signal processing ensures accurate measurements for critical industrial applications. The module supports real-time monitoring and robust diagnostics for enhanced reliability. It suits power generation, water treatment, and process automation environments.

Technical Specifications

• Channels: Multiple analog input channels, typically 8 or 16 depending on configuration

• Signal Type: Standard analog signals such as 4–20 mA or ±10 VDC

• Resolution: High-resolution A/D conversion for precise measurement

• Accuracy: ±0.1% of full scale or better

• Update Rate: Fast sampling for real-time process control

• Diagnostics: Integrated fault detection and signal integrity monitoring

Electrical Characteristics

• Power Supply: 24 VDC

• Isolation: Galvanic isolation between input channels and system bus

• Surge Protection: Built-in transient suppression

• Input Impedance: Optimized for minimal signal loading

Mechanical & Environmental

• Mounting: DIN rail or rack-mounted in Ovation I/O chassis

• Design: Modular plug-in style for easy installation and replacement

• Operating Temperature: –40°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Shock Resistance: 10g, 11 ms half-sine wave

• Vibration Resistance: 5–16 Hz: 1 mm displacement; 16–150 Hz: 0.5 g acceleration

• Airborne Contaminants: Rated to ISA-S71.04 Class G3
