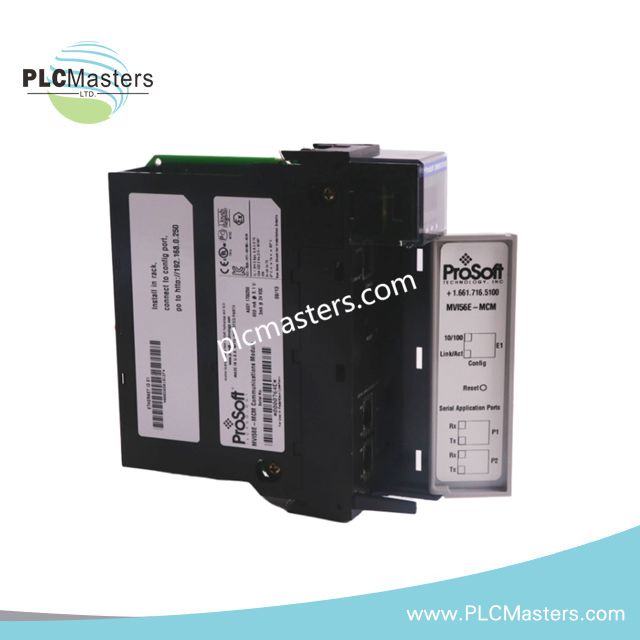

ProSoft MVI56E-MNETQ Modbus TCP/IP Enhanced Communication Module

The ProSoft MVI56E-MNETQ, also cataloged as the MVI56E-MNETQ Modbus TCP/IP Interface Module, operates as a dedicated hardware component for high-speed protocol translation and data exchange within Allen-Bradley ControlLogix 1756 backplane architectures.

Hardware Specifications

Protocol Conversion Latencies & QoS Prioritization

The MVI56E-MNETQ executes deterministic packet processing to mitigate protocol conversion latencies when translating ControlLogix backplane I/O data to Modbus TCP/IP frames. Utilizing integrated Quality of Service (QoS) tagging compliant with IEEE 802.1p/Q standards, the module prioritizes mission-critical Modbus read/write packets over standard industrial Ethernet traffic during network congestion events. High-speed backplane transfer routines ensure that internal memory updates across the 10,000-word database occur with minimal processing jitter, suppressing data latency between 1756 processor tags and remote client/server endpoints.

Frequently Asked Questions

Q: What are the backplane power supply considerations when installing the MVI56E-MNETQ into a ControlLogix chassis?

A: The module draws 800 mA at 5 VDC and 3 mA at 24 VDC directly from the 1756 backplane power supply. Thermal calculation and current loading limits of the power supply module (e.g., 1756-PA72 or 1756-PB72) must account for this draw prior to installation.

Q: How does the Quality of Service (QoS) feature impact network packet performance?

A: QoS embeds EtherNet/IP and Modbus packet priority tags into the IP header. Managed network switches prioritizing IEEE 802.1p/Q queues route these control packets ahead of background diagnostic or HTTP web server traffic, suppressing cycle jitter on congested subnets.

Q: Can the MVI56E-MNETQ be configuration-loaded without disconnecting the primary Ethernet media?

A: Yes. Configuration parameters and command tables can be transferred via the front-panel mini-USB port using ProSoft Configuration Builder (PCB) or directly over the main Ethernet port via TCP/IP without disrupting backplane communication state execution.

Field Installation Guidelines

1. Backplane Insertion: Align the module with the top and bottom chassis guides of any available slot in a 1756 ControlLogix chassis. Slide firm until the module latches securely into the backplane connector.
2. Shielding & Grounding: Ensure the ControlLogix chassis is bonded to Functional Earth (FE) using heavy-gauge copper braid. Use shielded twisted-pair (STP) Cat 5e/6 Ethernet cabling. Drain wire shield must terminate at standard grounded RJ45 switch ports to prevent ground loops and surge voltage limits from exceeding component thresholds.
3. Cable Separation: Route Ethernet communications cabling in dedicated wireways separate from high-voltage AC lines, variable frequency drive outputs, and inductive load leads to maintain signal integrity and cross-talk suppression.
4. Configuration Port Usage: Keep the mini-USB protective cap sealed during normal operation in industrial environments to prevent airborne particulate contamination.
