ProSoft MVI69-PDPMV1 CompactLogix PROFIBUS DP Master Module
$123.00
$320.00
Description

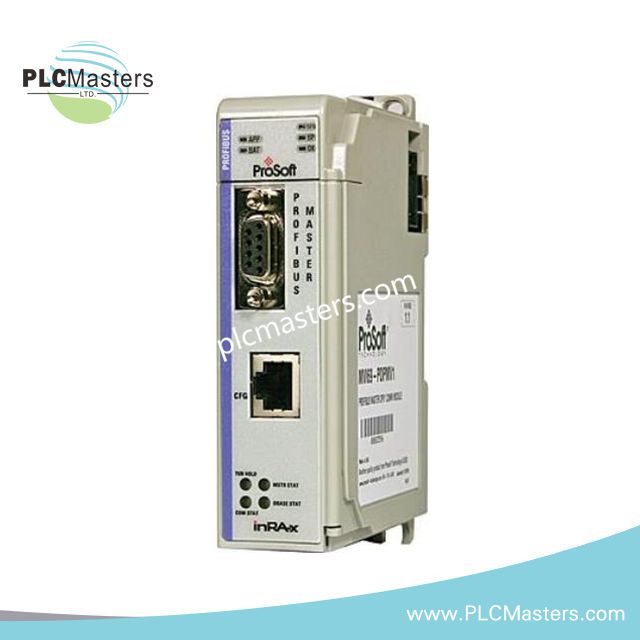

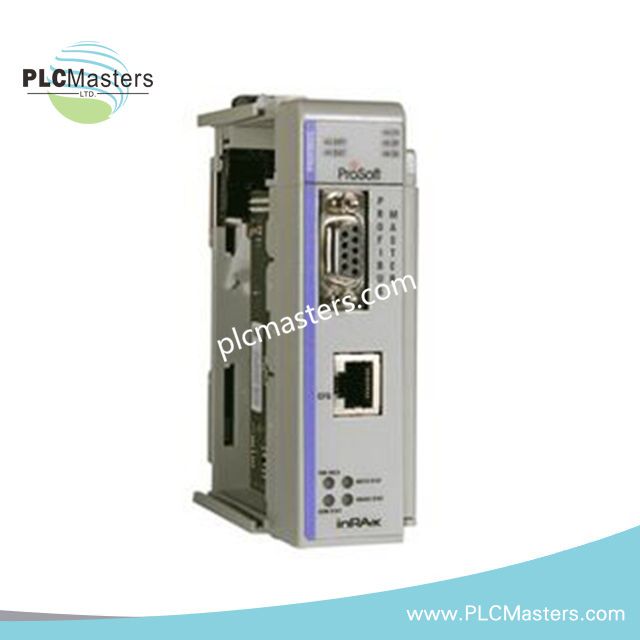

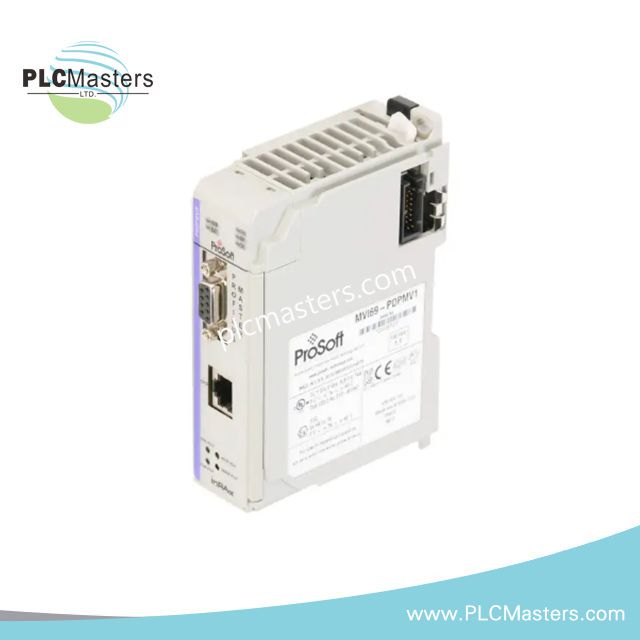

The ProSoft MVI69-PDPMV1, also cataloged as the MVI69-PDPMV1 Master Communication Module, operates as a dedicated hardware component for PROFIBUS DP Master (V1) network interfacing within Allen-Bradley CompactLogix and MicroLogix 1500 architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MVI69-PDPMV1 |
| Brand | ProSoft Technology |
| Origin | USA |
| Weight | 0.42 lbs |
| Dimensions | 4.6 cm x 15.2 cm x 8.9 cm |
| Operating Temp | 0 deg C to 60 deg C (32 deg F to 140 deg F) |
| Power Consumption | 800 mA @ 5 VDC (Backplane current load) |
| Platform Compatibility | Allen-Bradley CompactLogix (1769 backplane) and MicroLogix 1500 |
| Communication Ports | 1 x DB9 Female (RS-485 optically isolated PROFIBUS DP), 1 x RJ45 (RS-232 serial config) |
| Baud Rate | 9.6 kbps to 12 Mbps (Auto-baud detection) |
| Slave Capacity | Up to 125 PROFIBUS DP Slave devices |
| I/O Data Capacity | Up to 1536 bytes Input / 1536 bytes Output |
Protocol Conversion Latencies & Bus Integration
The MVI69-PDPMV1 interfaces directly over the local 1769 I/O backplane bus, functioning as an in-rack input/output module to achieve deterministic data transfer between the Rockwell Automation processor memory and connected field networks. Module communications process cyclic DP-V0 parameters alongside acyclic DP-V1 data messaging structures, minimizing internal protocol conversion latencies when polling variable frequency drives and process automation instrumentation. Dedicated optical isolation on the DB9 RS-485 transceiver stage suppresses common-mode voltage spikes and ground loops across network segments operating up to 12 Mbps.
Frequently Asked Questions
Q: What are the backplane power considerations when installing this module in a 1769 rack?
A: The MVI69-PDPMV1 draws 800 mA at 5 VDC directly from the 1769 backplane bus. The power supply distance rating and total rack current budget must be verified to prevent logic bus voltage dips.
Q: How is cyclic and acyclic data exchange managed between the module and controller?
A: Cyclic I/O and acyclic DP-V1 messaging are transferred across the backplane to the controller memory via standard ladder logic execution utilizing provided Add-On Instructions (AOI) and block transfer routines.
Field Installation Guidelines
- Power down the 1769 backplane expansion bank prior to inserting or removing the module. Hot-swapping on 1769 I/O buses without removing system power is not supported and may result in hardware damage.
- Secure the module onto the standard DIN rail using the top and bottom latch mechanisms, ensuring full connection with the adjacent 1769 bus connector.
- Terminate the PROFIBUS DB9 connector using standard RS-485 shielded twisted-pair cabling. Ensure line termination resistors are switched to ON at the physical end nodes of the PROFIBUS segment.
- Connect the RS-485 shield braid to the local protective earth (PE) ground clamp to maintain EMC immunity and mitigate high-frequency field noise.
