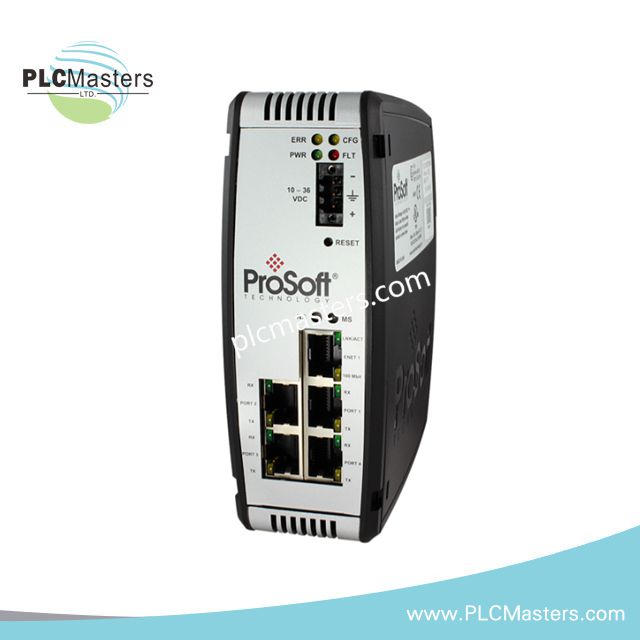

ProSoft PLX31-EIP-MBS4 Modbus Serial Gateway Module
$123.00
$320.00
Description
Product Description
The PLX31-EIP-MBS4 from ProSoft Technology is an industrial communication gateway engineered to exchange data between EtherNet/IP automation networks and multiple Modbus serial devices. The module belongs to the PLX31 series and provides four independently configurable serial channels for integrating legacy Modbus equipment into Rockwell Automation architectures.
This gateway is commonly deployed in applications where a single PLC must communicate with several isolated Modbus RTU or ASCII networks simultaneously. Its standalone DIN-rail design allows installation without occupying PLC rack space, making it suitable for both new automation systems and retrofit projects.
The module supports EtherNet/IP Scanner and Adapter functionality together with Modbus Master or Slave operation, allowing flexible protocol conversion in distributed control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Model | PLX31-EIP-MBS4 |
| Product Category | EtherNet/IP to Modbus Serial Gateway |
| EtherNet/IP Interface | 1 × RJ45, 10/100 Mbps |
| EtherNet/IP Modes | Scanner and Adapter |
| Supported CIP Connections | Up to 10 simultaneous connections |
| Class 3 Server Connections | 5 |
| Class 1 I/O Connections | 8 |
| I/O Connection Size | 248 bytes input / 248 bytes output |
| Maximum RPI | 5 ms per connection |
| Serial Ports | 4 independent RS-232/RS-485 ports |
| Modbus Protocols | Modbus RTU and Modbus ASCII |
| Modbus Modes | Master or Slave selectable |
| Baud Rate Range | 1,200 to 115,200 bps |
| Register Mapping | Up to 4,000 registers per configuration |
| Data Mapping Capacity | Up to 10,000 words |
| Power Supply | 10–36 VDC |
| Nominal Input Voltage | 24 VDC |
| Current Consumption | 300 mA typical @ 24 VDC |
| Maximum Current Load | 610 mA |
| Mounting Type | DIN Rail |
| Enclosure | Industrial metal housing |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 5–95% non-condensing |
| Compliance | CE, UL/cUL, RoHS, Class I Div 2 |
| Weight | 0.99 lbs |
Communication Architecture
The PLX31-EIP-MBS4 enables simultaneous communication between EtherNet/IP controllers and multiple serial Modbus segments. Each serial channel can be configured independently for different baud rates, node addressing, and protocol modes.
The gateway supports communication with:
-
Variable frequency drives
-
Power monitoring equipment
-
Flow analyzers
-
Remote terminal units
-
Legacy PLC systems
-
Process instrumentation
-
Distributed I/O devices
Configuration and Diagnostics
Setup and maintenance are performed through ProSoft Configuration Builder software using Ethernet connectivity. The integrated web diagnostic interface provides live monitoring and troubleshooting tools for commissioning and maintenance personnel.
Diagnostic functions include:
-
Ethernet communication statistics
-
Modbus exception reporting
-
Serial port activity monitoring
-
CIP connection diagnostics
-
Packet error counters
-
Connection health status
Key Features
-
Four isolated Modbus serial communication channels
-
EtherNet/IP to Modbus RTU/ASCII conversion
-
Independent serial-port configuration
-
High-speed cyclic data transfer
-
Compatible with ControlLogix and CompactLogix systems
-
Add-On Profile support for simplified PLC integration
-
DIN-rail industrial installation
-
Embedded diagnostic web server
-
Designed for continuous industrial operation
Application Examples
The PLX31-EIP-MBS4 is widely used in facilities requiring communication between Ethernet-based PLC platforms and multiple serial field networks.
Common applications include:
-
Water and wastewater treatment systems
-
Oil and gas process automation
-
Manufacturing production equipment
-
Power generation facilities
-
SCADA integration projects
-
Industrial modernization programs
-
Multi-network Modbus aggregation
FAQ
How many Modbus devices can the PLX31-EIP-MBS4 support?
The number depends on network configuration, polling rate, and baud speed. The four serial ports allow multiple Modbus segments to operate simultaneously.
Can each serial port use different communication settings?
Yes. Each serial interface can be independently configured for RS-232 or RS-485 operation, baud rate, and Modbus mode.
Which PLC platforms are compatible with this gateway?
The module is commonly integrated with Rockwell Automation ControlLogix, CompactLogix, and Micro800 systems through EtherNet/IP communication.
Does the module require rack installation?
No. The gateway is a standalone DIN-rail device and operates independently from the PLC chassis.
