ProSoft PS69-DPM PROFIBUS DPV1 Master Communication Module

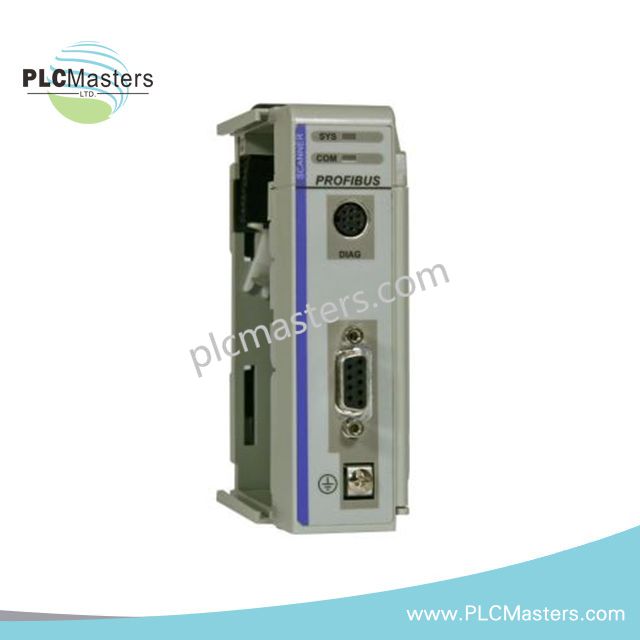

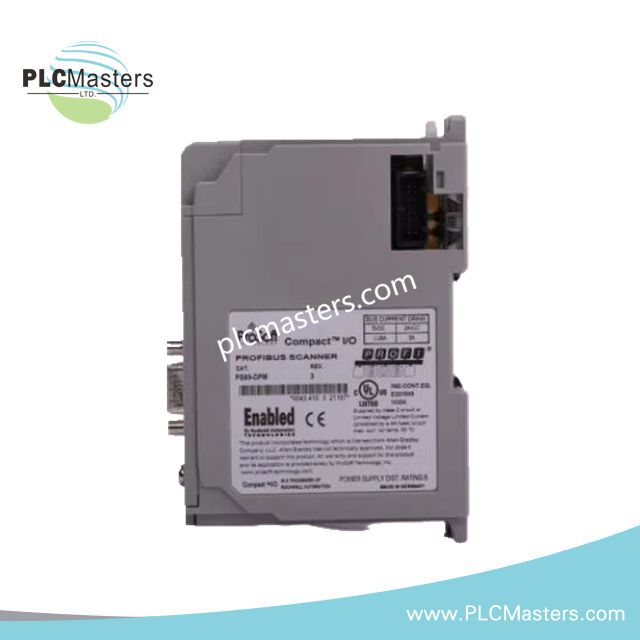

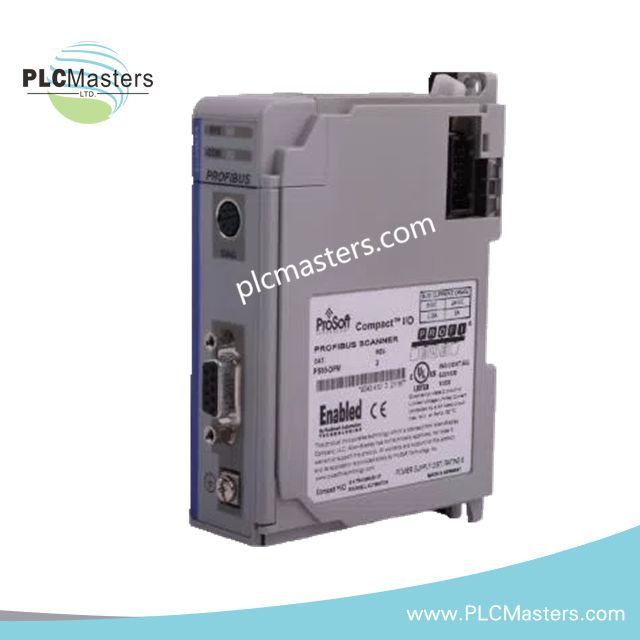

Configured for high-speed cyclic I/O and acyclic data exchange in CompactLogix and MicroLogix architectures, the ProSoft PS69-DPM (PS69-DPM PROFIBUS DPV1 Master Module) provides direct physical/electrical execution. It resides directly within the controller backplane, operating as an in-chassis network interface to manage field devices without requiring external protocol translation hardware.

Hardware Specifications

Protocol Conversion Latencies & Bus Stability

The PS69-DPM handles cyclic input/output buffer synchronization directly through backplane DMA transfers to maintain low-latency CIP messaging response times between the Logix controller and attached slave devices. The onboard physical layer circuitry is designed for high-frequency signal integrity, featuring strict capacitance tolerances (<30 pF/m) and internal surge isolation across the RS485 differential bus lines to prevent common-mode noise propagation on high-speed PROFIBUS runs up to 12 Mbit/s. Configuration data, slave network maps, and bus parameters are written directly to non-volatile onboard flash memory, ensuring immediate module startup and execution without manual firmware or parameter reloads following system power-cycle events.

Frequently Asked Questions

Q: How does the PS69-DPM handle network diagnostics and baud rate synchronization on a mixed-speed bus?

A: The module automatically detects and synchronizes to pre-configured master baud rates ranging from 9.6 kbit/s to 12 Mbit/s. Real-time diagnostic statistics—including bus cycle times, slave error counters, and token rotation times—are stored in internal status registers (88 bytes acyclic status data) and can be accessed continuously via standard CIP ladder logic messaging.

Q: What physical bus segment rules must be observed when connecting more than 32 PROFIBUS slave devices to a single module?

A: The physical RS485 driver inside the PS69-DPM supports up to 32 load units per bus segment. To scale to the maximum module capacity of 125 slave devices, RS485 repeaters must be installed between segments to satisfy signal drive specifications and maintain line impedance within the 135 to 165 ohm range.

Field Installation Guidelines

1. Power down the controller rack prior to inserting or removing the PS69-DPM module from the CompactLogix or MicroLogix backplane assembly.
2. Secure the module mechanically by tightening the DIN-rail latch and backplane mounting screws to maintain full chassis ground contact.
3. Terminate the PROFIBUS network segment by using approved DB9 connectors with built-in active termination resistors enabled at the physical start and end nodes of the bus.
4. Route the PROFIBUS cable through dedicated low-voltage instrument trays, maintaining a minimum physical separation of 200 mm from high-voltage AC lines or variable frequency drive cables.
5. Connect cable shield drainage wires directly to the functional ground block near the enclosure entrance to prevent ground loop noise from degrading high-baud-rate transmissions.
