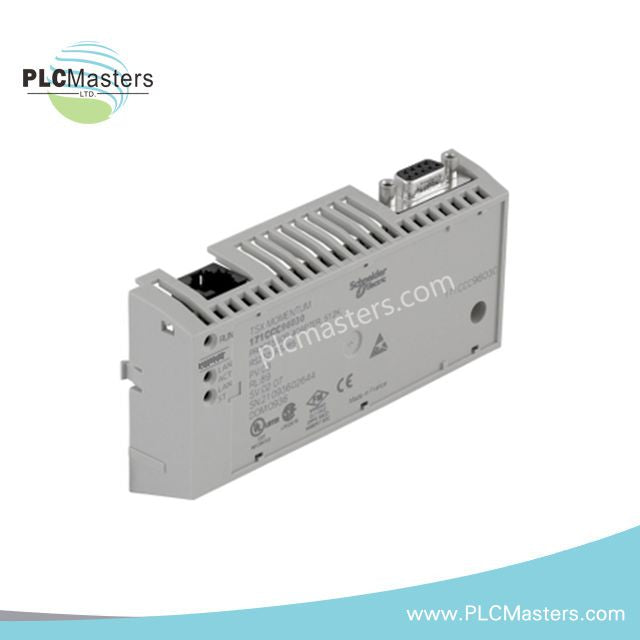

Schneider 171CCC96030 M1/M1E Processor Adapter

Overview

The Schneider 171CCC96030 is a high-performance M1/M1E processor adapter designed for the Modicon Momentum automation platform. It features a 50 MHz x86-based processor with 544 KB RAM and 1 MB flash memory. This combination makes it ideal for demanding industrial control tasks. The module includes built-in Ethernet for transparent ready communication. This ensures smooth integration into distributed control systems.

Technical Specifications

Product Type: Processor Adapter
Platform Compatibility: Modicon Momentum series
Processor Type: x86-based (Intel, AMD)
Clock Speed: 50 MHz
Memory:

• RAM: 544 KB

• Flash: 1 MB
  Word Length: 16-bit

Communication Ports:

• 1 × Ethernet port (top left)

• 1 × I/O bus port (top right)

Programming Software Compatibility:

• Concept V2.6

• Modsoft ≥ V2.5

• ProWORX NxT V2.0

• ProWORX 32

Material: Lexan
Local Signaling: 3 LED indicators (status, communication, fault)
Power Supply: 5 V DC ±5% (from I/O base)
Mounting: On Momentum I/O base

Environmental Ratings:

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −40°C to +85°C

• Relative Humidity: 5% to 95% (non-condensing)

• Operating Altitude: Up to 2000 m

• Shock Resistance: ≤ 15 gn peak, 11 ms half sine wave

• Vibration Resistance: 1 gn, 0.75 mm displacement

Performance:

• Instruction Time: 1 ms per 1 K instruction

• Discrete I/O Capacity: 8192 inputs/outputs

• Register I/O Capacity: 26048 inputs/outputs

• I/O Limit: 8192 bits max

• I/O Words/Drop: 128 I/O (Concept), 80 I/O (ProWORX)

Certifications:

• CE Marking

• UL, cUL, FM Class 1 Division 2

• NEMA Type 250

Packaging:

• Package Dimensions: 26 × 18 × 6 cm

• Package Weight: 197 g
