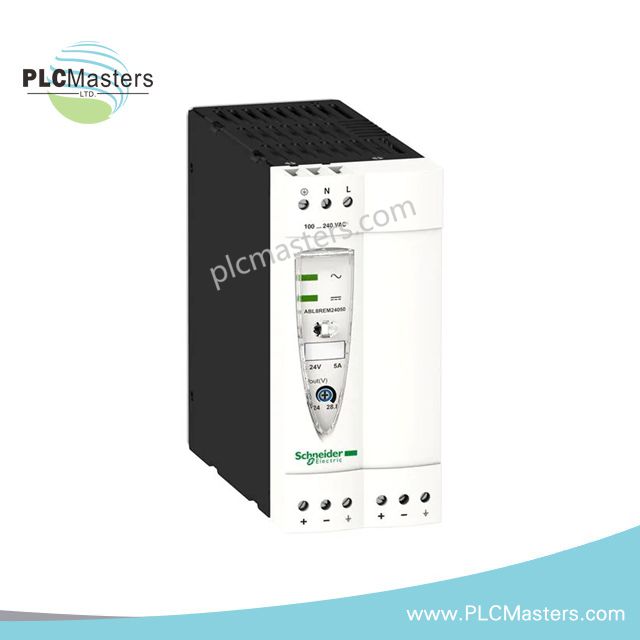

Schneider ABL8REM24050 Regulated Switch Mode Power Supply

Overview

The Schneider ABL8REM24050 is a Phaseo regulated switch mode power supply. It delivers a reliable 24 V DC output at 5 A. You can easily mount it on a 35 mm DIN rail. Its compact size suits various industrial automation systems. It supports PLCs, sensors, and control relays. The power supply accepts a wide input voltage range, making it suitable for global use.

Technical Specifications

• Part Number: ABL8REM24050

• Product Type: Regulated Switch Mode Power Supply

• Input Voltage: 100–240 V AC (single-phase), 110–220 V DC

• Input Frequency: 50/60 Hz

• Output Voltage: 24 V DC (adjustable 100%–120%)

• Output Current: 5 A

• Rated Power: 120 W

• Efficiency: 85%

• Power Factor: 0.65

• Inrush Current: 30 A

• Output Protection: Overload, short-circuit, overvoltage, undervoltage (auto reset)

• Input Protection: Integrated non-replaceable fuse

• Status Indicators: 1 green LED (output OK), 1 orange LED (input status)

• Connections: Screw terminals (AWG 26–14)

• Mounting: Symmetrical 35 mm DIN rail

• Operating Temperature: 0°C to 50°C (derate above 50°C)

• Storage Temperature: -40°C to 85°C

• Protection Rating: IP20 (IEC 60529)

• Dimensions (W × H × D): 54 × 120 × 120 mm

• Weight: Approx. 1 kg
