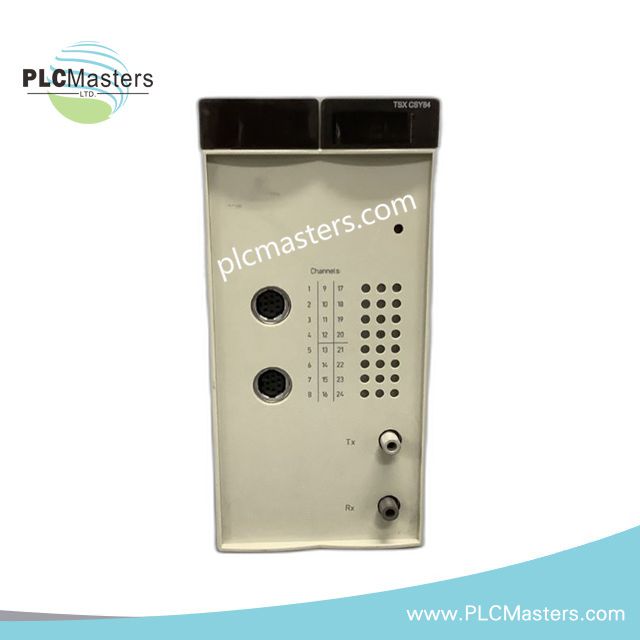

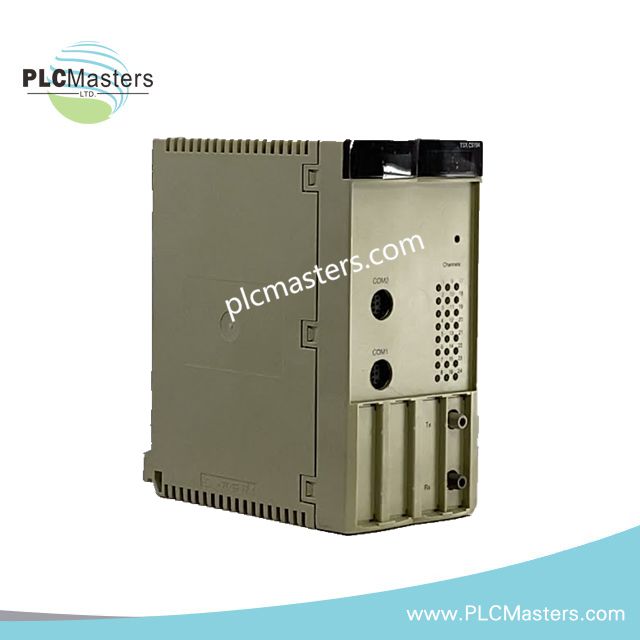

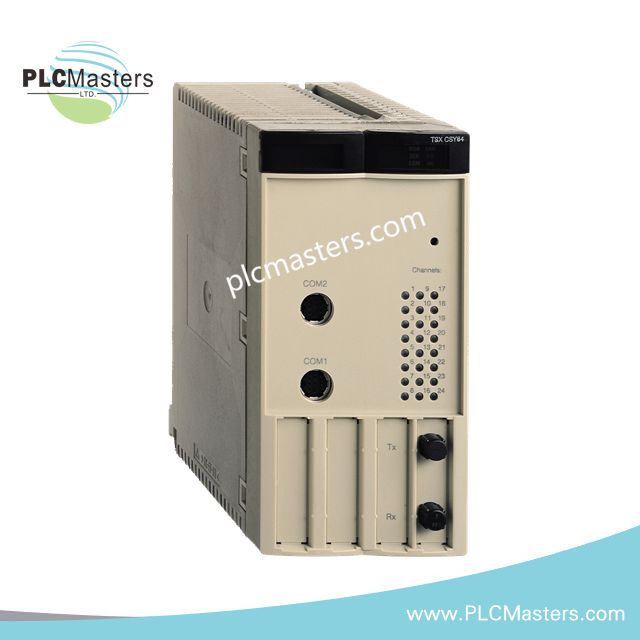

Schneider Electric TSXCSY84 Multi Axis Control Module

Product Overview

The Schneider Electric TSXCSY84 is a high-performance multi-axis control module designed for Modicon Premium automation systems. It efficiently manages up to eight real servo axes, four virtual axes, and four remote axes, providing precise motion control through the SERCOS digital servo network. Moreover, its fiber optic ring topology ensures reliable, high-speed communication for complex industrial applications. The module combines robust design with advanced functionality, supporting synchronized motion, cam profiling, and auxiliary axis following.

Key Features

• Controls up to 8 real, 4 virtual, and 4 remote axes simultaneously.

• Supports SERCOS 2 digital servo drives with fiber optic connectivity.

• Provides synchronized motion, cam profiles, and linear path functions.

• High-speed operation with 4 Mbit/s transmission and 2–4 ms cycle times.

• Diagnostic LEDs provide clear status for module, channels, and communication.

• Compact, industrial-grade design with IP20 protection and 0–60°C operating range.

• Power-efficient, consuming only 9 W with 1800 mA at 5 V DC.

Technical Specifications

• Product Type: Multi-axis control module

• Platform: Modicon Premium Automation System

• Application: Motion control for SERCOS digital servo drives

• Number of Channels: 32

• Number of Axes: 8 real, 4 virtual, 4 remote

• Path Function: Auxiliary axis following, simple linear path

• Cam Profiles Supported: 7

• Communication Network: SERCOS 2, ring topology

• Transmission Medium: Fiber optic cable

• Transmission Rate: 4 Mbit/s

• Cycle Time: 2 ms (2 axes), 2 ms (4 axes), 4 ms (8 axes)

• Max Segment Length: 150 m glass fiber, 38 m plastic fiber, 100 m Bus X

• Power Dissipation: 9 W

• LED Indicators: RUN (green), I/O fault (red), ERR (red), SER (yellow), INI (yellow), 24 channel diagnostic LEDs

• Operating Temperature: 0–60 °C (32–140 °F)

• Humidity: 10–95% non-condensing

• Standards Compliance: EN/IEC 61491

• IP Rating: IP20

• Weight: 0.52 kg

Typical Applications

• High-precision multi-axis servo control in industrial automation lines.

• Coordinated motion systems requiring cam profiling and auxiliary axes.

• Integration with SERCOS-enabled robotic arms, conveyors, or machining centers.

• Retrofitting or upgrading Modicon Premium systems with advanced motion capabilities.

FAQ

Q1: How many axes can the TSXCSY84 control simultaneously?
A1: The module manages 8 real axes, 4 virtual axes, and 4 remote axes.

Q2: Which communication network does it support?
A2: It supports SERCOS 2 digital servo drives over fiber optic networks.

Q3: What is the maximum cycle time for all axes?
A3: Cycle times range from 2 ms for 2 or 4 axes to 4 ms for 8 axes.

Q4: Is the module suitable for harsh industrial environments?
A4: Yes, it operates from 0–60°C with IP20 protection and non-condensing humidity up to 95%.
