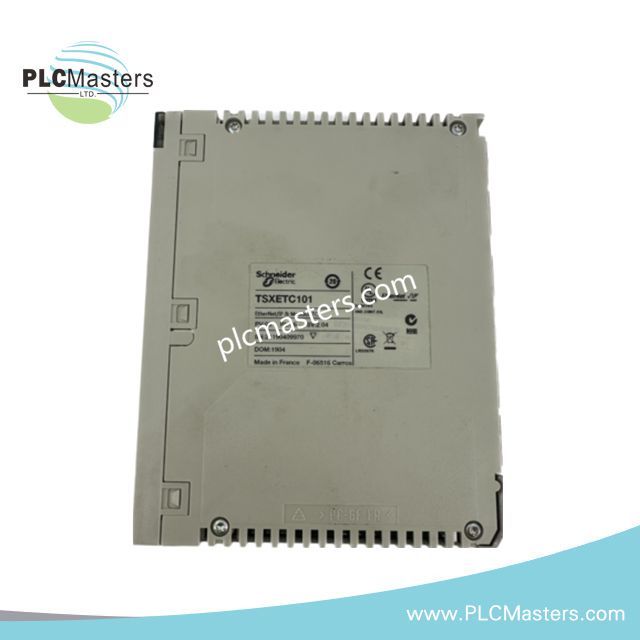

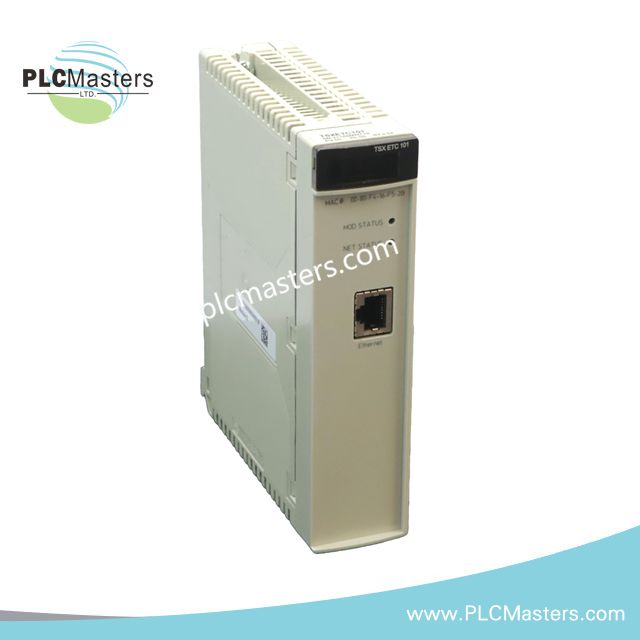

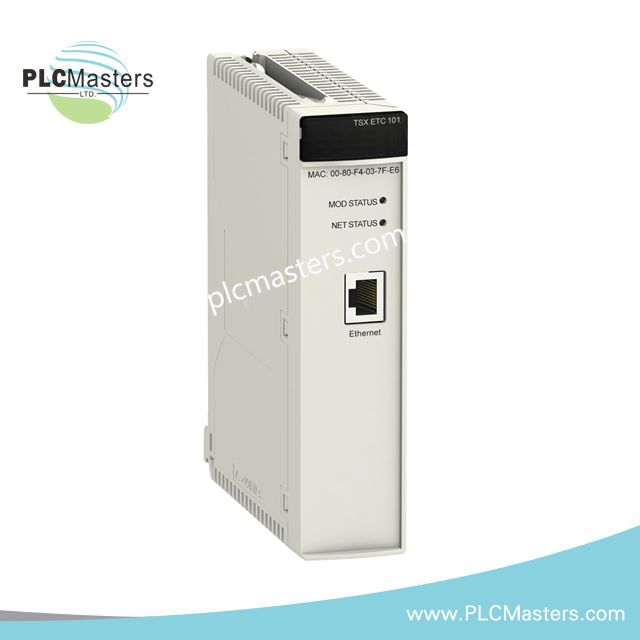

Schneider Electric TSXETC101 Ethernet Communication Module

Product Overview

The TSXETC101 provides reliable Ethernet connectivity for the Modicon Premium automation platform, enabling high-performance communication across demanding industrial networks. It supports EtherNet/IP and Modbus TCP protocols, allowing seamless integration with PLCs, SCADA systems, and third-party automation devices. The module includes an embedded web server that simplifies configuration and diagnostics without additional software. Engineers value its long-term operational stability and effortless scaling in large control architectures.

Key Benefits & Functional Highlights

The module delivers deterministic real-time data exchange for both control and monitoring tasks across factory networks. Moreover, the dual CIP messaging options support both implicit I/O transfer and explicit client/server communication, which increases flexibility for machine builders. In addition, the onboard LEDs offer clear diagnostics at a glance, reducing troubleshooting time in the field. The TSXETC101 maintains full performance under heavy data loads and supports up to 128 simultaneous Ethernet connections.

Technical Specifications

Product Range: Modicon Premium Automation Platform
Module Type: Ethernet Communication Module
Physical Interface: RJ45, 10BASE-T / 100BASE-TX
Transmission Rate: 10/100 Mbit/s, auto-recognition
Protocols Supported: EtherNet/IP, Modbus TCP, DHCP/BootP, SNMP, CIP implicit & explicit messaging, FDR server, SOAP/XML web services
Maximum Connections: 128
Web Server: Transparent Ready, Class B30 (Data Editor + Rack Viewer)
Local Signaling:

• NET Status – Green/Red

• RUN – Green

• ERR – Red

• MOD Status – Green/Red

• ACT – Amber

• STS – Amber
  Power Supply: 400 mA at 5 VDC (from rack power supply)
  Protection Rating: IP20
  Operating Temperature: 0…60 °C
  Relative Humidity: 10–95% non-condensing at 60 °C
  Certifications: CE, UL508, CSA C22.2 No.142, cUL, ODVA
  Weight: 0.34 kg

Applications & System Integration

The TSXETC101 is used most frequently in industrial Ethernet networks requiring high reliability and deterministic performance. It integrates smoothly into process automation, machine control, and SCADA infrastructures in utilities, food processing, automotive, metals, water treatment, and logistics. Therefore, users benefit from reduced configuration time, scalable I/O connections, and real-time diagnostic visibility during commissioning and operation.

Support & Product Lifecycle Notes

The module was discontinued on December 2, 2020, and remains serviceable until December 31, 2026. Spare availability and field-repair support ensure long product lifecycle continuity for existing installations. Maintenance teams typically retain the TSXETC101 as a drop-in replacement in legacy Modicon Premium systems without requiring program modifications.

FAQ

Q1: Can the TSXETC101 communicate with third-party industrial controllers?
Yes, it supports open Ethernet standards such as EtherNet/IP and Modbus TCP, enabling integration with devices from multiple manufacturers.

Q2: Is additional software required for diagnostics?
No, the built-in web server provides real-time monitoring and configuration using a standard web browser.

Q3: What is the maximum number of Ethernet connections supported?
The module supports up to 128 simultaneous connections.

Q4: Is firmware or programming compatibility restricted to specific versions?
Unity Pro version 5.0 or later is required for full compatibility.
