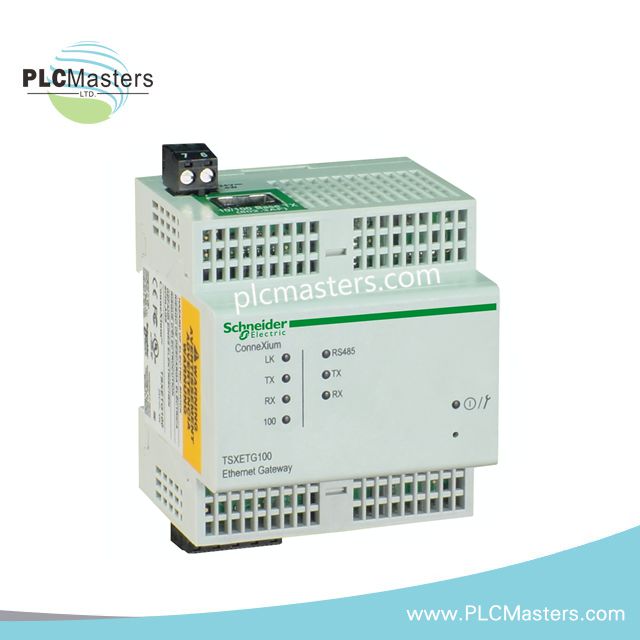

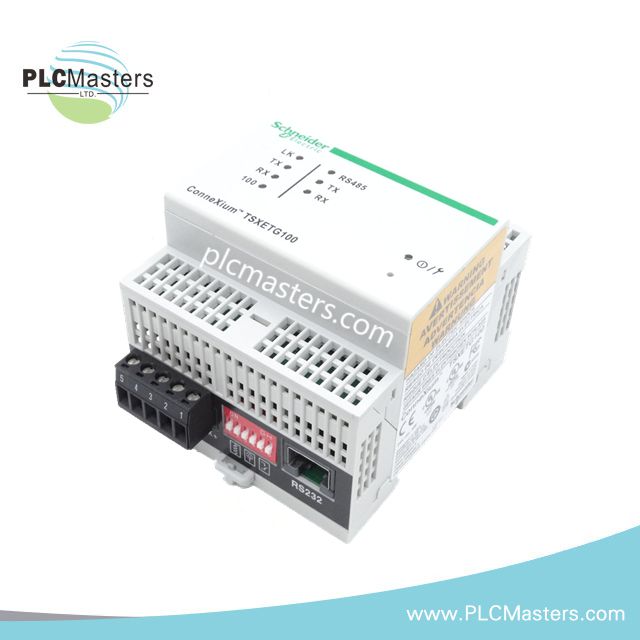

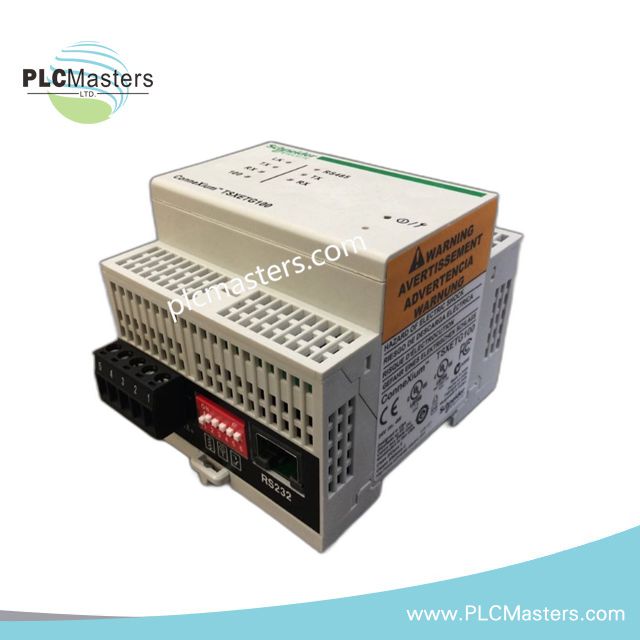

Schneider Electric TSXETG100 Ethernet Modbus Gateway

Overview

The Schneider Electric TSXETG100 is a versatile Ethernet Modbus gateway designed for TSX Micro PLC systems, delivering reliable and secure communication in industrial environments. It operates with a 24 V DC supply and supports both Ethernet and serial protocols, enabling seamless integration across multiple devices. Moreover, its built-in web server provides easy monitoring and configuration, ensuring efficient network management. This module facilitates industrial automation projects by connecting Modbus devices while maintaining data integrity and performance.

Key Features and Benefits

• Supports Modbus TCP/IP, HTTP, FTP, SNMP, and ARP protocols for flexible Ethernet connectivity.

• Enables serial communication via Modbus RTU and ASCII over RS485 and RS232, supporting multiple device types.

• Integrated LEDs indicate real-time network activity and serial link status for easy troubleshooting.

• Miniature firewall with IP filtering and password protection enhances system security.

• Compact DIN rail mounting allows convenient installation in control panels.

• Web server provides direct access to device diagnostics and connected product registers.

Technical Specifications

• Manufacturer: Schneider Electric

• Product Line: TSX Micro PLCs

• Part Number: TSXETG100

• Rated Supply Voltage: 24 V DC

• Ethernet Protocols Supported: Modbus TCP/IP, HTTP, FTP, SNMP, ARP

• Serial Protocols: Modbus RTU and ASCII

• Ethernet Connection: RJ45 10/100 Mbps

• Serial Link Connections: RS485 (57.6 kbps), RS232 (38.4 kbps)

• Max Devices on Serial Link: 32

• Mounting Support: Symmetrical DIN rail

• Local Signaling: 3 LEDs for serial communication, 4 LEDs for Ethernet communication

• Operating Temperature: 32–140 °F (0–60 °C)

• Relative Humidity: 5–95% at 104 °F (40 °C) without condensation

• IP Protection Degree: IP30

• Dimensions: Width 2.8 in (72 mm), Height 3.2 in (81 mm), Depth 3.0 in (76 mm)

Typical Applications

• Connecting TSX Micro PLCs to Modbus-compatible devices for seamless automation.

• Industrial Ethernet networks requiring simultaneous serial and TCP/IP communication.

• Remote monitoring and management of industrial equipment via web interface.

• Secure data transmission with integrated firewall and IP filtering features.

FAQ

Q: What Ethernet protocols does TSXETG100 support?
A: It supports Modbus TCP/IP, HTTP, FTP, SNMP, and ARP for versatile network communication.

Q: How many devices can be connected via the serial link?
A: The module supports up to 32 devices on the Modbus RS485 serial link.

Q: Can I monitor connected devices through a web interface?
A: Yes, the TSXETG100 has a built-in web server for diagnostics and device management.

Q: What are the mounting options for this module?
A: It is designed for symmetrical DIN rail mounting, allowing secure installation in control cabinets.

Q: Is the module suitable for harsh industrial environments?
A: Yes, it operates between 32–140 °F with 5–95% humidity and features IP30 protection.
