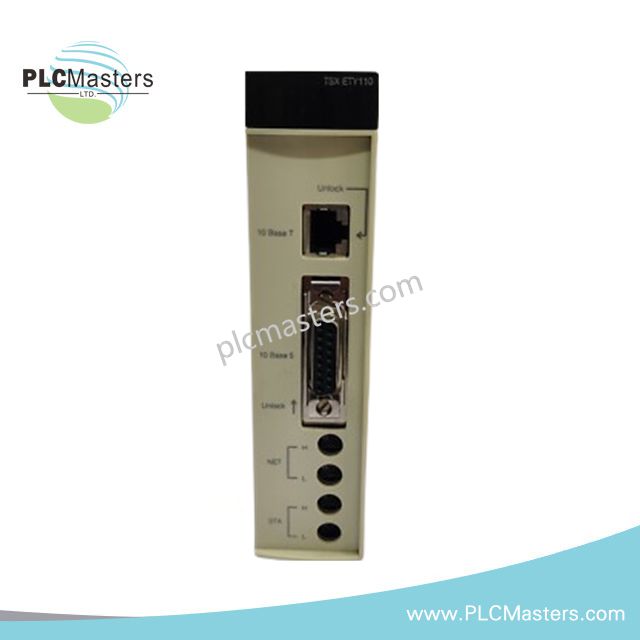

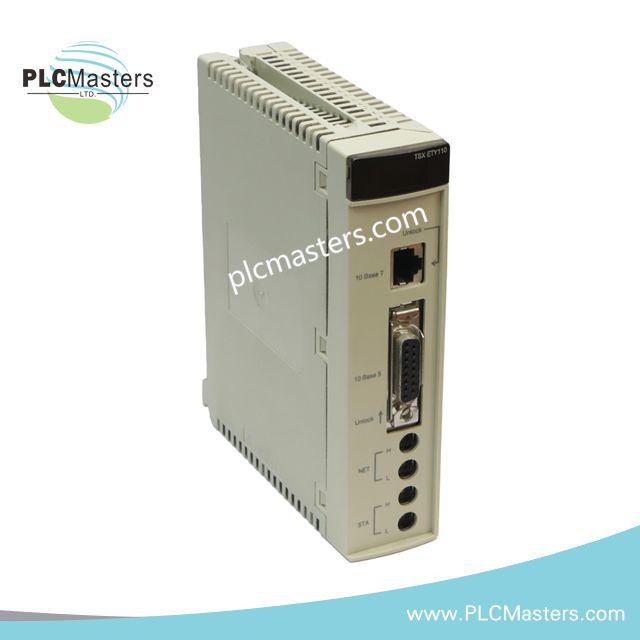

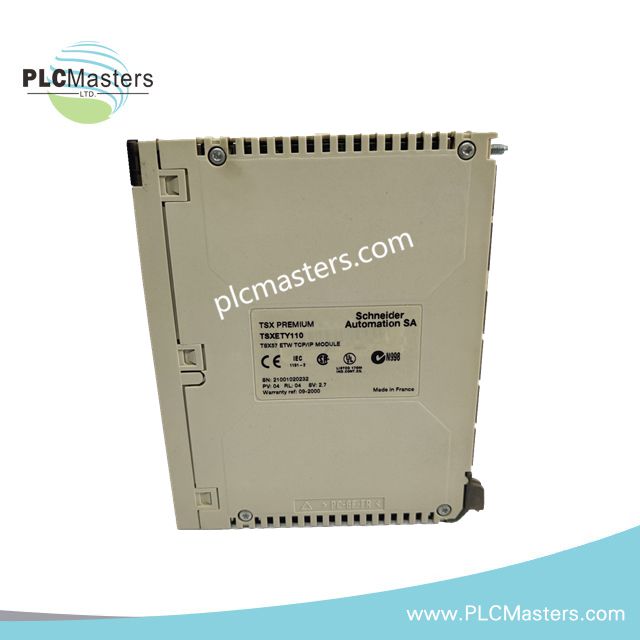

Schneider Electric TSXETY110 Micro Communication Module

Product Description

The Schneider Electric TSXETY110 is a high-performance micro communication module engineered for seamless integration into industrial automation systems. Designed for the Modicon Premium platform, it delivers reliable Ethernet TCP/IP connectivity, enabling robust data exchange and precise control across complex networks. Moreover, its compact, DIN rail-mountable form factor ensures flexible installation in diverse control cabinets.

This module supports multiple industrial protocols including Modbus TCP, Ethway/X-Way, Uni-Telway, and TCP/IP open messaging, making it ideal for heterogeneous network environments. In addition, the embedded transparent Class D10 web server with FactoryCast features allows engineers to monitor, configure, and visualize data effectively. Local LED indicators provide clear real-time status on collisions, network activity, and port errors, which helps maintain continuous operational oversight.

The TSXETY110 is built for demanding conditions, operating reliably within 0°C to 60°C, and storing safely between -25°C and 70°C. Its IP20-rated enclosure protects internal components, while certifications including CE, UL 508, CSA 1010-1, and EN 61131-2 confirm adherence to global industrial safety and quality standards.

Key Features

• TCP/IP communication with 10 Mbit/s Ethernet speed for stable network performance

• Supports Modbus TCP, Ethway/X-Way, Uni-Telway, TCP/IP open messaging, and SNMP agent

• Transparent Class D10 web server with FactoryCast features for monitoring and configuration

• Local LEDs for network status, activity, port errors, and collision detection

• DIN rail-mountable design for easy integration into control cabinets

• Up to 64 simultaneous connections for multi-node industrial networks

• Low power consumption: 800–1200 mA at 5 VDC depending on interface

Technical Specifications

• Manufacturer: Schneider Electric

• Product Line: Modicon Premium

• Part Number: TSXETY110

• Product Type: Micro Communication Module

• Weight: 0.37 kg

• Power Consumption: 800 mA (AUI), 1200 mA (RJ45)

• Input Voltage: 5 VDC

• Mounting Type: DIN rail

• Ethernet Speed: 10 Mbit/s

• Physical Interfaces: RJ45 (10BASE-T), AUI (100BASE-5)

• Protocols Supported: Modbus TCP, Ethway/X-Way, Uni-Telway, TCP/IP open messaging, SNMP agent

• Web Server: Transparent Ready Class D10 with FactoryCast features (up to 1.4 MB custom pages)

• Max Connections: 64 simultaneous

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -25°C to 70°C

• Relative Humidity: 10–95% non-condensing at 60°C

• Protection Rating: IP20

Typical Applications

• Integration into industrial automation networks for Modicon Premium PLCs

• Multi-protocol industrial Ethernet networks supporting Modbus TCP and Uni-Telway

• Monitoring and controlling distributed field devices with real-time data visualization

• Factory automation, process control, and SCADA network expansions

• Environments requiring reliable connectivity, temperature stability, and regulatory compliance

FAQ

Q1: What industrial protocols does the TSXETY110 support?
A1: It supports Modbus TCP, Ethway/X-Way, Uni-Telway, TCP/IP open messaging, and SNMP agent for versatile network communication.

Q2: How many simultaneous connections can this module handle?
A2: The TSXETY110 can support up to 64 simultaneous Ethernet connections for multiple network nodes.

Q3: Is the module suitable for harsh industrial environments?
A3: Yes, it operates reliably between 0°C and 60°C, stores safely between -25°C and 70°C, and has IP20 protection.

Q4: How is the module mounted?
A4: The module is designed for easy DIN rail mounting, enabling secure and flexible installation in control cabinets.

Q5: Does it include a web server for monitoring and configuration?
A5: Yes, it features a transparent Class D10 web server with FactoryCast support, allowing up to 1.4 MB of custom web pages.
