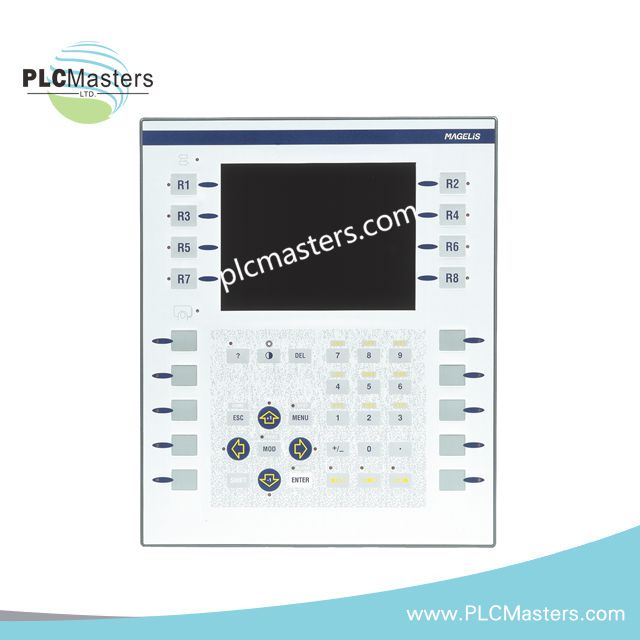

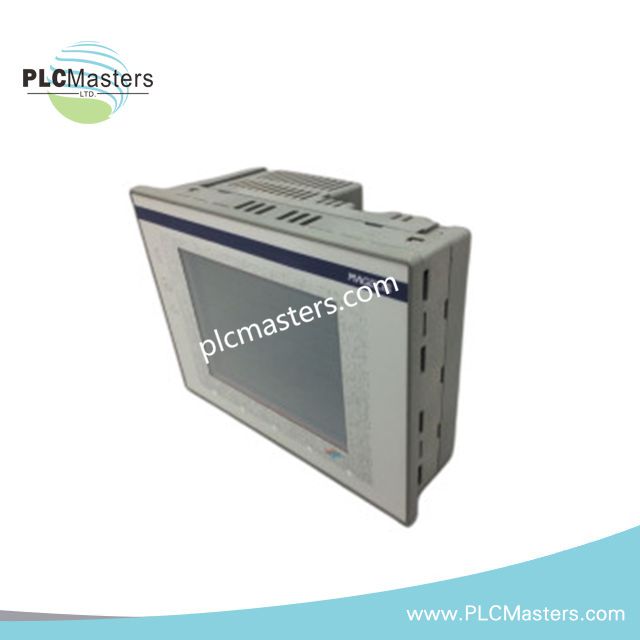

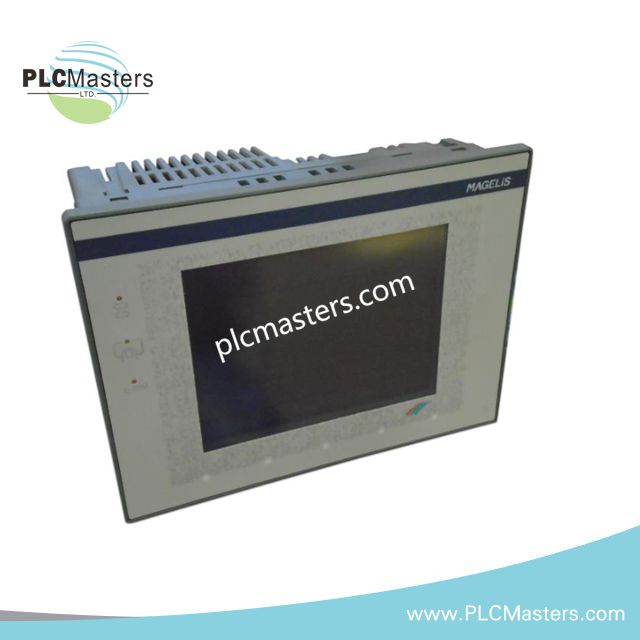

Schneider Electric XBTF032310 Operator Interface Terminal
$215.00
$326.00
Description
Product Description
The Schneider Electric XBTF032310 is a high-performance Magelis operator interface terminal, designed for intuitive control of industrial automation systems. Its 5.75-inch color touchscreen allows operators to monitor and manage processes efficiently, ensuring precise control over Modicon PLC operations. Moreover, the terminal integrates seamlessly into existing automation setups, reducing system downtime and improving operational efficiency.
Equipped with a Type III PCMCIA slot, the terminal supports flexible communication options, enabling connection to various network modules. In addition, the device consumes only 35 W of power and operates reliably at 24 VDC, making it suitable for continuous industrial use. The touchscreen interface simplifies interaction, eliminating the need for external keypads while providing responsive control.
Operators benefit from clear visual feedback through built-in indicator lights, and programming is performed via the XBT-L1000 software platform. Furthermore, the terminal’s robust design ensures long-term reliability, even in demanding factory environments. For instance, it has been widely applied in manufacturing lines, process control systems, and assembly automation setups.
Key Features
-
5.75-inch color touchscreen display for intuitive operation
-
Type III PCMCIA slot for communication module expansion
-
Low power consumption of 35 W at 24 VDC
-
Built-in indicator lights for clear process feedback
-
Compatible with XBT-L1000 software for fast programming
-
Discontinued product with no direct replacement, ideal for legacy systems
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Magelis |
| Model Number | XBTF032310 |
| Display Type | Color touchscreen |
| Screen Size | 5.75 inches diagonal |
| Power Supply | 24 VDC |
| Power Consumption | 35 W |
| Communication Slot | Type III PCMCIA |
| Keypad | None |
| Touchscreen | Yes |
| Programming Software | XBT-L1000 |
| Indicators | Built-in indicator lights |
| Application | Operator interface for Modicon PLCs |
| Weight | 4.03 lbs |
Typical Applications
-
Monitoring and control of Modicon PLC-based industrial processes
-
Factory automation lines requiring touchscreen operation
-
Assembly and manufacturing systems needing reliable operator feedback
-
Retrofitting or maintaining legacy automation setups without replacements
FAQ
Q: Is the XBTF032310 compatible with modern PLCs?
A: It is primarily designed for Modicon PLCs but can integrate with other systems using compatible communication modules.
Q: What software is used to program this terminal?
A: The XBTF032310 is programmed using Schneider Electric’s XBT-L1000 software.
Q: Can the terminal operate continuously in industrial environments?
A: Yes, it operates reliably at 24 VDC with low power consumption, suitable for continuous industrial use.
Q: Is there a replacement for this discontinued model?
A: No direct replacement exists; the terminal is intended for legacy system maintenance.
