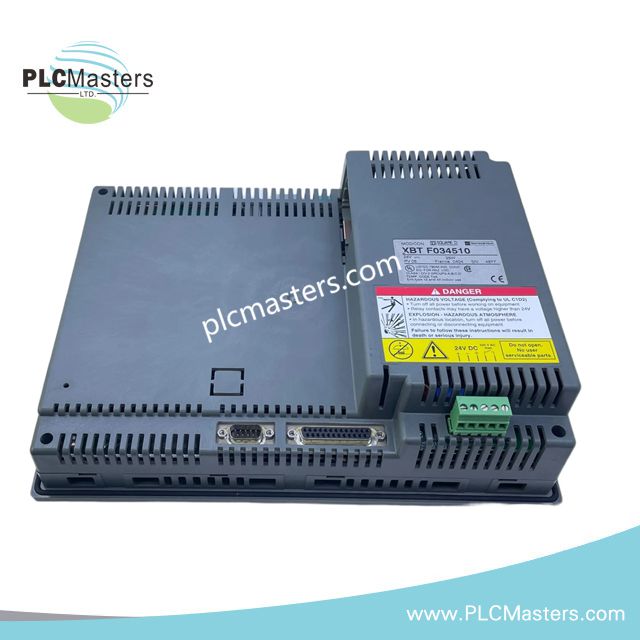

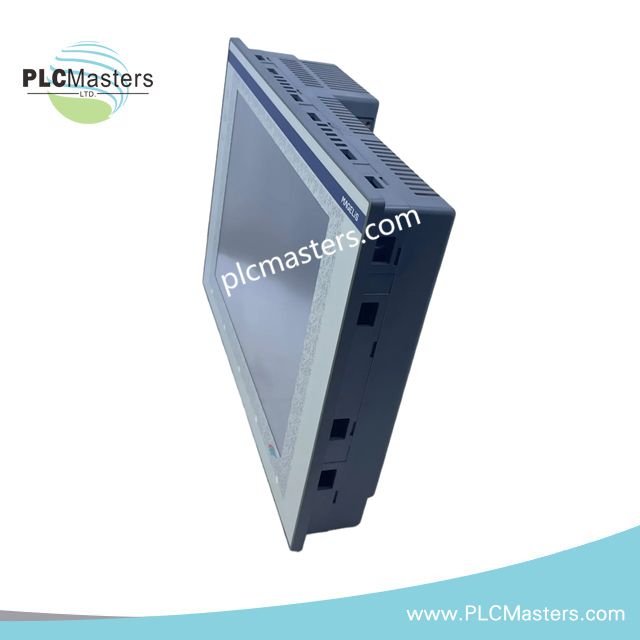

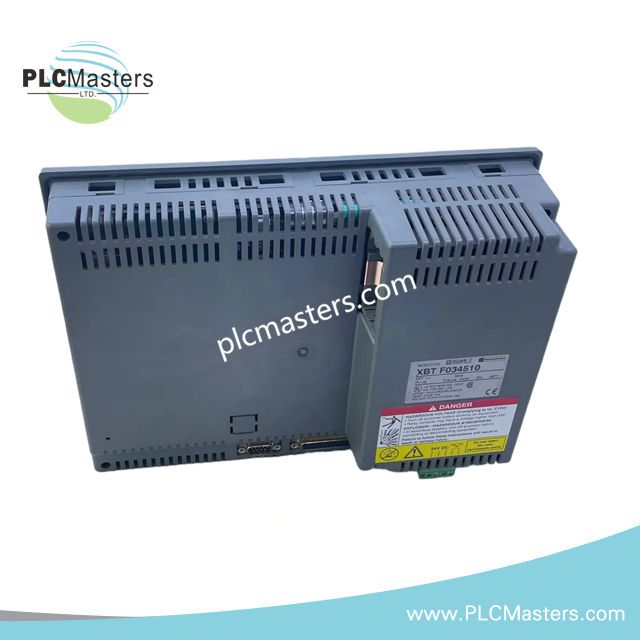

Schneider Electric XBTF034510 Operator Terminal
$215.00
$326.00
Description
Product Description
The Schneider Electric XBTF034510 is a Magelis operator terminal featuring a 10.4-inch color touchscreen, designed to enhance human-machine interaction in industrial environments. It provides intuitive control over Modicon PLCs and automation systems, allowing operators to monitor processes efficiently. Moreover, its robust IP65-rated enclosure ensures reliable operation even in harsh conditions, while the 35 W power consumption keeps energy use optimized.
This HMI supports seamless integration with industrial control networks, providing a user-friendly interface for real-time data visualization and command execution. In addition, the touchscreen input allows quick navigation of menus and interactive displays, reducing operator response time. The device also features 96 MB of memory for storing graphics, recipes, and system parameters, making it suitable for complex industrial applications.
Key Features
-
10.4-inch color touchscreen with VGA resolution (640 × 480 pixels) for clear visualization.
-
IP65-rated front panel for dust and water protection in harsh industrial environments.
-
Power supply 24 VDC (operational range 18–30 VDC) with 35 W power consumption.
-
96 MB internal memory for storing process graphics, recipes, and system configurations.
-
Compatible with XBT-L1000 programming software for flexible HMI design.
-
Discontinued product, previously replaced by XBTGT5330 + XBTZGCO3 for modern applications.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | XBTF034510 |
| Series | Magelis |
| Display Type | Color touchscreen LCD |
| Screen Size | 10.4 inches (264 mm) |
| Resolution | 640 × 480 pixels (VGA) |
| Memory | 96 MB |
| Keypad | No |
| Power Supply | 24 VDC (18–30 V range) |
| Power Consumption | 35 W |
| Operating Temperature | 0 to +45 °C (+32 to +113 °F) |
| Storage Temperature | -20 to +60 °C (-4 to +140 °F) |
| Relative Humidity | 0–85% non-condensing |
| Protection Rating | IP65 (IEC529) |
| Programming Software | XBT-L1000 |
| Weight | 5.25 lbs |
Typical Applications
-
Industrial automation systems requiring operator interaction for real-time monitoring.
-
Control panels for Modicon PLCs in manufacturing, process, and building automation.
-
Applications requiring robust, dust- and water-resistant HMIs for harsh environments.
-
Facilities needing easy-to-use touchscreen interfaces for rapid operator training.
FAQ
Q1: Is the XBTF034510 still available for purchase?
A1: The product was discontinued on September 5, 2022, and has no direct replacement.
Q2: What programming software is compatible with this HMI?
A2: The XBTF034510 uses XBT-L1000 software for HMI configuration and programming.
Q3: Can this HMI withstand harsh environmental conditions?
A3: Yes, the front panel is IP65 rated, protecting against dust and water ingress.
Q4: What PLCs are compatible with this terminal?
A4: It integrates seamlessly with Modicon PLCs, providing reliable operator interface control.
Q5: What is the power consumption of the device?
A5: The HMI operates at 24 VDC with a typical consumption of 35 W.
