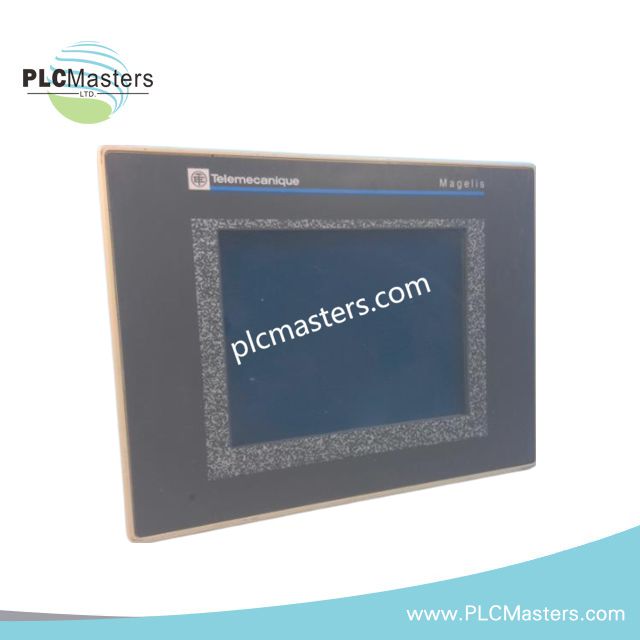

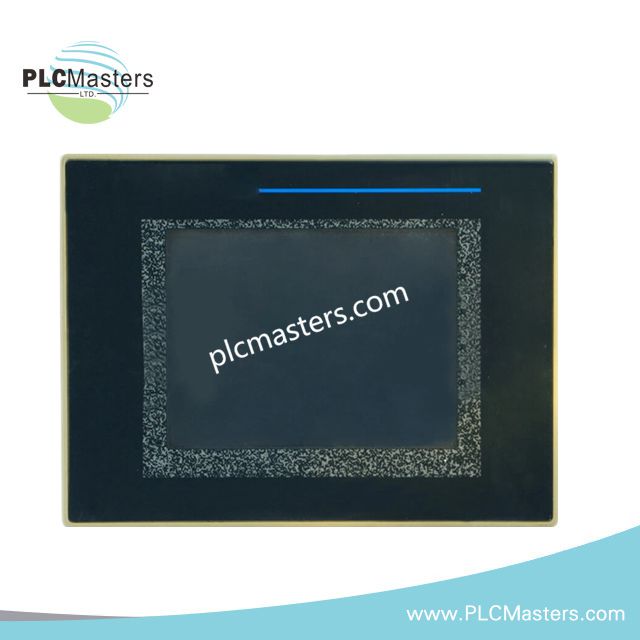

Schneider Electric XBTG2110 Operator Terminal

Description

The Schneider Electric XBTG2110 is a compact Magelis operator terminal designed for reliable operation in industrial automation environments. Its 5.7-inch STN LCD touchscreen provides clear visualization for machine interfaces and offers a practical balance between durability, usability, and system performance. The terminal supports multiple communication protocols, allowing seamless integration with PLCs and existing control architectures. Moreover, its robust construction ensures dependable operation in demanding factory conditions. Engineers often select this model when they need a stable HMI platform with long-term support for legacy systems.

Key Features

The XBTG2110 delivers intuitive machine access through a responsive resistive touchscreen that performs consistently in dusty or humid environments. In addition, the device offers flexible connectivity through RS232, RS422, RS485, and USB ports that simplify commissioning and long-term maintenance. Its onboard flash memory supports sizeable application storage, enabling complex graphical screens without compromising responsiveness. Therefore, users gain a balanced solution that handles essential operator tasks efficiently while maintaining low power consumption and strong environmental resistance.

Technical Specifications

Manufacturer: Schneider Electric
Product Line: Magelis
Product Type: Touchscreen Operator Terminal
Part Number: XBTG2110

Display

• Size: 5.7 inches

• Resolution: 320 × 240 pixels (QVGA)

• Technology: STN LCD

• Colors: Blue/white with 16 levels of gray

Memory

• 128 kB SRAM with lithium battery backup

• 16 MB flash EPROM for application storage

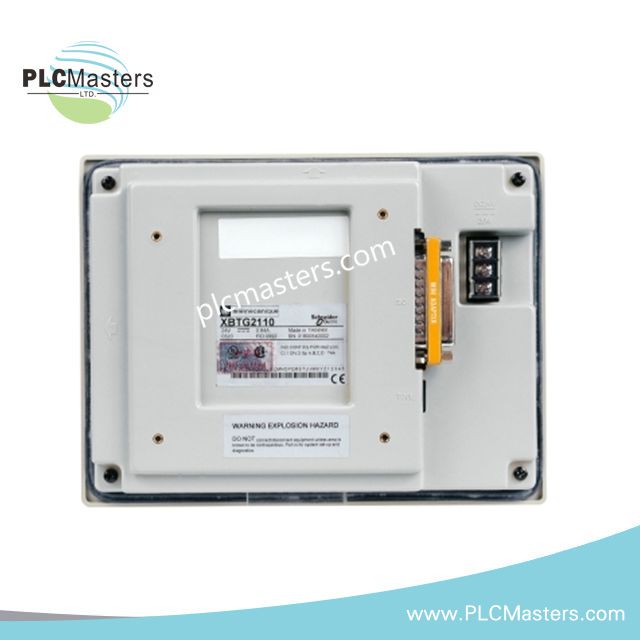

Communication

• COM1: SUB-D 9 male (RS232C / RS422 / RS485)

• COM2: RJ45 (RS485)

• USB Type-A master port (V1.1)

Power

• Supply Voltage: 24 VDC

• Voltage Limits: 19.2–28.8 V

• Inrush Current: 30 A

• Power Consumption: 18 W

Environmental

• Operating Temperature: 0°C to 50°C

• Storage Temperature: –20°C to 60°C

• Relative Humidity: 0–85% non-condensing

• Protection Rating: IP65 front panel / IP20 rear

Mechanical

• Mounting: Flush mounting

• Weight: 2.23 lbs

Typical Applications

The XBTG2110 is widely used in compact machinery, packaging lines, and process systems where reliable operator access is required. For instance, OEMs often deploy this HMI in production equipment with limited panel space, while maintenance teams favor it for straightforward diagnostics and intuitive navigation. Moreover, plants with existing Magelis installations continue to rely on the XBTG2110 as a stable interface that supports consistent operational workflows.

Support & Maintenance

Schneider Electric provides ongoing documentation and migration guidance for users maintaining legacy Magelis platforms. In addition, integrators can replace the XBTG2110 with Harmony GTO models using compatible software tools, ensuring long-term system continuity. Proper installation and periodic inspection of connectors and the backup battery contribute to reliable operation throughout the device’s service life.

FAQ

Q1: Is the XBTG2110 still available from Schneider Electric?
No, the model was discontinued in 2013 and replaced by the HMIGTO2300.

Q2: Can the XBTG2110 communicate with older Modicon PLCs?
Yes, its RS232, RS422, and RS485 ports allow integration with many Modicon controllers.

Q3: Does the unit support USB data transfer?
Yes, the USB Type-A master port supports peripheral connection and data handling.

Q4: Can this HMI operate in humid or dusty areas?
Yes, the IP65 front panel rating protects the screen from dust and water splashes.

Q5: Is it suitable for flush-mounted control panels?
Yes, the device is designed for standard flush mounting in industrial enclosures.
