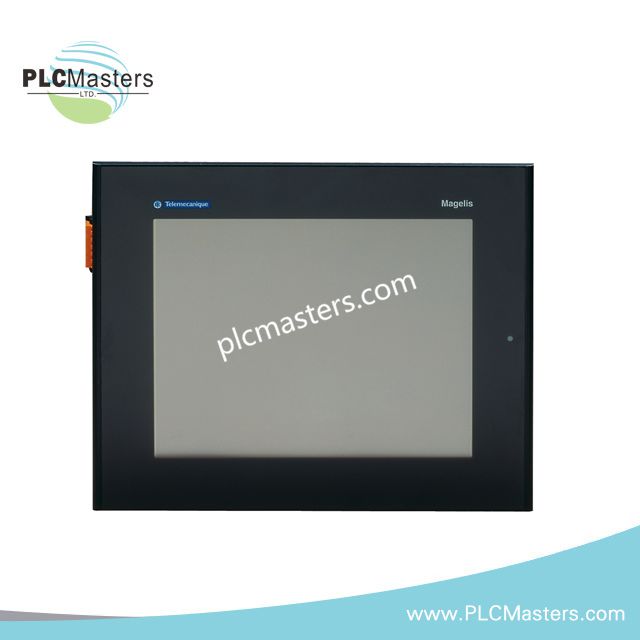

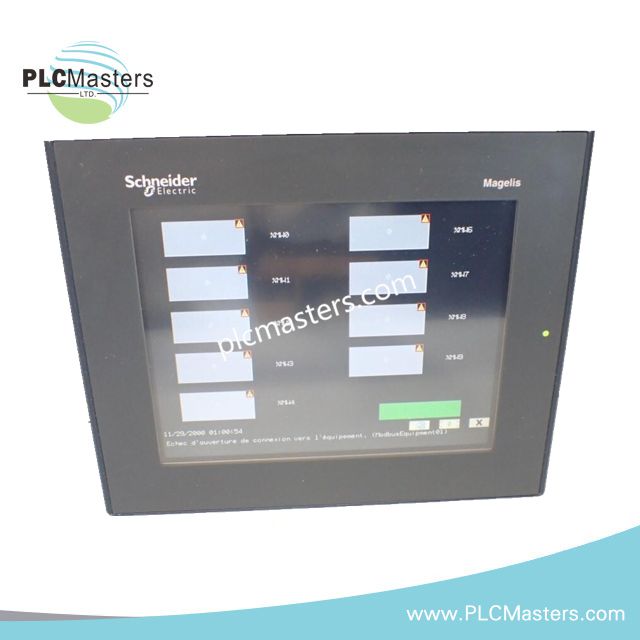

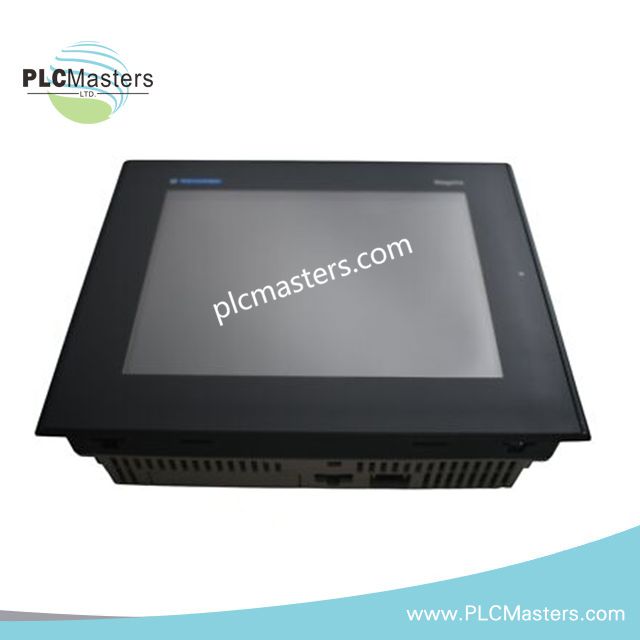

Schneider Electric XBTGT4340 Advanced Touchscreen Panel

Overview

The Schneider Electric XBTGT4340 is a robust 7.5-inch advanced touchscreen panel from the Harmony/Magelis series, designed for machine-level visualization and demanding industrial HMI applications. It delivers clear VGA graphics through a bright TFT LCD display, supporting 65,536 colors for precise data visualization on production lines. Engineers appreciate its fast RISC processor, broad protocol compatibility, and reliable 24 VDC operation, which ensure consistent performance in environments where uptime matters. Moreover, its extensive connectivity support simplifies integration with PLCs across multiple platforms.

Key Features

The XBTGT4340 offers fast response times and smooth screen transitions thanks to its 266 MHz CPU RISC processor. In addition, the analog touch panel provides accurate input, even when operators use gloves. Integrated Ethernet, serial links, USB, and composite video input allow the device to fit easily into both new and legacy systems. The HMI also includes a Compact Flash slot for data logging and application storage, making project updates straightforward. Therefore, the unit supports real-world industrial requirements where reliability, flexibility, and long-term availability are critical.

Technical Specifications

General Information

• Manufacturer: Schneider Electric

• Product Line: Harmony XBTGT / Magelis

• Product Type: Advanced Touchscreen HMI

• Part Number: XBTGT4340

• EAN: 3595863896893

Display

• Display Size: 7.5 inches

• Type: TFT LCD Backlit Color

• Resolution: 640 × 480 pixels (VGA)

• Color Support: 65,536 colors

• Touch Panel: Analog, 1024 × 1024 zones

• Brightness Levels: 8 steps

• Contrast Levels: 8 steps

• Backlight Life: 54,000 hours

Performance & Memory

• Processor: CPU RISC, 266 MHz

• Memory: 512 KB SRAM (battery-backed), 32 MB Flash EPROM

• Operating System: Harmony

• Software: Vijeo Designer

Power

• Supply Voltage: 24 VDC

• Operating Range: 19.2–28.8 VDC

• Power Consumption: 28 W

• Inrush Current: ≤ 30 A

Interfaces & Connectivity

• Serial:

• COM1: RS232C/RS422/RS485, Sub-D 9

• COM2: RS485, RJ45, Siemens MPI up to 187.5 kbit/s

• Ethernet: RJ45, 10BASE-T/100BASE-TX

• USB: Type-A V1.1 (host)

• Video Input: RCA composite (NTSC/PAL)

• Audio: Mini-jack input, screw terminal output

• Digital I/O: Screw terminal blocks

• Expansion: Compact Flash card (≥ 1 GB)

• Fieldbus Slot: DeviceNet or Profibus DP compatible cards

Mechanical & Environmental

• Mounting: Flush mounting with 4 clips or screw clamps

• Dimensions: 215 mm × 170 mm × 60 mm

• Cut-out: 204.5 × 159.5 mm

• Weight: 1.8 kg

• Protection: Front IP65 / NEMA 4X; Rear IP20

• Operating Temperature: 0–50 °C

• Storage Temperature: –20–60 °C

• Humidity: 10–90% non-condensing

• Vibration: 1 gn (9–150 Hz) and 3.5 mm (5–9 Hz)

• Shock Resistance: 15 gn

• Certifications: CE, UL, cULus, CSA, ATEX Zone 2/22

Typical Applications

This HMI fits well in mid-level machinery where operators need clear visualization of process parameters and real-time alarms. For instance, food processing equipment benefits from its bright display and glove-friendly touch panel. In addition, machine builders use it for packaging, material handling, and OEM control panels requiring robust protocol support. Therefore, the XBTGT4340 serves diverse industries that depend on stable communication with Modicon, Mitsubishi, Siemens, or Rockwell PLCs.

Support & Maintenance

The product reached discontinuation in 2015 and will remain serviceable until 2025, which allows users to maintain long-running installations with confidence. Moreover, replacement backlight components, Compact Flash updates, and communication cards remain accessible. Routine inspection of the front seal and periodic backup of application files help extend the device’s lifetime in demanding environments.

FAQ

Q1: Which software is used to configure the XBTGT4340?
It is configured using Schneider Electric Vijeo Designer, which supports full screen-based projects and communication settings.

Q2: Can this HMI connect to non-Modicon PLCs?
Yes, it supports several third-party protocols including Siemens, Mitsubishi, Omron, and Allen-Bradley.

Q3: Is the device suitable for harsh industrial environments?
The front panel meets IP65 and NEMA 4X ratings, making it suitable for wash-down and dusty areas.

Q4: Does the unit support data logging?
Yes, the Compact Flash slot allows storage of logs, recipes, and historical data.
