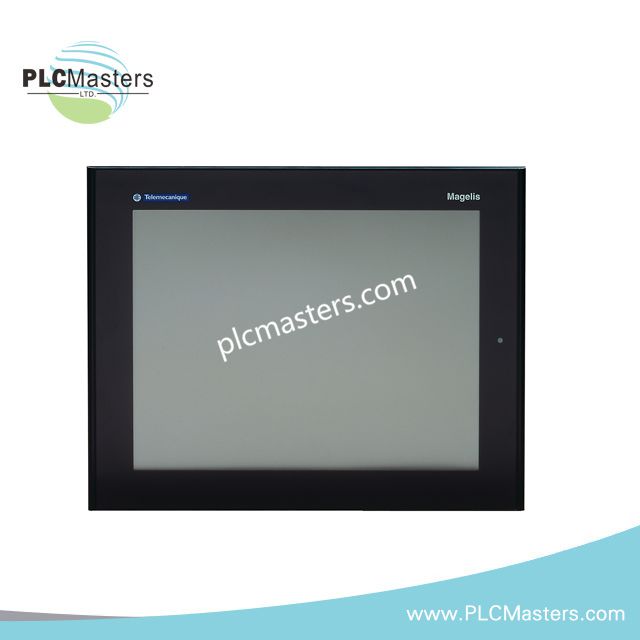

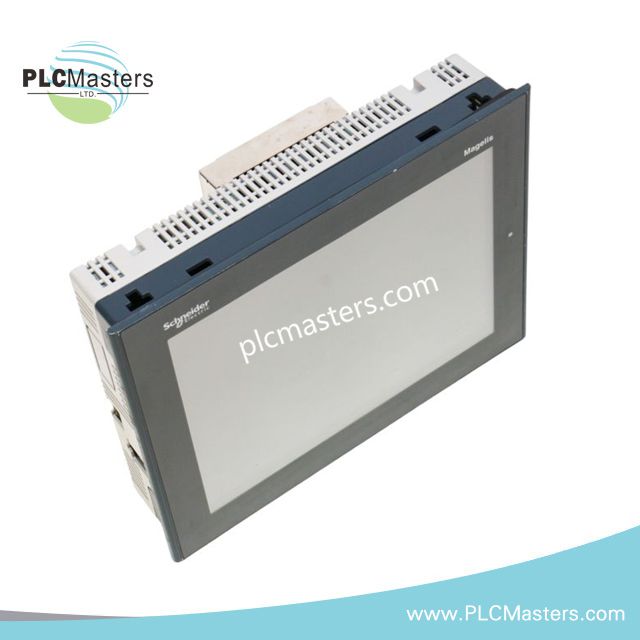

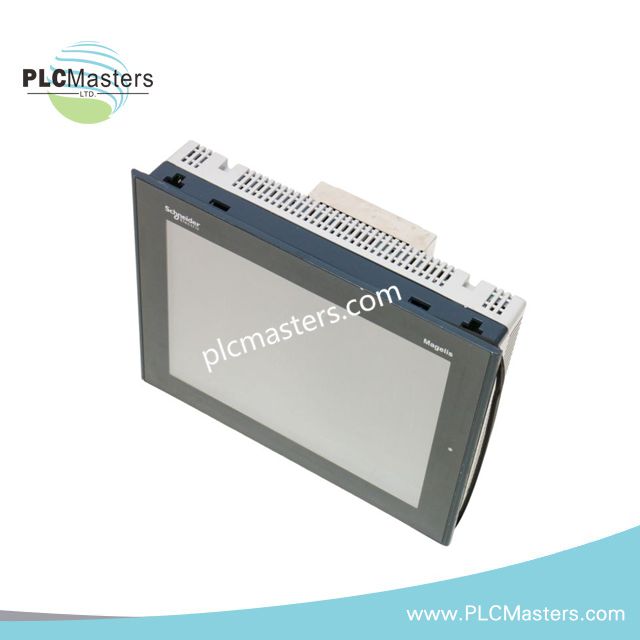

Schneider Electric XBTGT5330 Advanced Touchscreen Panel

Overview

The Schneider Electric XBTGT5330 is an advanced touchscreen operator terminal designed for demanding industrial automation environments. Its 10.4-inch TFT color display delivers clear VGA graphics that support complex HMI applications with stable 24 VDC operation. The unit integrates Ethernet, serial communication, and fieldbus expandability, which makes it a reliable interface for both new automation projects and legacy system upgrades. Moreover, its long product lifecycle and broad protocol support help engineers maintain consistent performance across diverse control architectures.

Key Features and Functional Highlights

The XBTGT5330 provides a responsive analog touchscreen with 1024 × 1024 resolution for precise operator input. In addition, its 266 MHz RISC processor and 32 MB flash memory ensure smooth navigation across multi-page HMI projects. The device supports Vijeo Designer software, offering intuitive configuration for screen objects, alarms, recipes, and communication settings. Moreover, built-in Ethernet and serial ports allow seamless integration with Modicon PLCs and third-party controllers. Its certified IP65 front panel and ATEX Class 1 Division 2 ratings enhance reliability in harsh industrial environments.

Technical Specifications

General Information

• Manufacturer: Schneider Electric

• Product Line: Magelis / Harmony XBTGT

• Part Number: XBTGT5330

• EAN: 3595863885743

• Product Type: Advanced Touchscreen Panel

• Status: Discontinued 31 Dec 2015; End-of-Service 31 Dec 2025

Display & Interface

• Screen Size: 10.4 in / 246 mm

• Screen Type: TFT LCD with backlight

• Resolution: 640 × 480 pixels VGA

• Colors: 65,536

• Touch Technology: Analog, 1024 × 1024 zones

• Keypad: None

• Brightness: 8 levels

• Contrast: 8 levels

• Backlight Life: 54,000 hours

Performance & Memory

• Processor: 266 MHz RISC

• Flash Memory: 32 MB

• SRAM Backup: 512 KB with lithium battery

• Real-Time Clock: Built-in

Communication Ports

• Ethernet: 10BASE-T/100BASE-TX

• Serial COM1: RS232C / RS422 / RS485 (≤115.2 kbit/s)

• Serial COM2: RS485, Siemens MPI compatible (≤187.5 kbit/s)

• USB: 2× USB Type A (V1.1)

• Digital I/O: 3 digital outputs, digital input, audio output

• Expansion Slot: 1 fieldbus card (DeviceNet, Profibus DP)

• Data Storage: CompactFlash ≥ 1 GB

Electrical Characteristics

• Supply Voltage: 24 VDC

• Operating Limits: 19.2…28.8 V

• Inrush Current: 30 A

• Power Consumption: 30 W

Mechanical & Environmental

• Mounting: Flush mounting with screw clamps or spring clips

• Cut-out: 259 × 201 mm

• Dimensions (W × H × D): 270.5 × 212.5 × 57 mm

• Weight: 2.5 kg

• Protection: IP65 front panel, IP20 rear

• Standards: UL 508, CSA, ATEX Zone 2/22

• Operating Temperature: 0…50°C

• Storage Temperature: –20…60°C

• Humidity: 10–90% non-condensing

Applications and Integration

This model is widely used in process machinery, packaging lines, material handling systems, and energy management applications. For instance, its flexible communication capability allows seamless integration with PLC networks where mixed communication standards exist. Moreover, its robust environmental ratings make it ideal for manufacturing plants requiring reliable operator interfaces that withstand vibration, fluctuating temperatures, and electrical noise.

Support, Maintenance, and Replacement Path

Although discontinued, the XBTGT5330 remains serviceable until the end of 2025. Schneider Electric recommends migrating to the HMIDT542 with HMIG3U or the HMIGTO5310 for long-term system continuity. These replacements provide higher performance without altering existing panel cut-outs, which simplifies upgrade planning and reduces downtime during modernization work.

FAQ

Q1: Is the XBTGT5330 still supported by Schneider Electric?
Yes, the product remains supported until 31 December 2025, although it is officially discontinued.

Q2: Can I reuse the existing panel cut-out when replacing this model?
Yes, recommended replacements maintain similar mechanical dimensions for easier retrofit planning.

Q3: Which software is used to configure this HMI?
The terminal uses Vijeo Designer software for project development, communication setup, and graphics creation.

Q4: Does the device support Ethernet-based communication with PLCs?
Yes, the integrated Ethernet port supports Modbus TCP and third-party communication protocols.

Q5: What type of storage media is compatible with this terminal?
It accepts CompactFlash cards of 1 GB or greater for data logging, recipes, and application backup.
